The Hager BG113 bar/cable-through current transformer 125/5 A, 2.5 VA, Class 1 provides precise measurement for metering and protection. Plug-in design with 20×29.5 mm window for busbars or cables; 1.5-6 mm² terminals. DIN rail or plate mounting. 50-60 Hz, 3 kV withstand, up to 720 V, FS5. Robust: Ith 60×Ipr, Idyn 2.5×Ith, 1.2×Ipr continuous. Operates −40 to 40 °C. Compact 70×49.5×30 mm.

EAN

4049857139323

Packaging

1 Piece

Plug-in Current Transformer Bar/Cable-through 200/5A 2.5VA Class 1 BG113 SRA01255

Accessories
Technical properties
Environmental value
Documentations
More products

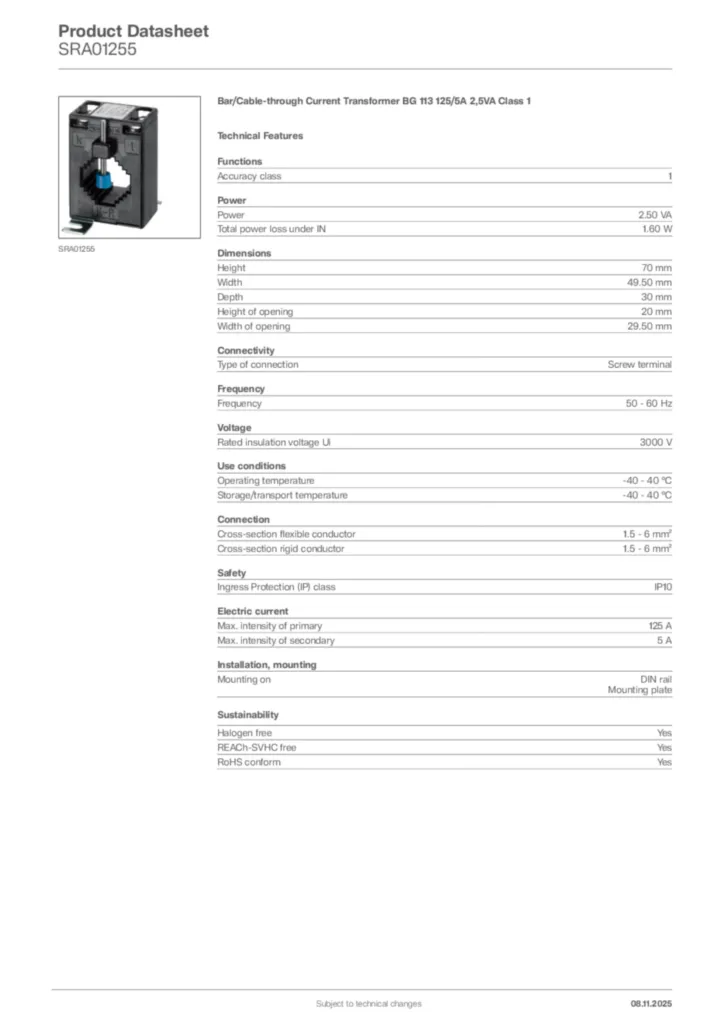

Download the data sheet

Complete your system

DIN rail adapter 1 products available

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

2.50 VA
Total power loss under IN

1.60 W

Height

70 mm
Width

49.50 mm
Depth

30 mm
Height of opening

20 mm
Width of opening

29.50 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

125 A
Rated secondary current (Isr)

5 A
Rated current

125 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
