The Hager BG814 bar/cable-through current transformer provides Class 1 accuracy for measurement and protection at 1250/5 A, 15 VA. A 60 mm window fits bars or cables; plug-in design and screw terminals enable fast DIN rail or plate mounting. Rated 50-60 Hz, 3 kV withstand, 720 V max, FS5. With Ith 60×Ipr, Idyn 2.5×Ith, and 1.2×Ipr continuous rating, it ensures reliable switchboard monitoring from -40 to 40 °C.

EAN

4049857139415

Packaging

1 Piece

Plug-in Bar/Cable-through CT 1600/5A 15VA Class 1 BG814 SRE12505

Technical properties
Environmental value
Documentations
More products

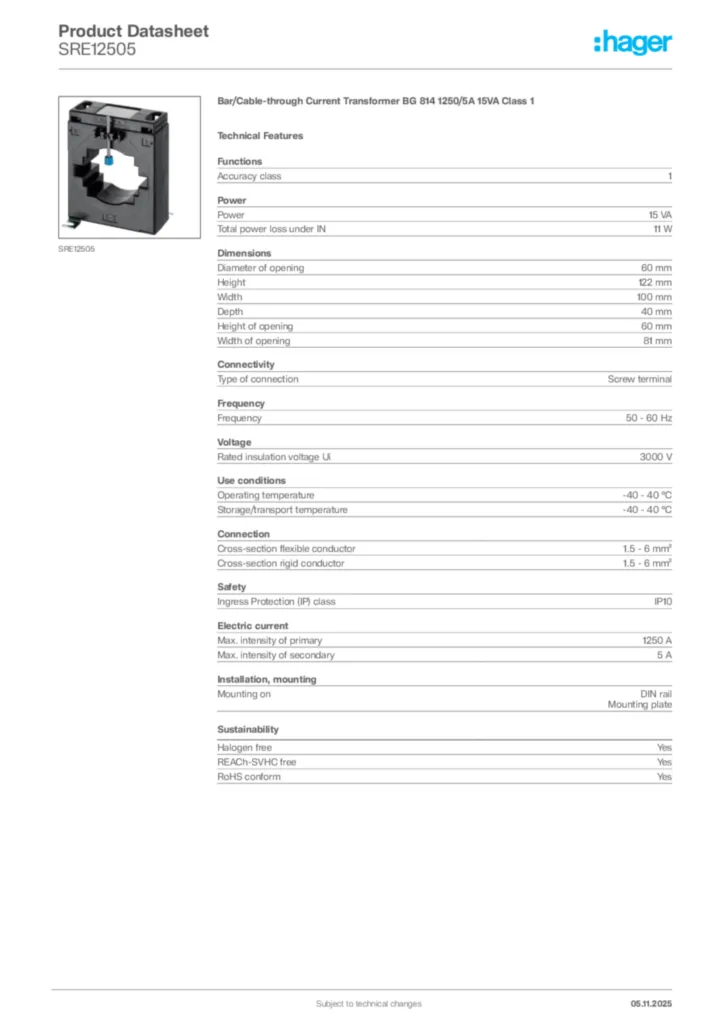

Download the data sheet

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

15 VA
Total power loss under IN

11 W

Diameter of opening

60 mm
Height

122 mm
Width

100 mm
Depth

40 mm
Height of opening

60 mm
Width of opening

81 mm

Type of connection

Screw terminal

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

1250 A
Rated secondary current (Isr)

5 A
Rated current

1250 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate
