The Hager BG 1034 bar/cable-through current transformer provides Class 1 accuracy for protection and metering, 1250/5 A, 15 VA, 50-60 Hz. Large 85×101 mm window for busbars/cables; plug-in with 1.5-6 mm² wiring, DIN rail or plate mounting. Rated 1.2×Ipr continuous, 60×Ipr/1s, Idyn 2.5×Ith, FS5. With 3 kV insulation, up to 720 V, Class F, IP10, -40…40 °C, it’s ideal for switchboards and distribution panels.

EAN

4049857139446

VPE

1 piece

Current Transformer Bar/Cable-through 1600/5A 30VA Class 1 Plug-in BG1034 SRF12505

Technical characteristics
catalog.pageproduct.title_sustainability.h2

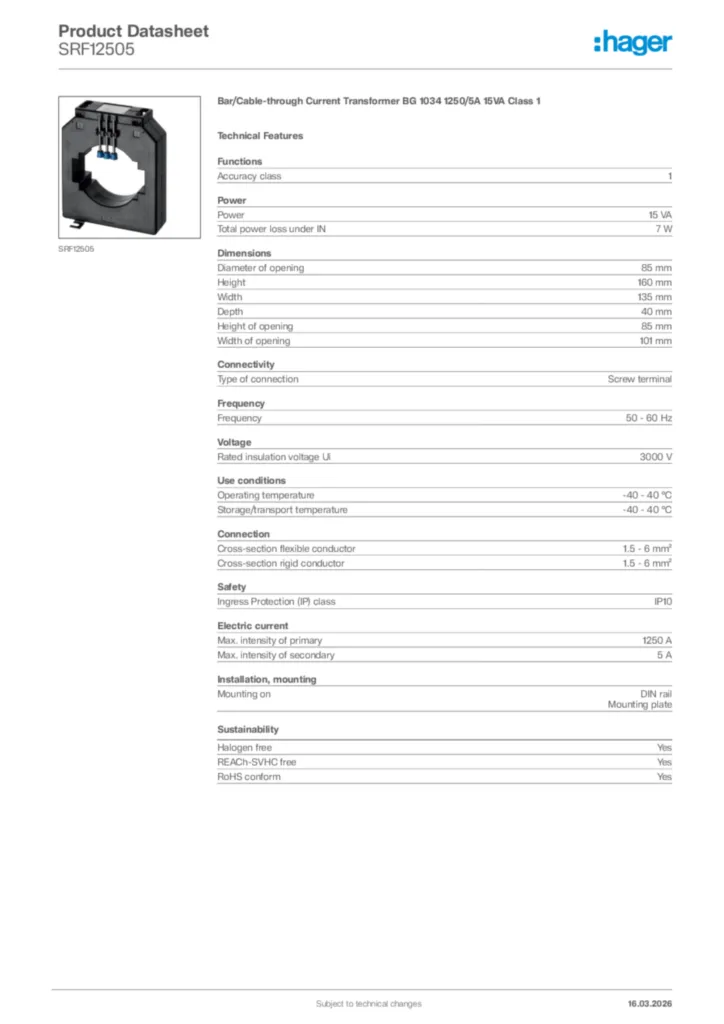

Documentations
More products

Technical characteristics

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

15 VA
Power dissipation at IN

7 W

Diameter of opening

85 mm
Height

160 mm
Width

135 mm
Depth

40 mm
Height of opening

85 mm
Width of opening

101 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

F

Rated primary current (Ipr)

1250 A
Rated secondary current (Isr)

5 A
Rated current IN

1250 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
