The Hager BG1034 bar/cable-through current transformer 2500/5 A, 30 VA, Class 1 provides precise metering and protection for high‑current feeders. Plug‑in with 85×101 mm window for busbars/cables; DIN rail or plate mounting. 50-60 Hz, 3 kV withstand, 720 V max. Ith 60×Ipr, Idyn 2.5×Ith, FS5. Wire terminations 1.5-6 mm². IP10, Class H insulation. Operating −40 to +40 °C. Continuous 1.2×Ipr.

EAN

4049857139477

Packaging

1 Piece

Plug-in Bar/Cable-through CT 3000/5A 15VA Class 1 50-60Hz IP10 SRF25005

Technical properties
Environmental value
Documentations
More products

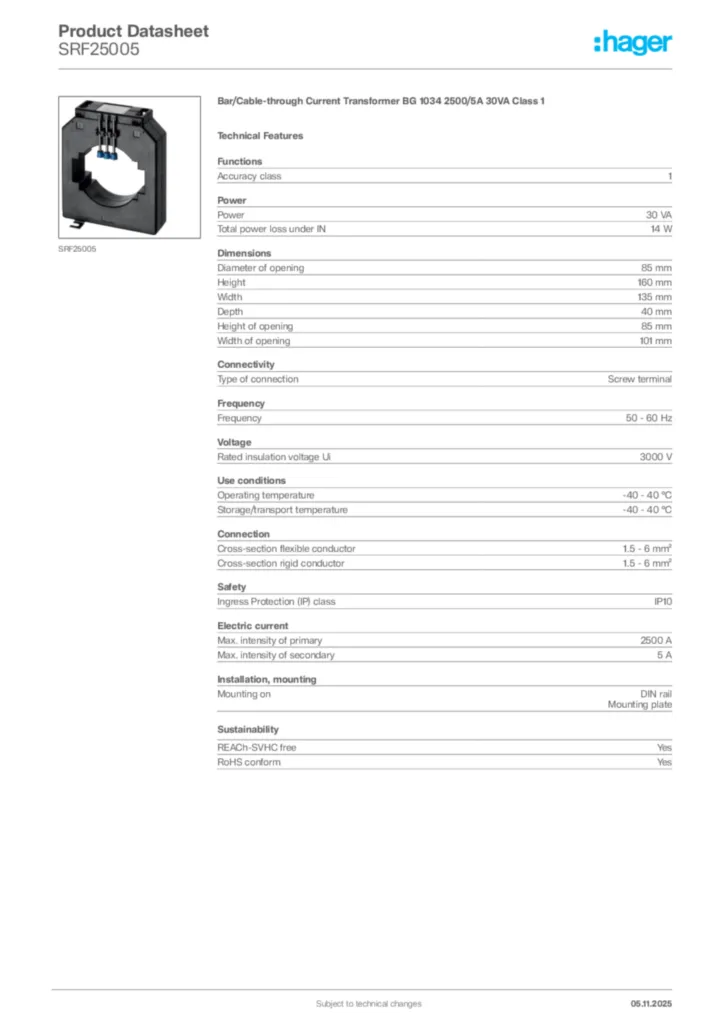

Download the data sheet

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

30 VA
Total power loss under IN

14 W

Diameter of opening

85 mm
Height

160 mm
Width

135 mm
Depth

40 mm
Height of opening

85 mm
Width of opening

101 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

H

Rated primary current (Ipr)

2500 A
Rated secondary current (Isr)

5 A
Rated current

2500 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
