Hager BG613 bar/cable-through current transformer 1000/5 A, 5 VA, Class 1 for accurate metering/protection in LV panels. Plug-in with wire connection 1.5-6 mm², 45×65 mm window, DIN rail or plate mounting. 50-60 Hz, 3 kV withstand, 720 V max, IP10. Rated Ith 60×Ipr/1 s, Idyn 2.5×Ith, continuous 1.2×Ipr, FS5. Operates -40 to 40 °C. Compact 108×85×30 mm.

EAN

4049857139392

Packaging

1 Piece

Plug-in bar/cable CT BG413 300/5A 5VA Class 1 28x40mm window DIN-rail SRD10005

Accessories
Technical properties
Environmental value
Documentations
More products

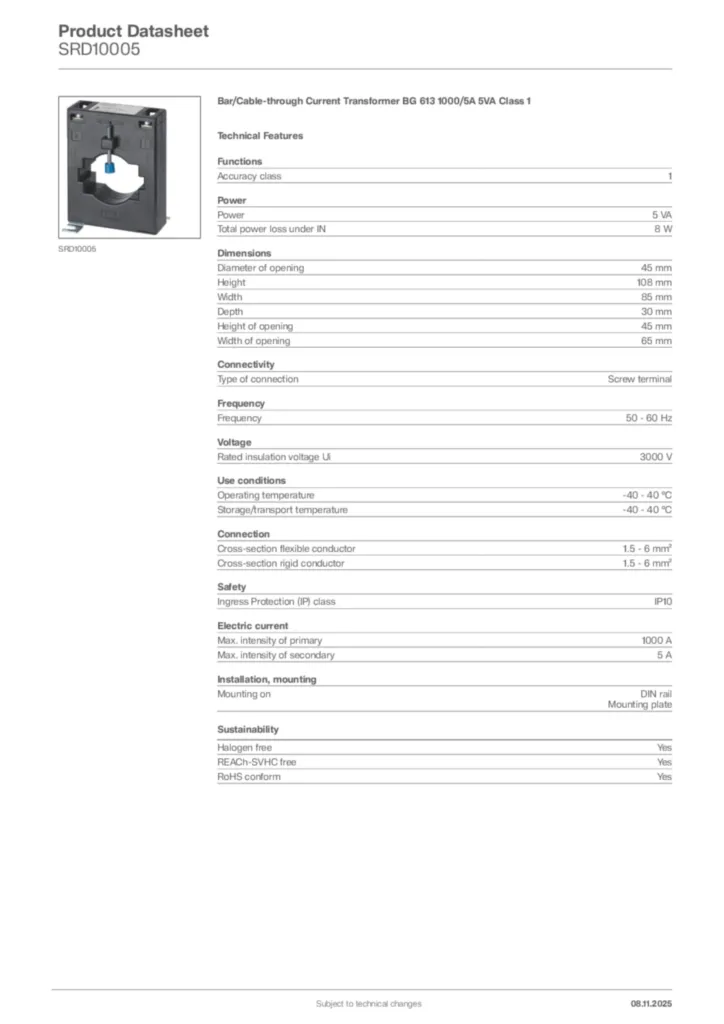

Download the data sheet

Complete your system

DIN rail adapter 1 products available

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

5 VA
Total power loss under IN

8 W

Diameter of opening

45 mm
Height

108 mm
Width

85 mm
Depth

30 mm
Height of opening

45 mm
Width of opening

65 mm

Type of connection

Wire connection

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

1000 A
Rated secondary current (Isr)

5 A
Rated current

1000 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
