The Hager BG113 bar/cable-through plug-in current transformer, 600/5 A, 5 VA, Class 1, delivers accurate measurement for metering and protection. Compact (70×50×30 mm) with 29.5×20 mm window, it suits busbars or cables. Easy screw terminals accept 1.5-6 mm². Mount on DIN rail or plate. Rated 50-60 Hz, up to 720 V, 3 kV insulation, IP10. Robust ratings (Ith 60×Ipr) ensure reliable operation from -40 to 40 °C.

EAN

4049857139378

Packaging

1 Piece

Bar/Cable-Through CT BG213 50/5A 1.5VA Class 1 20mm window DIN rail SRC06005

Accessories
Technical properties
Environmental value
Documentations
More products

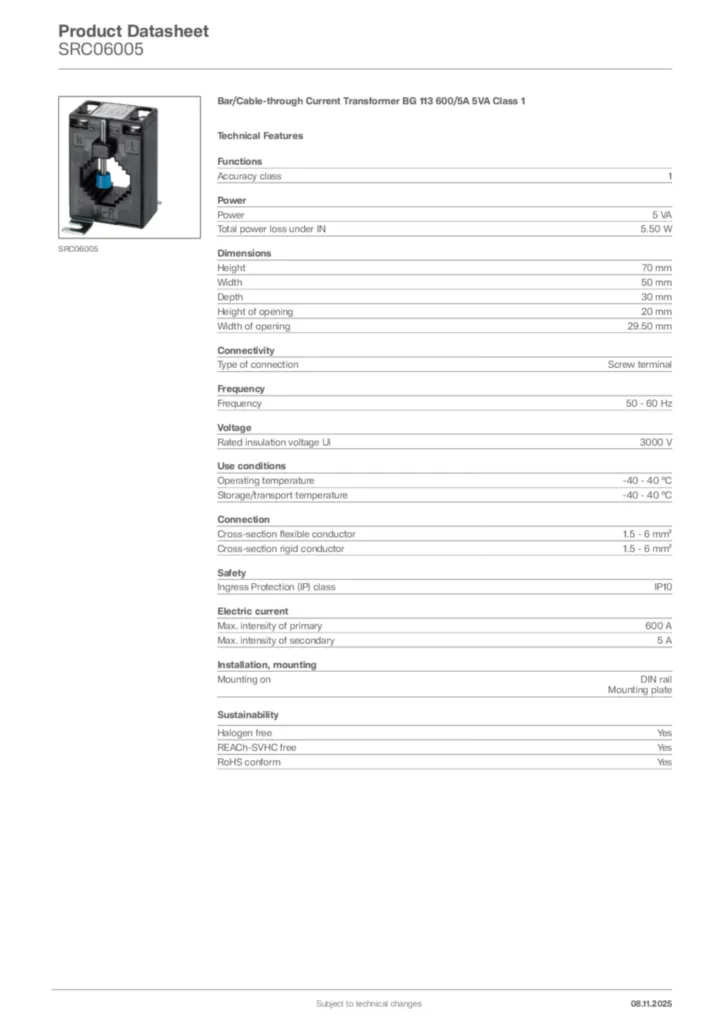

Download the data sheet

Complete your system

DIN rail adapter 1 products available

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

5 VA
Total power loss under IN

5.50 W

Height

70 mm
Width

50 mm
Depth

30 mm
Height of opening

20 mm
Width of opening

29.50 mm

Type of connection

Screw terminal

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

600 A
Rated secondary current (Isr)

5 A
Rated current

600 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
