The Hager BG113 bar/cable-through current transformer 250/5 A, 2.5 VA, Class 1 provides accurate metering and protection. Plug-in design with 20×29.5 mm window for bars/cables; screw terminals for easy wiring. Operates 50-60 Hz, up to 720 V, 3 kV withstand. DIN rail or plate mounting. Ratings: 1.2×Ipr thermal, Ith 60×Ipr, Idyn 2.5×Ith, FS5. IP10, -40 to 40 °C. Ideal for energy meters and protection relays.

EAN

4049857139354

Packaging

1 Piece

Bar/Cable-through CT 800/5A 5VA Class 1, Plug-in, BG613 SRA02505

Accessories
Technical properties
Environmental value
Documentations
More products

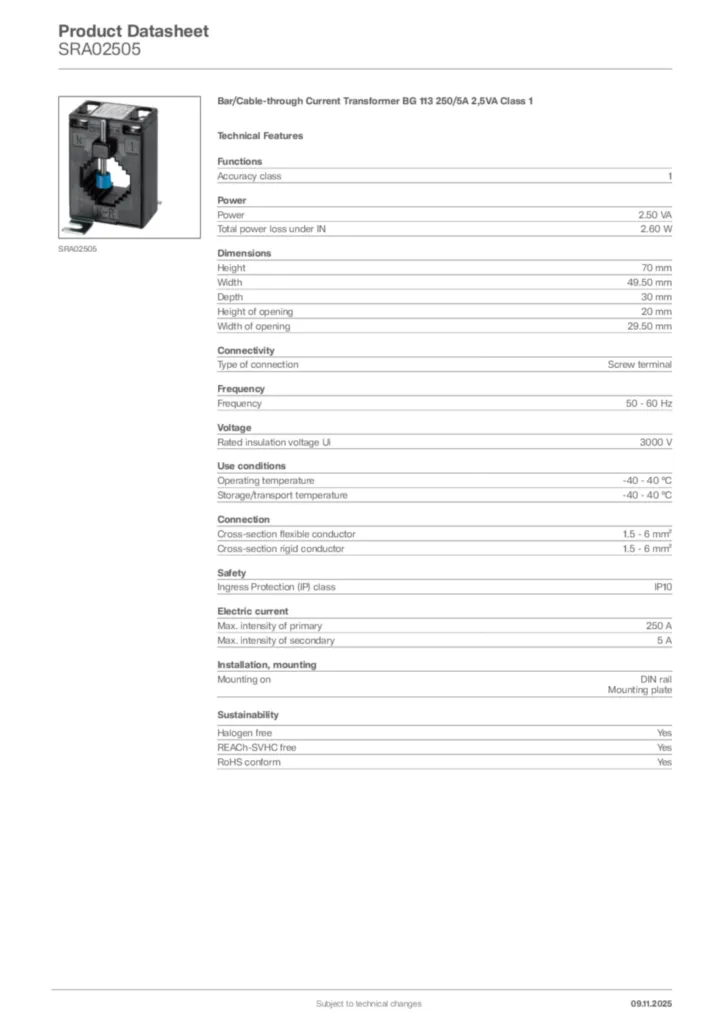

Download the data sheet

Complete your system

DIN rail adapter 1 products available

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

2.50 VA
Total power loss under IN

2.60 W

Height

70 mm
Width

49.50 mm
Depth

30 mm
Height of opening

20 mm
Width of opening

29.50 mm

Type of connection

Screw terminal

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

250 A
Rated secondary current (Isr)

5 A
Rated current

250 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
