The Hager BG213 bar/cable-through current transformer converts 50 A to 5 A for accurate metering and protection. Class 1, 1.5 VA at 50-60 Hz with 0.5 W loss delivers precise, efficient measurements. 20 mm aperture, screw terminals (1.5-6 mm²), DIN-rail or plate mount. Withstand 3 kV, up to 720 V, -40 to 40 °C. Ratings: 1.2×Ipr continuous, 60×Ipr/1 s, 2.5×Ith dynamic, FS5. Ideal for LV panels and energy meters.

EAN

4049857063857

Packaging

1 Piece

Plug-in current transformer 125/5A 2.5VA Class 1 DIN-rail BG113 SRA00505

Accessories
Technical properties
Environmental value
Documentations
More products

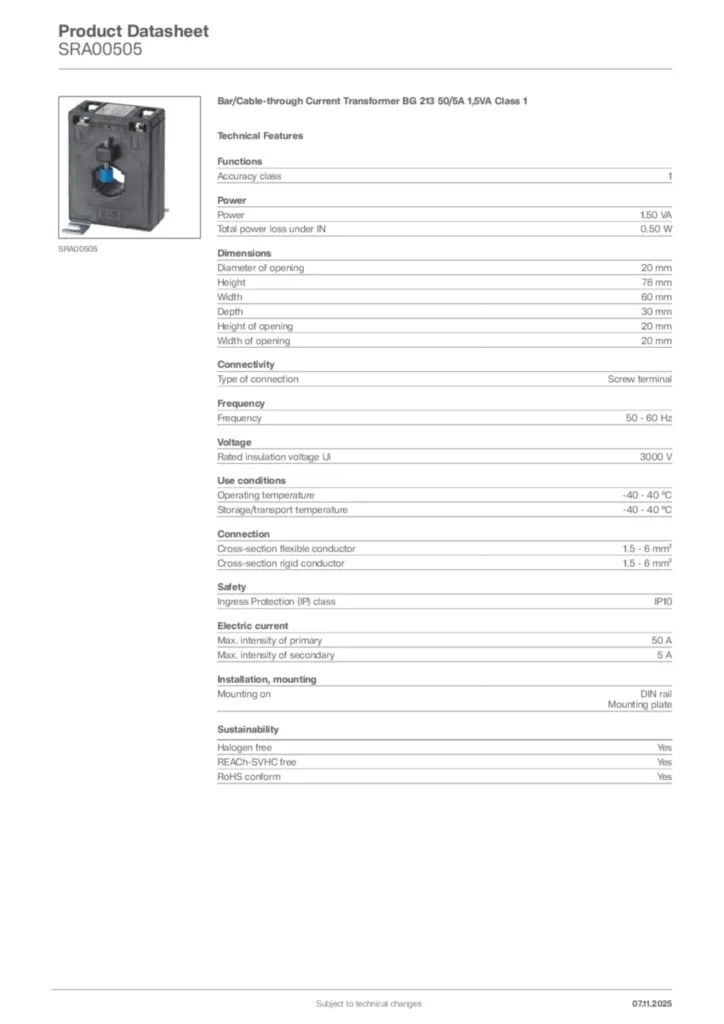

Download the data sheet

Complete your system

DIN rail adapter 1 products available

Technical properties

Filter Type product

Plug-in current transformer

Accuracy class

1

Power

1.50 VA
Total power loss under IN

0.50 W

Diameter of opening

20 mm
Height

78 mm
Width

60 mm
Depth

30 mm
Height of opening

20 mm
Width of opening

20 mm

Type of connection

Screw terminal

Frequency

50 - 60 Hz

Rated power-frequency withstand voltage (r.m.s.)

3000 V
Max. operating voltage

720 V

Operating temperature

-40 - 40 °C
Storage/transport temperature

-40 - 40 °C

Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 6 mm²

Ingress Protection (IP) class

IP10
Insulating class

E

Rated primary current (Ipr)

50 A
Rated secondary current (Isr)

5 A
Rated current

50 A
Rated continuous thermal current

1,2*Ipr
Rated short-time thermal current (Ith/1s)

60*Ipr
Rated dynamic current

2.5*Ith
Over voltage limiting factor

FS 5

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
