The Hager MCB 3P 25kA C-20A 3M is a 3-pole C-curve 20 A breaker for protecting three-phase circuits from overloads and short circuits. Rated 415 V AC, it provides Icu 25 kA at 400 V (50 kA at 230 V), Ics 15 kA, and 10 kA Icn (IEC 60898-1). Compact 3 modules, IP20, -25 to 70°C, 50/60 Hz, screw terminals with biconnect bottom, 1-35 mm². Ideal for industrial and commercial panels.

EAN

3250614645174

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 1P 16A Curve C 6kA 230-400V AC 1 Module NRN320

Accessories
Technical properties
Environmental value
Documentations
More products

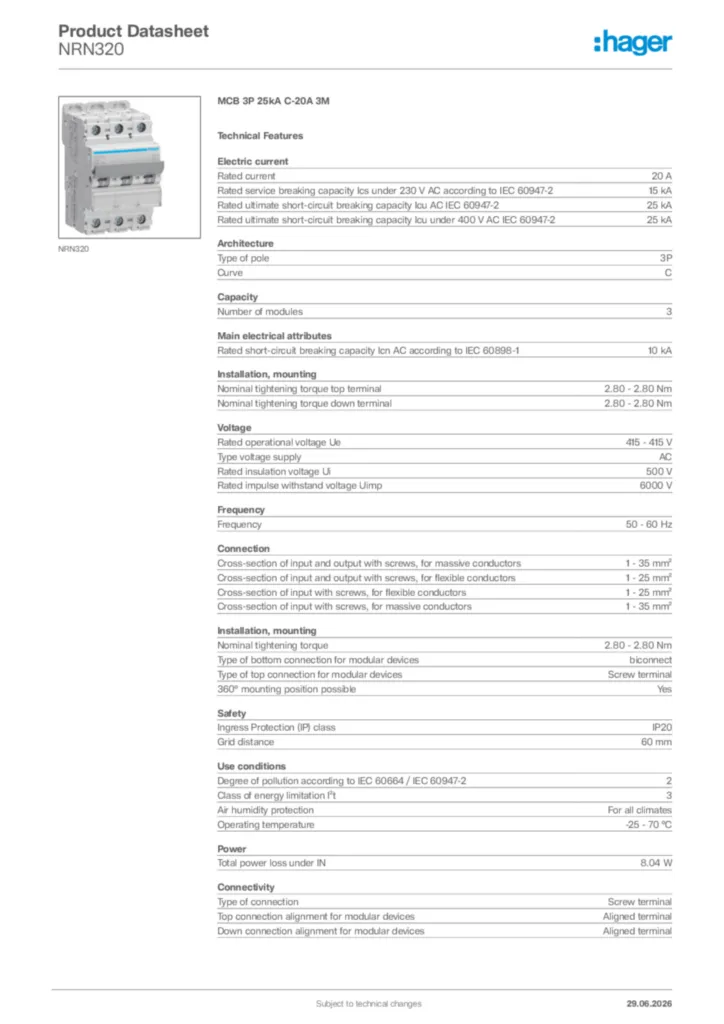

Download the data sheet

Complete your system

Terminal cover 1 products available
AOB type A-HI 1 products available
Modular phase busbar 3 products available
AOB type AC 4 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current

20 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA

Type of pole

3P
Curve

C

Number of modules

3

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

8.04 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

52.50 mm
Depth

70 mm
