Hager 3P 20A B-curve MCB (3 modules) protects three-phase circuits from overloads and short circuits. With 25kA Icu at 230/400V, 7.5kA Ics (IEC 60947-2) and 10kA Icn (IEC 60898-1), it suits commercial/industrial panels with high fault levels. Rated 415V AC, Ui 500V, Uimp 6kV, 50-60Hz. Easy screw/biconnect terminals (1-35 mm²), IP20, -25…70°C, durable: 4,000 electrical/20,000 mechanical operations.

EAN

3250614645778

Packaging

1 Piece

Miniature Circuit Breaker 3P 10A Curve B 25kA 415V AC 3 Modules NQN320

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Environmental value
Documentations

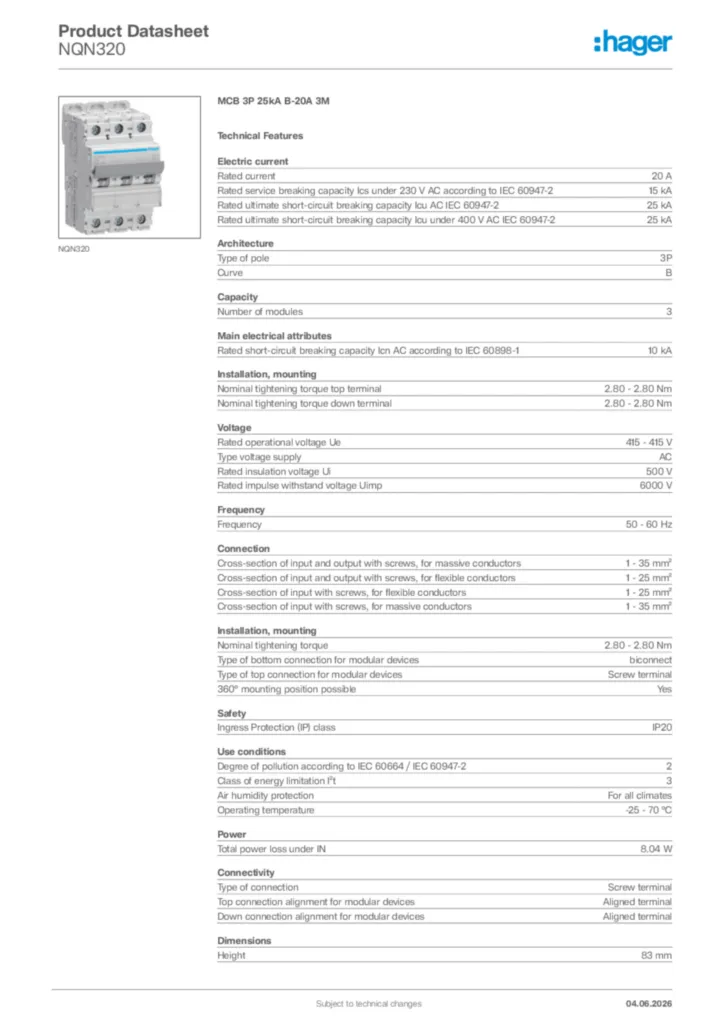

Download the data sheet

Complete your system

Terminal cover 1 products available
Modular phase busbar 3 products available
AOB type AC 2 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current IN

20 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated current at -15°C

24.02 A
Rated current at -10°C

23.57 A
Rated current at -5°C

23.12 A
Rated current at 0°C

22.68 A
Rated current at 5°C

22.23 A
Rated current at 10°C

21.79 A
Rated current at 15°C

21.34 A
Rated current at 20°C

20.89 A
Rated current at 25°C

20.45 A
Rated current at 30°C

20 A
Rated current at 35°C

19.45 A
Rated current at 40°C

18.91 A
Rated current at 45°C

18.36 A
Rated current at 50°C

17.81 A
Rated current at 55°C

17.26 A
Rated current at 60°C

16.72 A
Rated current at 65°C

16.17 A
Rated current at 70°C

15.62 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

50 kA

Type of pole

3P
Curve

B

Number of modules

3

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

8.04 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

52.50 mm
Depth

70 mm
