The Hager LFS steel trunking 30x45 mm, 2 m length, in traffic white (RAL9016) offers robust, neat cable routing. With 970 mm² internal space, it accommodates up to 4×Ø11 mm cables (50% fill). Single-compartment, varnished steel with IK08 impact resistance and IP30 for indoor use. Operating range -5 to 90°C, suitable for functional integrity per DIN 4102-12. Couplers available separately.
EAN
4012740007313
VPE
32 meters
LFS steel trunking 20x20mm 2m IK08 IP30 Traffic white RAL9016 LFS3004509016
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Coupler for installation duct 1 product.page.accessories.products-available -
Internal corner for installation duct 1 product.page.accessories.products-available -
External corner for installation duct 1 product.page.accessories.products-available -
Flat angle for installation duct 1 product.page.accessories.products-available -
T-piece for installation duct 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height30 mm
-
Width45 mm
-
Length2000 mm
-
Inner cross-section970 - 970 mm²
Cover, door
-
Type of lidLoose
Capacity
-
Max. number of cables (Ø11mm, 50% filled, without devices)4
Materials
-
MaterialSteel
-
TreatmentVarnished
-
RAL code9016
-
ColourTraffic white
-
TransparentNo
Safety
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP30
Standards
-
Suitable for functional integrity according to DIN4102-12Yes
Use conditions
-
Operating temperature-5 - 90 °C
Connectivity
-
Trunking couplingCouplers as separate reference
Equipment
-
Number of partitions0
-
Number of compartments1 - 1
-
Number of pluggable partitions0
-
Cable retaining clip includedNo
-
Number of cable retainers per meter0
-
With protective filmNo
Configuration
-
With antibacterial treatmentNo
Scope of delivery
-
Delivery on rollNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

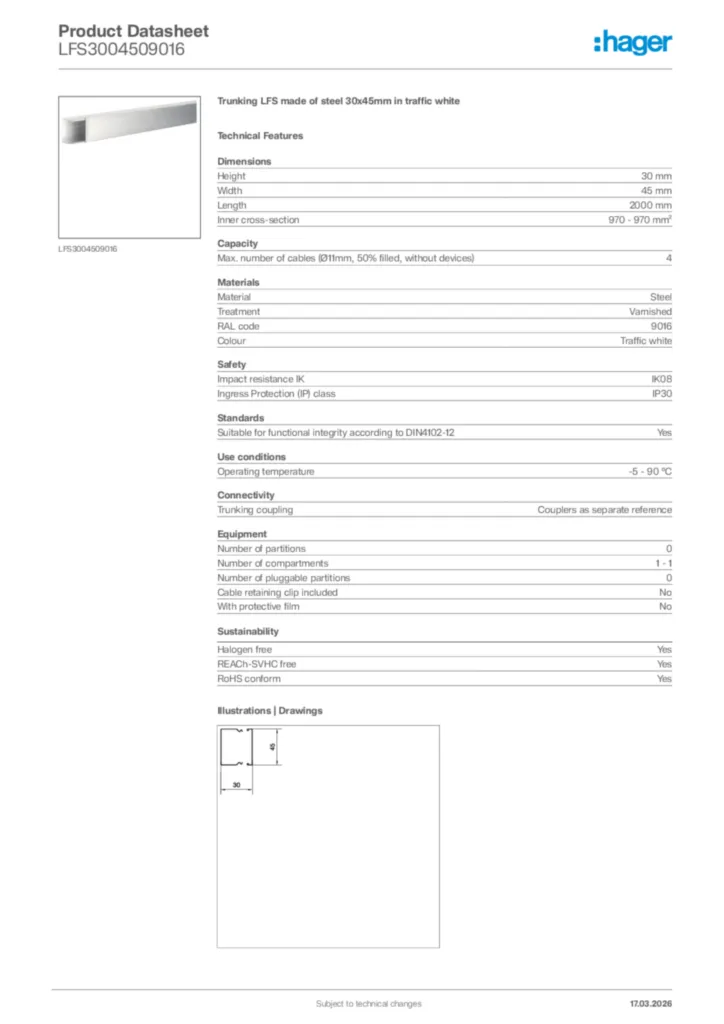

Hager Product data sheet LFS3004509016
Trunking LFS made of steel 30x45mm in traffic white
PDF -
ProductInspectionCertificate
Product certificate International 2022-06-28
Product certificate de-DE 2022-06-28
PDF1,43 MB -
ProductECDeclaration
Declaration of conformity en-GB, de-DE 2021-09-30
PDF633,95 kB
Declaration of conformity en-GB 2026-08-07
PDF331,77 kB
