The Hager internal corner for LFS 30x45 trunking enables neat 90° internal transitions while protecting cables. Made of varnished steel (IK08) in traffic white RAL9016, it matches the system and resists impacts. IP30 rated and suitable for functional integrity per DIN 4102-12. Dimensions 30x45 mm (a=150 mm). Operating -5 to 90°C. Ideal for durable, clean cable routing in residential and commercial installs.

EAN

4012740007337

Packaging

1 Piece

Cable trunking systems - LF

Internal corner halogen-free 60x110 for LF/FB trunking ABS IK07 RAL9016 LFS3004549016

Technical properties
Environmental value
Documentations
More products

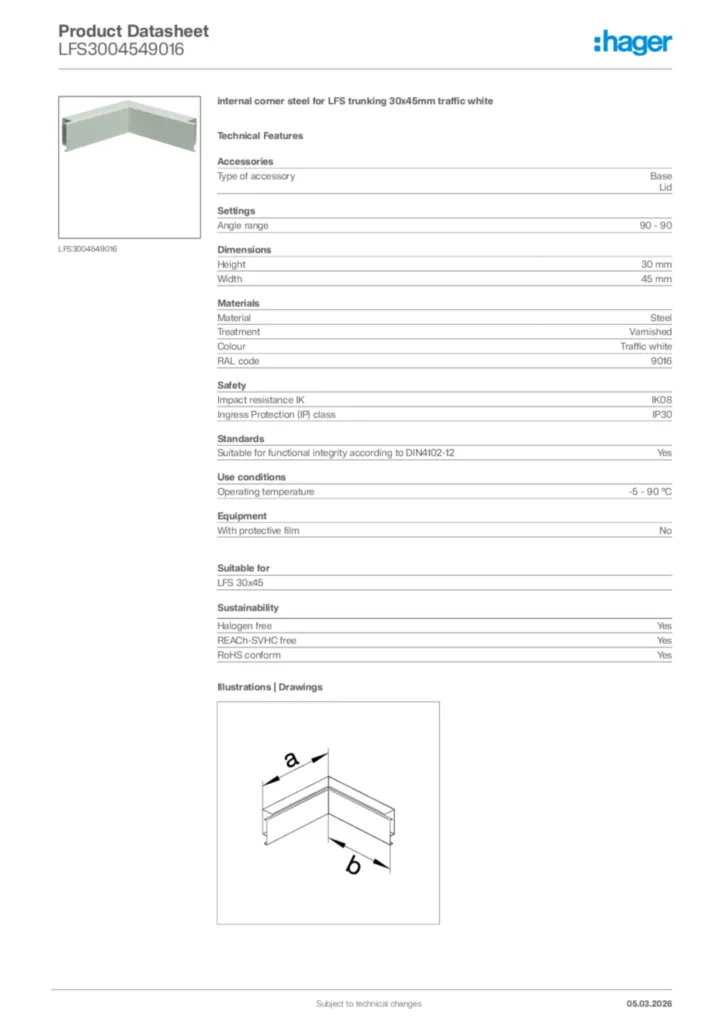

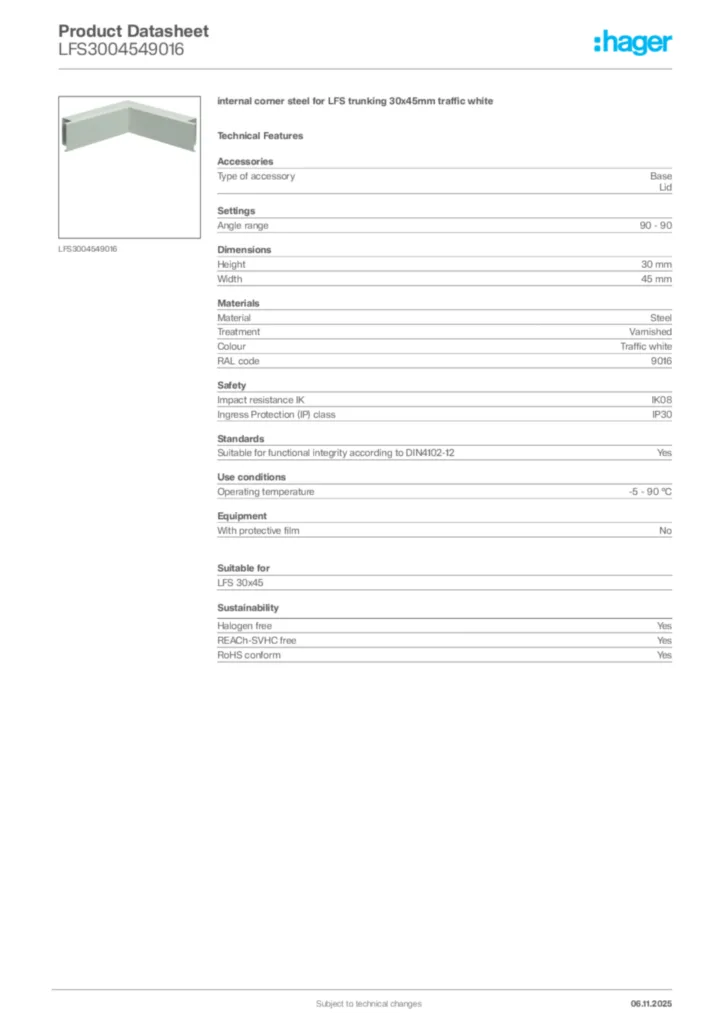

Download the data sheet

Technical properties

Type of accessory

Base, Lid

Angle range

90 - 90

Height

30 mm
Width

45 mm
Measurement a

150 mm
Measurement b

140 mm

Material

Steel
Treatment

Varnished
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

No

Related Series

LFS 30x45

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
