    • LFH3004509016
    EAN
    4012740013697
    VPE
    32 meters
    • Cable trunking systems - LF

    Trunking halogen free LFH 30x45mm traffic white LFH3004509016

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Trunking halogen free LFH 30x45mm traffic white

    LFH3004509016

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

    • External corner for install­a­tion duct 1 product.page.accessories.products-available
    • End piece for install­a­tion duct 1 product.page.accessories.products-available
    • Internal corner for install­a­tion duct 1 product.page.accessories.products-available
    • T-piece for install­a­tion duct 1 product.page.accessories.products-available
    • Flat angle for install­a­tion duct 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • External corner for install­a­tion duct
    • End piece for install­a­tion duct
    • Internal corner for install­a­tion duct
    • T-piece for install­a­tion duct
    • Flat angle for install­a­tion duct
    • LF3004539016

      external corner halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004569016

      endcap halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004549016

      internal corner halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004589016

      T-piece halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004559016

      flat angle halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Height
      30 mm
    • Width
      45 mm
    • Length
      2000 mm
    • Lid width
      45 mm
    • Inner cross-sec­tion
      1010 - 1010 mm²
    Cover, door
    • Number of mount­able lids
      1
    • Type of lid
      Loose
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      5
    Mater­ials
    • Material
      PC-ABS
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    • Trans­parent
      No
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 90 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of compart­ments
      1 - 1
    • Number of plug­gable parti­tions
      0
    • Cable retaining clip included
      No
    • Number of cable retainers per meter
      0
    • With protective film
      No
    Install­a­tion, mounting
    • Base perfor­a­tion
      Yes
    Config­ur­a­tion
    • Is self-ad­hesive
      No
    • With anti­bac­terial treat­ment
      No
    Scope of delivery
    • Delivery on roll
      No

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration LFH3004509016
    PDF
    RoHS report LFH3004509016
    PDF

    Downloads

    • Image LFH3004509016 | Hager UK

      Product Image LFH3004509016

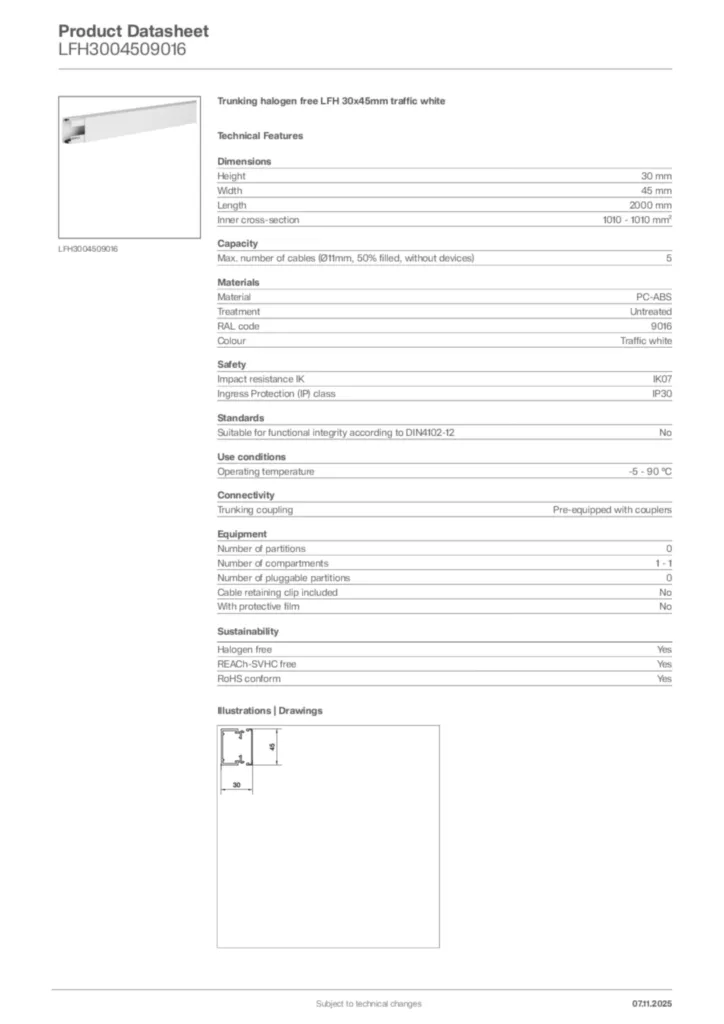

    • GeneratedProductDatasheet

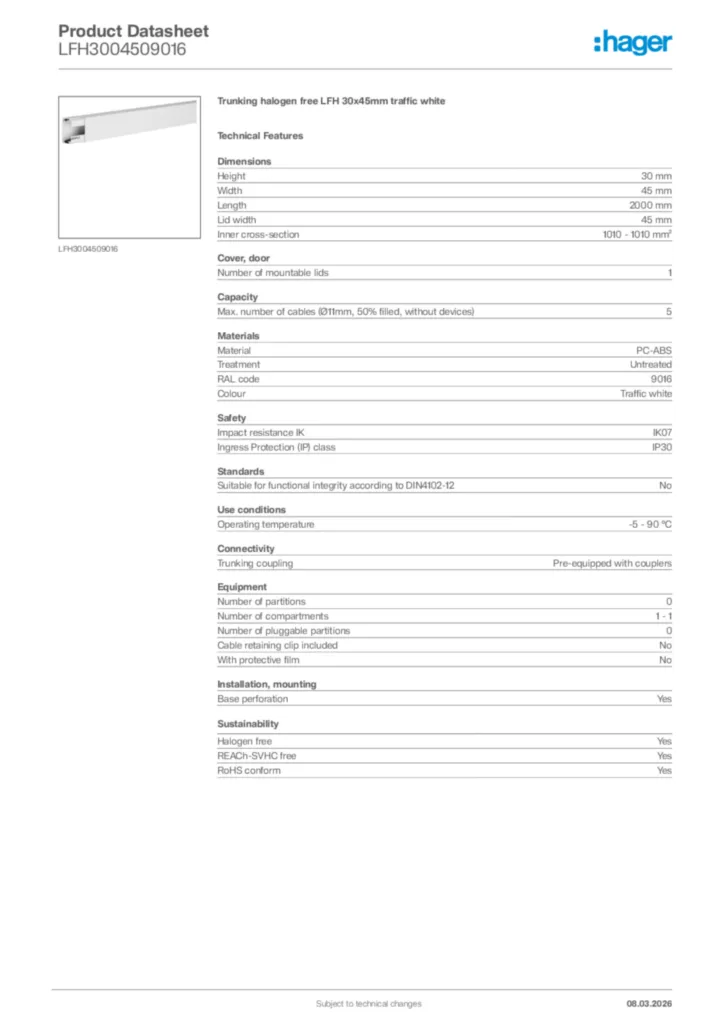

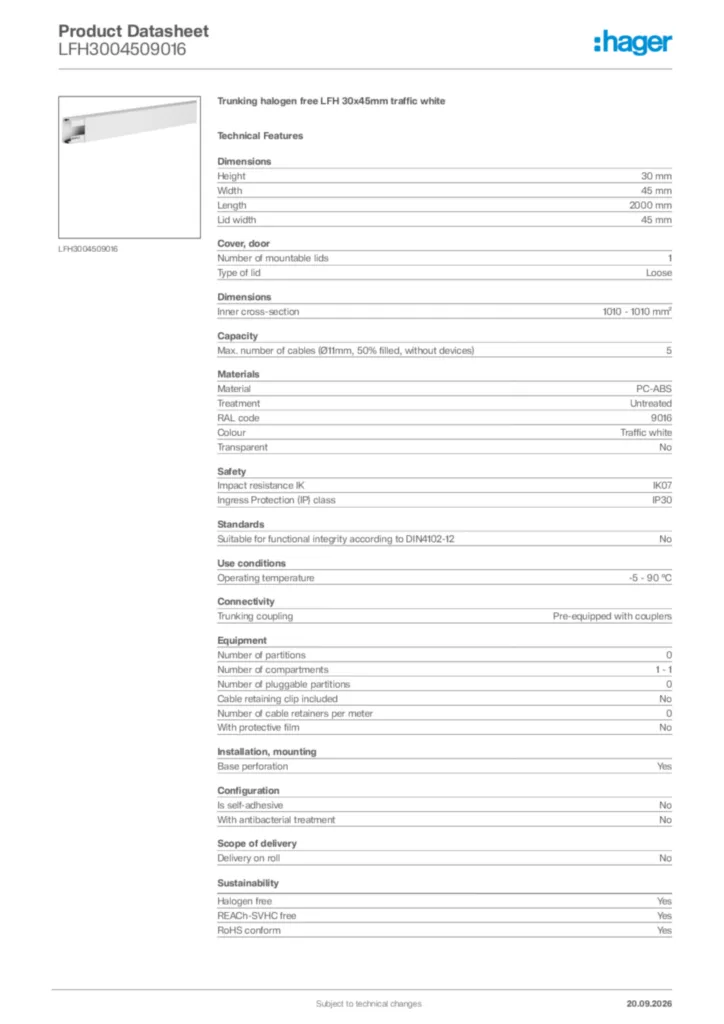

      Image Hager Product data sheet LFH3004509016 | Hager UK

      Hager Product data sheet LFH3004509016

      Trunking halogen free LFH 30x45mm traffic white

      PDF

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-08-07 | Hager UK

      Declaration of conformity en-GB 2026-08-07

      PDF
      332,42 kB
