The Hager flat angle for LF/LFF 20x33 mm trunking in traffic white (RAL 9016) enables neat 90° direction changes while protecting and organizing cables. Moulded ABS, halogen-free, IK07 impact rated, and suitable for -5 to 60°C. Compact (H 20 mm, W 33 mm, a 43 mm), it ensures a clean finish and quick installation, matching LF/LFF trunking for residential and commercial cable runs.

EAN

4012740012997

Packaging

External corner LF/LFF 20x33mm halogen-free IK07 traffic white RAL9016 LFF2003559016

Technical properties
Environmental value
Documentations
More products

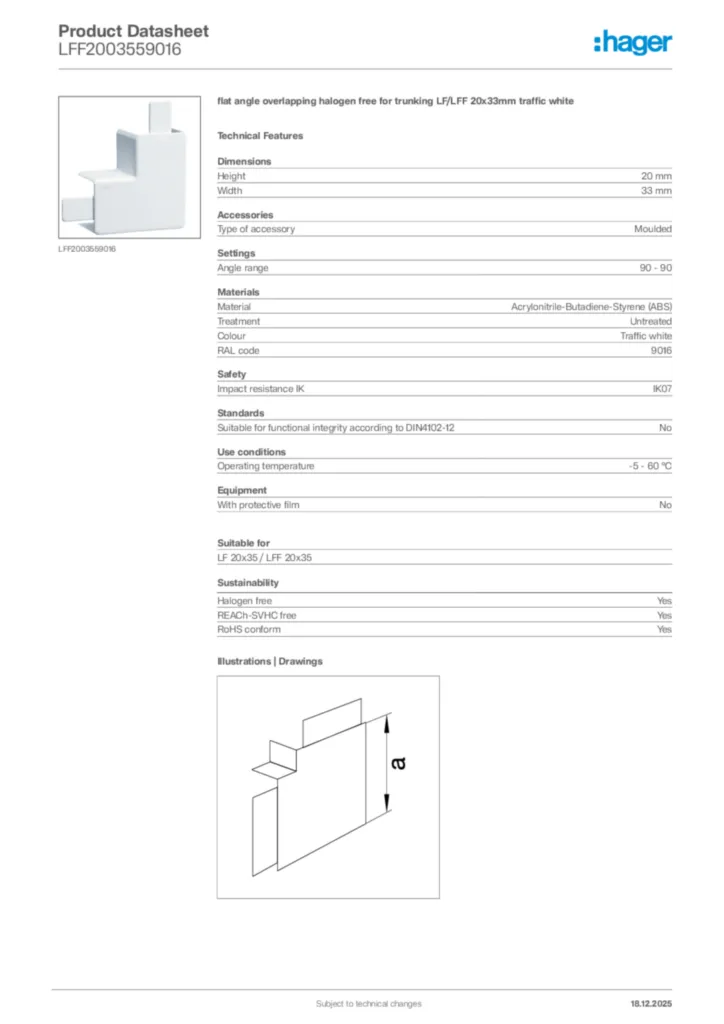

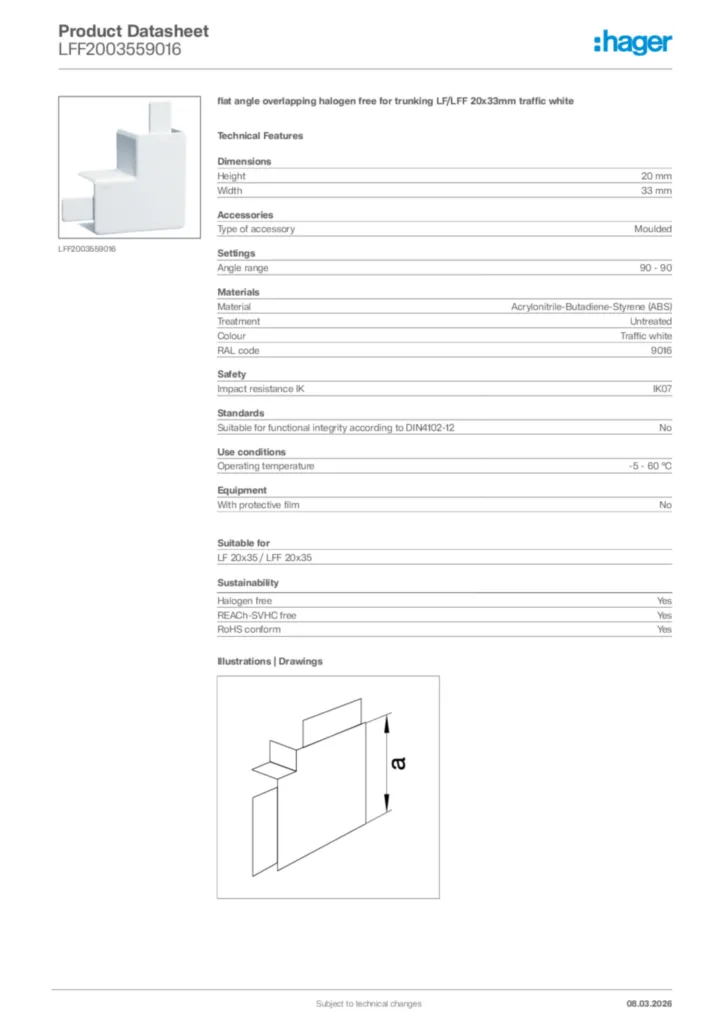

Download the data sheet

Technical properties

Height

20 mm
Width

33 mm
Measurement a

43 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LF 20x35, LFF 20x35

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
