Hager internal corner, halogen-free, for LF/LFF/FB 60x230 trunking. Delivers a clean 90° inside turn while preserving cable capacity and safety. Moulded ABS, traffic white RAL9016, IK07 impact resistant, -5 to 60°C. Size 61×230 mm (a=130 mm). Non-overlapping for flush alignment. Halogen-free for low smoke and toxicity. Ideal for neat residential and commercial cable routing in 60×230 trunking runs.

EAN

4012740012645

Packaging

1 Piece

Internal corner halogen free for LF/LFF/FB trunking 60x190mm IK07 LF6023049016

Technical properties
Environmental value
Documentations
More products

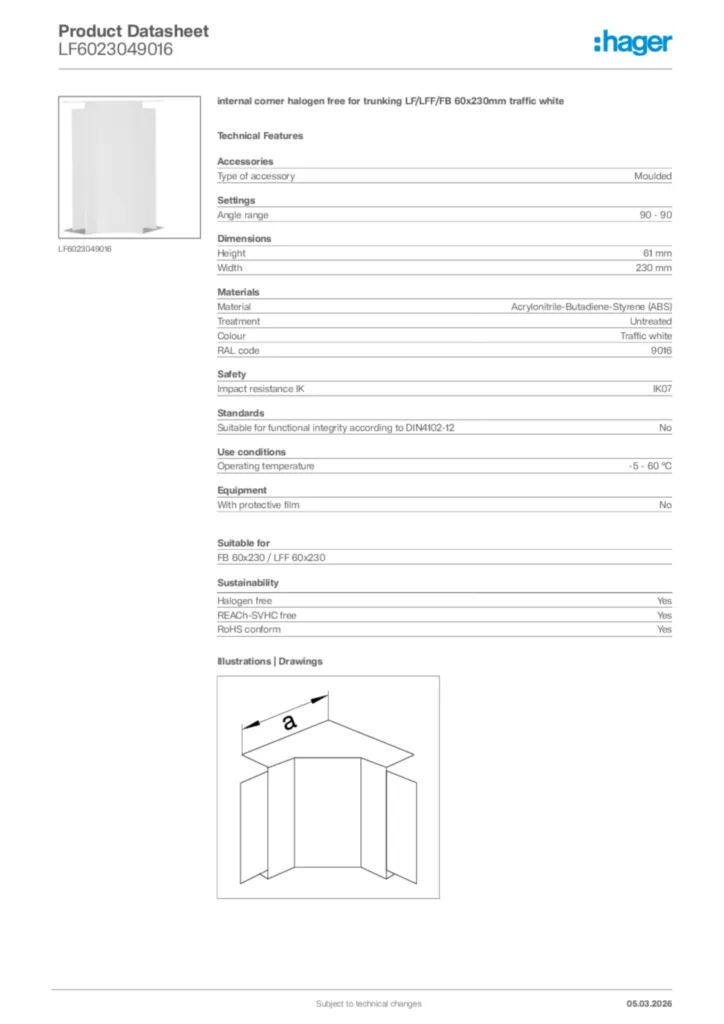

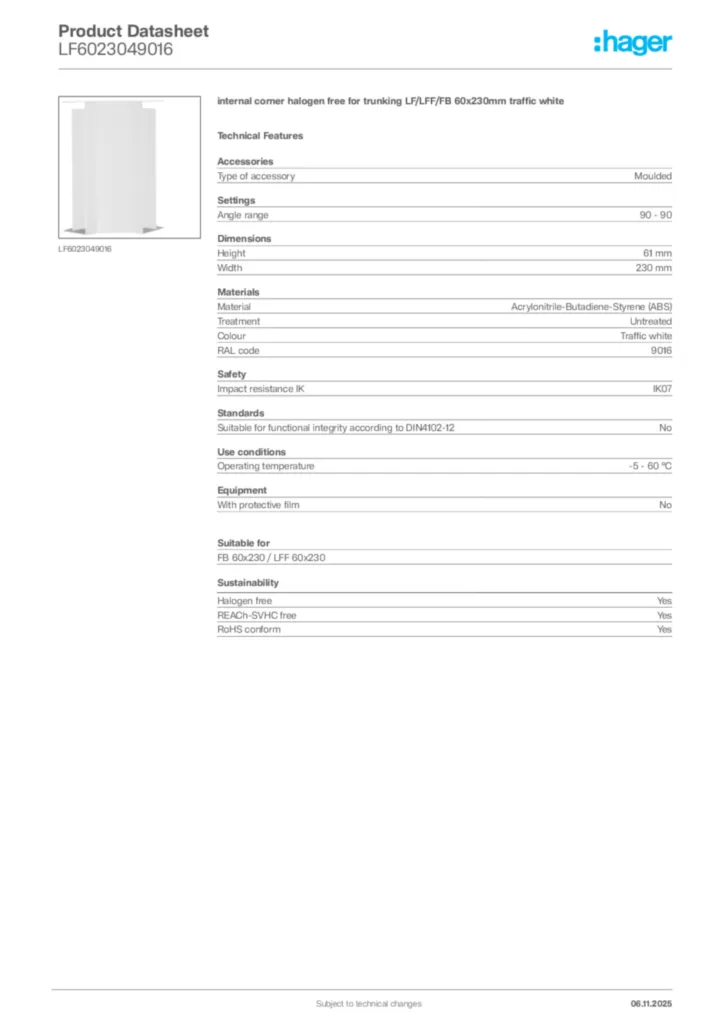

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

61 mm
Width

230 mm
Measurement a

130 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

FB 60x230, LFF 60x230

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
