    • Home
    • Catalog
    • Cable routing and room connec­tion systems
    • Cable trunking systems
    • Cable trunking systems - LF
    • LF6019069016
    The Hager halogen‑free endcap for LF/LFF/FB 60x190 trunking provides a neat, safe termination and cable protection. Made of durable ABS (IK07) in traffic white RAL9016, it withstands -5 to 60°C. Quick screw or snap‑on mounting speeds installation. Height 61 mm, width 190 mm. Ideal for residential and commercial trunking runs in FB 60x190 and LFF 60x190 systems.
    EAN
    4012740012591
    Packaging
    1 Piece
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    Flat angle 60x190 mm halogen-free ABS 90° IK07 Traffic white RAL9016 LF/LFF/FB LF6019069016

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Flat angle 60x190 mm halogen-free ABS 90° IK07 Traffic white RAL9016 LF/LFF/FB

    LF6019069016

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimen­sions
    • Height
      61 mm
    • Width
      190 mm
    Mater­ials
    • Material
      Acryloni­trile-Butadiene-Styrene (ABS)
    • Treat­ment
      Untreated
    • Colour
      Traffic white
    • RAL code
      9016
    Safety
    • Impact resist­ance IK
      IK07
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Equip­ment
    • With protective film
      No
    Config­ur­a­tion
    • Over­lap­ping
      No
    • With anti­bac­terial treat­ment
      No
    Connectivity
    • Mounting type
      Screw connec­tion, Snap-on mounting
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    • Related Series
      FB 60x190, LFF 60x190

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - Distribution trunking - series LF - LFE - FB - BA6 (english)
    PDF
    400,99 kB
    REACH declaration LF6019069016
    PDF
    RoHS report LF6019069016
    PDF

    Downloads

    • Image LF6019069016 | Hager Africa

      Product Image LF6019069016

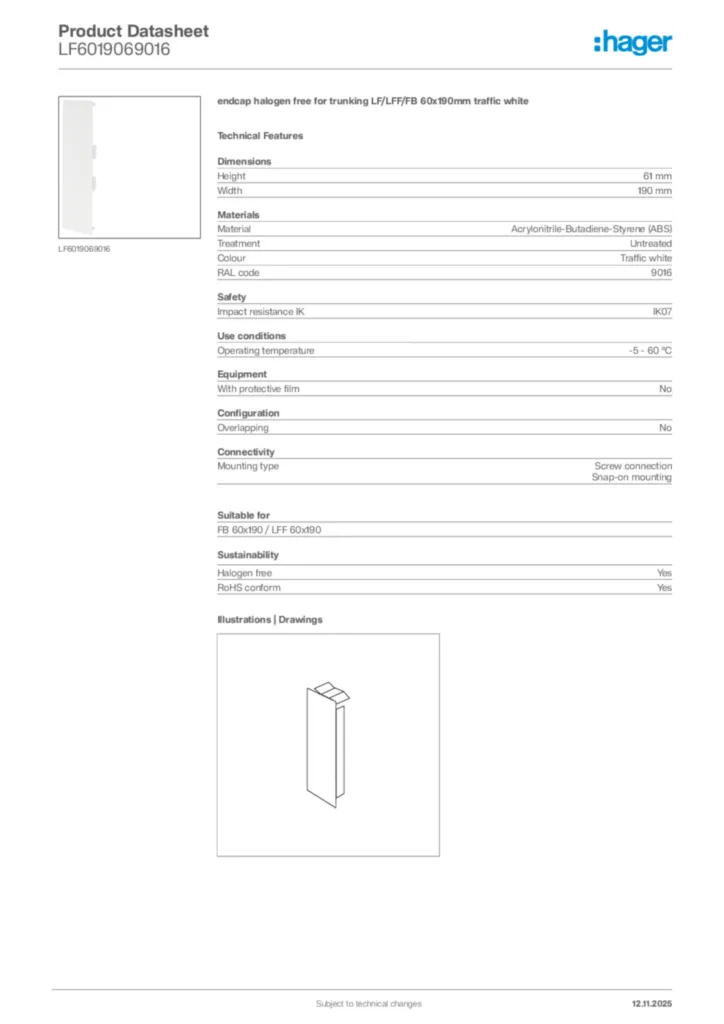

    • Product datasheet

      Image Hager Product data sheet LF6019069016 | Hager Africa

      Hager Product data sheet LF6019069016

      endcap halogen free for trunking LF/LFF/FB 60x190mm traffic white

      PDF

    • Product licence

      Image Product_Licence_NF004_1074_LFF | Hager Africa

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-08-07 | Hager Africa

      Declaration of conformity en-GB 2026-08-07

      PDF
      334,89 kB
      Image Declaration of conformity en-GB 2026-08-07 | Hager Africa

      Declaration of conformity en-GB 2026-08-07

      PDF
      341,51 kB
      Image Declaration of conformity en-GB 2026-09-30 | Hager Africa

      Declaration of conformity en-GB 2026-09-30

      PDF
      438,98 kB
      Image EC declaration of conformity FB | Hager Africa

      EC declaration of conformity FB

      Declaration of conformity International 2017-11-20

      PDF
      122,39 kB
