The Hager PVC trunking 20x20mm with adhesive tape provides neat, fast surface cable routing. At 2 m long with 228 mm² inner section and 1 compartment, it suits a single Ø11 mm cable (50% fill). Traffic white (RAL9016) for a clean finish, IK07 and IP30 for protection, and -5 to 60°C operation. Ideal for residential or light commercial small runs where quick, tool-free mounting is needed.

EAN

4012740011693

Packaging

54 Meters

Cable trunking systems - LF

PVC Trunking with Adhesive Tape 15x15mm Traffic White 2m IP30 IK06 LF2002009016A

Accessories
Technical properties
Environmental value
Documentations
More products

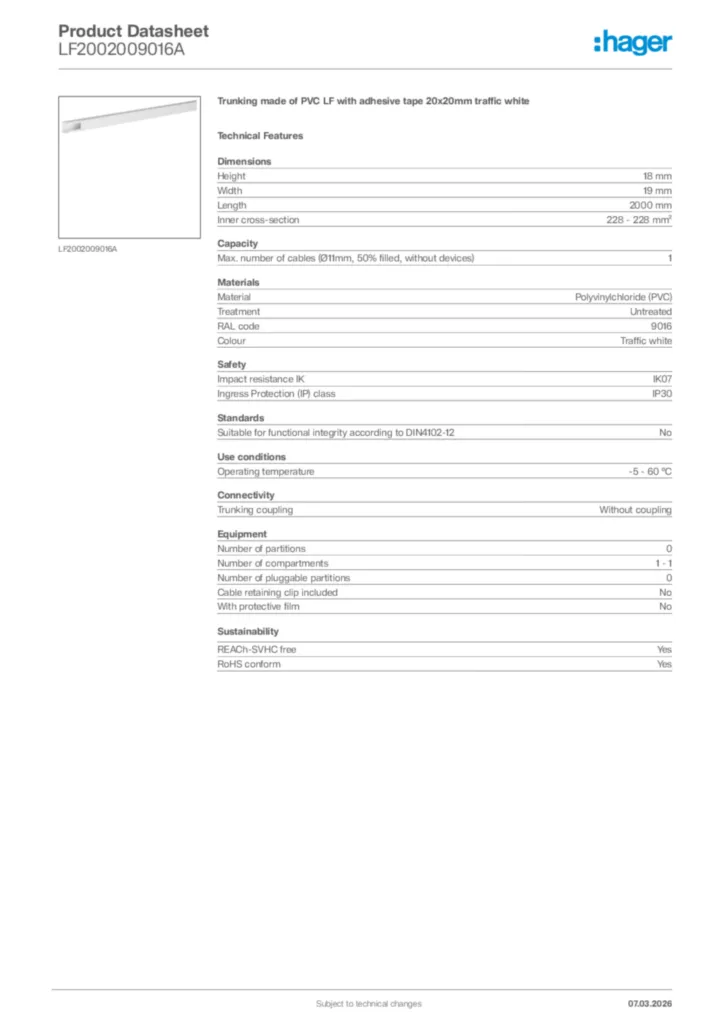

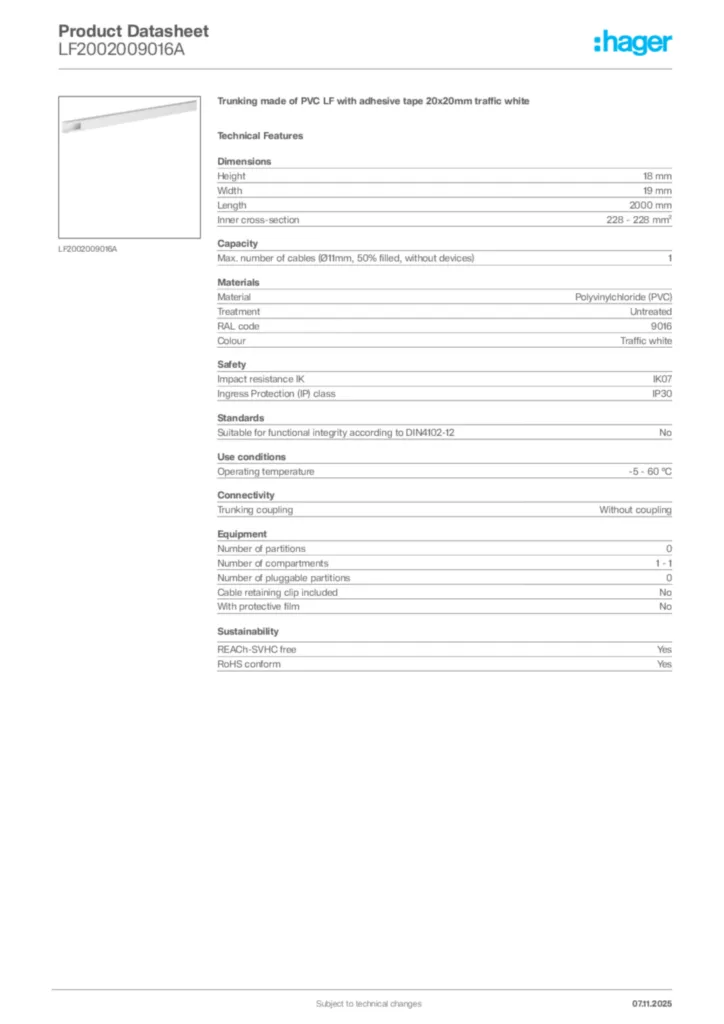

Download the data sheet

Complete your system

Surface-mounted housing for flush-mounted switching device 1 products available
End piece for installation duct 1 products available

Technical properties

Height

18 mm
Width

19 mm
Length

2000 mm
Inner cross-section

228 - 228 mm²

Type of lid

Premounted

Max. number of cables (Ø11mm, 50% filled, without devices)

1

Material

Polyvinylchloride (PVC)
Treatment

Untreated
RAL code

9016
Colour

Traffic white
Transparent

No

Impact resistance IK

IK07
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

Trunking coupling

Without coupling

Number of partitions

0
Number of compartments

1 - 1
Number of pluggable partitions

0
Cable retaining clip included

No
Number of cable retainers per meter

0
With protective film

No

With antibacterial treatment

No

Delivery on roll

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
