The Hager end cap for LF/LFH 20x20 mm trunking provides a neat, safe termination for cable runs. Made of halogen-free ABS in traffic white (RAL9016), it offers IK07 impact resistance and IP30 protection for indoor use. Compact (20 x 19 mm) and rated for -5 to 90°C, it installs quickly by screw or snap-on mounting, ensuring durable, clean finishes in residential and commercial installations.

EAN

4012740011709

Packaging

Cable trunking systems - LF

Endcap halogen-free for trunking 30x45mm IK07 stone grey RAL7030 LF2002069016

Technical properties
Environmental value
Documentations
More products

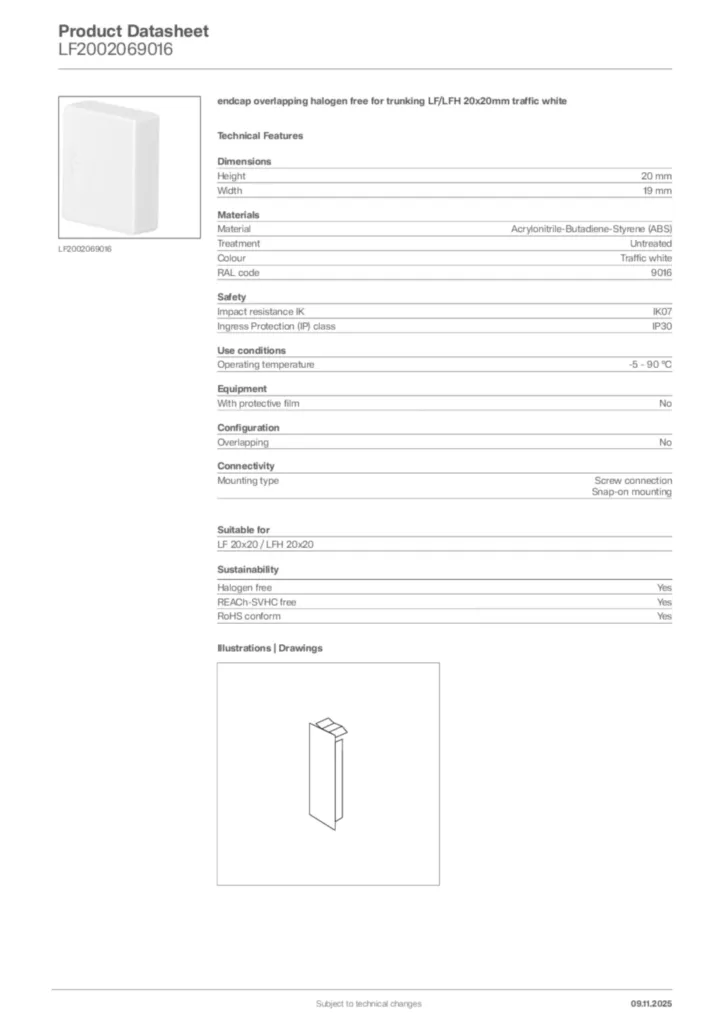

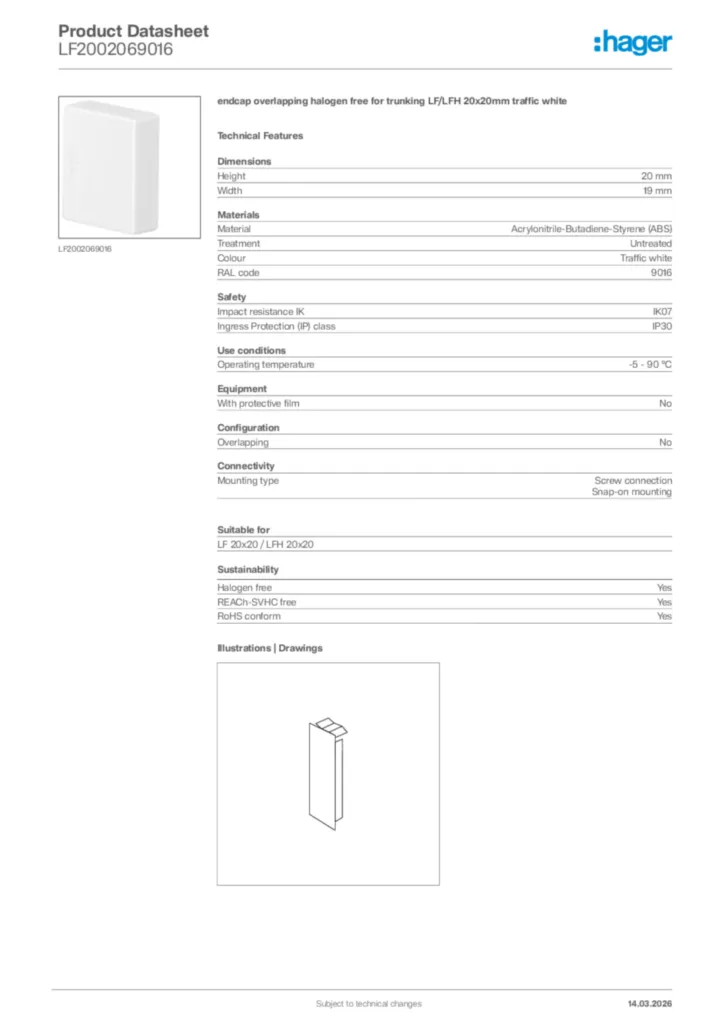

Download the data sheet

Technical properties

Height

20 mm
Width

19 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07
Ingress Protection (IP) class

IP30

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting type

Screw connection, Snap-on mounting

Suitable for functional integrity according to DIN4102-12

No

Related Series

LF 20x20, LFH 20x20

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
