The Hager PVC LF 15x15mm traffic white trunking routes and protects small cable runs in indoor installations. Compact 15x15mm section (~150 mm²), 2 m length, single compartment. Durable PVC, IK06 impact resistance, IP30, -5 to 60°C. Clean RAL 9016 finish for discreet mounting; ideal for one Ø11 mm cable.
EAN
4012740011501
Packaging
44 Meters
PVC trunking 12x10mm 2m Traffic white RAL9016 IP30 IK06 1-compartment LF1501509016
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 1 products available -
End piece for installation duct 1 products available
Complete your system
Technical properties
Dimensions
-
Height15 mm
-
Width15 mm
-
Length2000 mm
-
Inner cross-section150 - 150 mm²
Cover, door
-
Type of lidPremounted
Capacity
-
Max. number of cables (Ø11mm, 50% filled, without devices)1
Materials
-
MaterialPolyvinylchloride (PVC)
-
TreatmentUntreated
-
RAL code9016
-
ColourTraffic white
-
TransparentNo
Safety
-
Impact resistance IKIK06
-
Ingress Protection (IP) classIP30
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Connectivity
-
Trunking couplingWithout coupling
Equipment
-
Number of partitions0
-
Number of compartments1 - 1
-
Number of pluggable partitions0
-
Cable retaining clip includedNo
-
Number of cable retainers per meter0
-
With protective filmNo
Configuration
-
With antibacterial treatmentNo
Scope of delivery
-
Delivery on rollNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

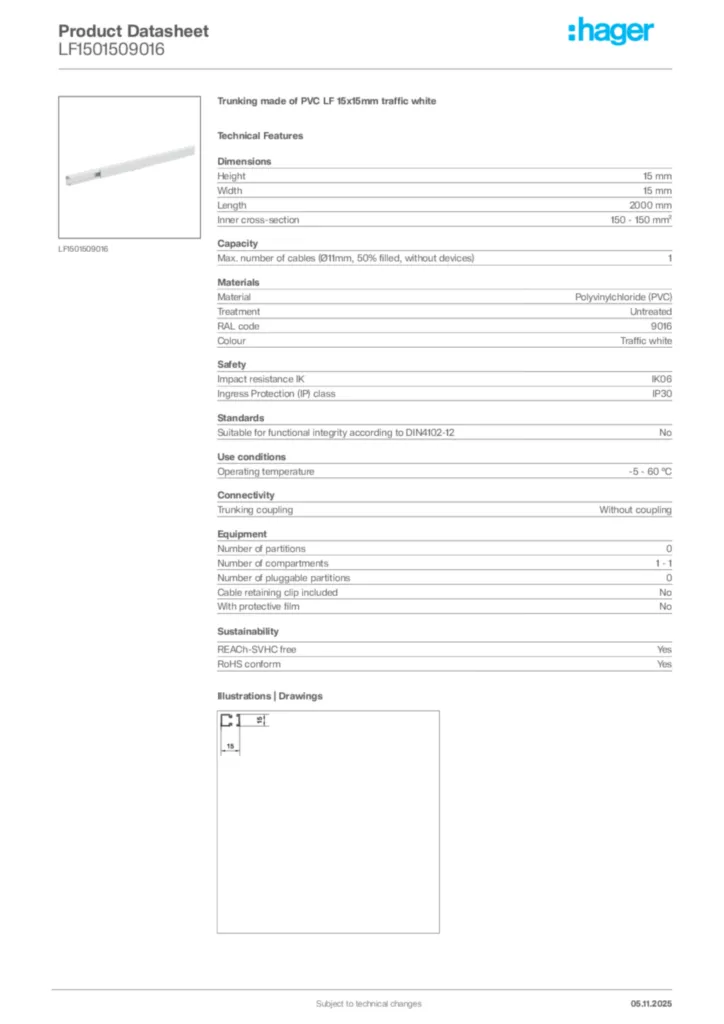

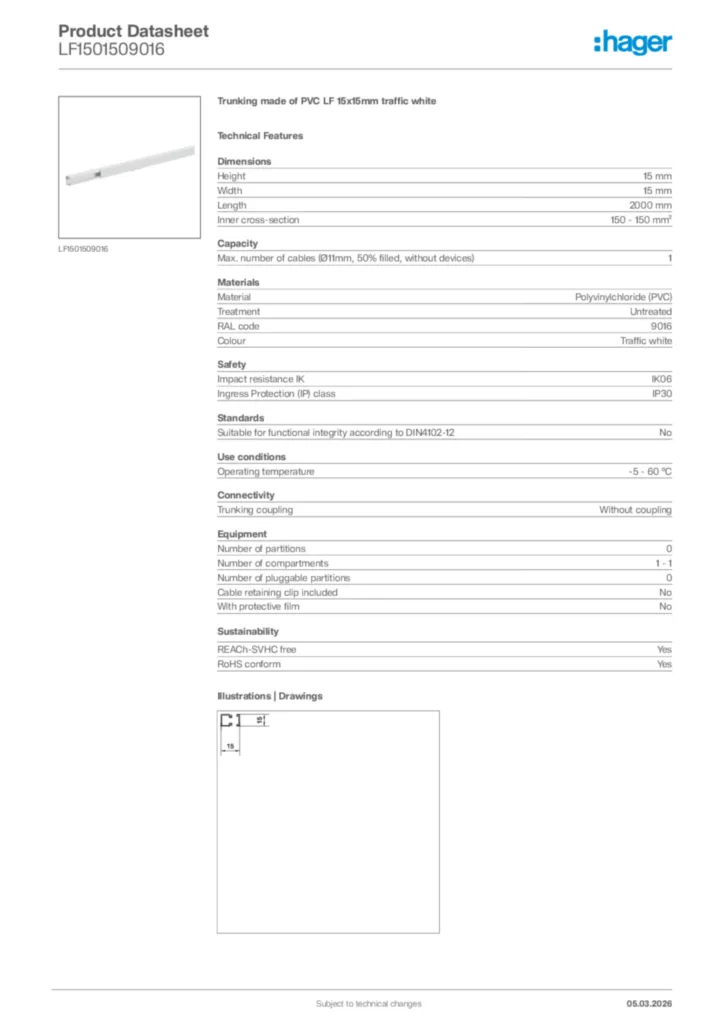

Hager Product data sheet LF1501509016
Trunking made of PVC LF 15x15mm traffic white
PDF -
DXF files
DXF files International 2023-02-02
DXF364,76 kB -
STEP files
STEP files International 2026-04-15
STP149,86 kB -
With variables
Product drawing
Product Drawing International 2023-02-02
PDF66,04 kB -
Declaration of conformity
Declaration of conformity en-GB 2026-09-30
PDF438,98 kB
More documentation
