The Hager LF 15x15 Overlapping Endcap set (10x), halogen-free in traffic white (RAL9016), neatly terminates 15x15 mm trunking, protecting and tidying cables. Quick click mounting speeds installation. Made from durable PC-ABS with IK06 impact resistance and IP30 protection, it suits -5 to 60°C environments. The overlapping design ensures a clean, secure finish for the LF 15x15 series.
EAN
4012740011556
Packaging
1 Set
PVC Trunking 15x15mm Traffic White 2m IP30 IK06 RAL9016 LF1501569016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height15 mm
-
Width15 mm
Materials
-
MaterialPC-ABS
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK06
-
Ingress Protection (IP) classIP30
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
-
With antibacterial treatmentNo
Connectivity
-
Mounting typeClick mounting
Standards
-
Suitable for functional integrity according to DIN4102-12No
-
Related SeriesLF 15x15
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

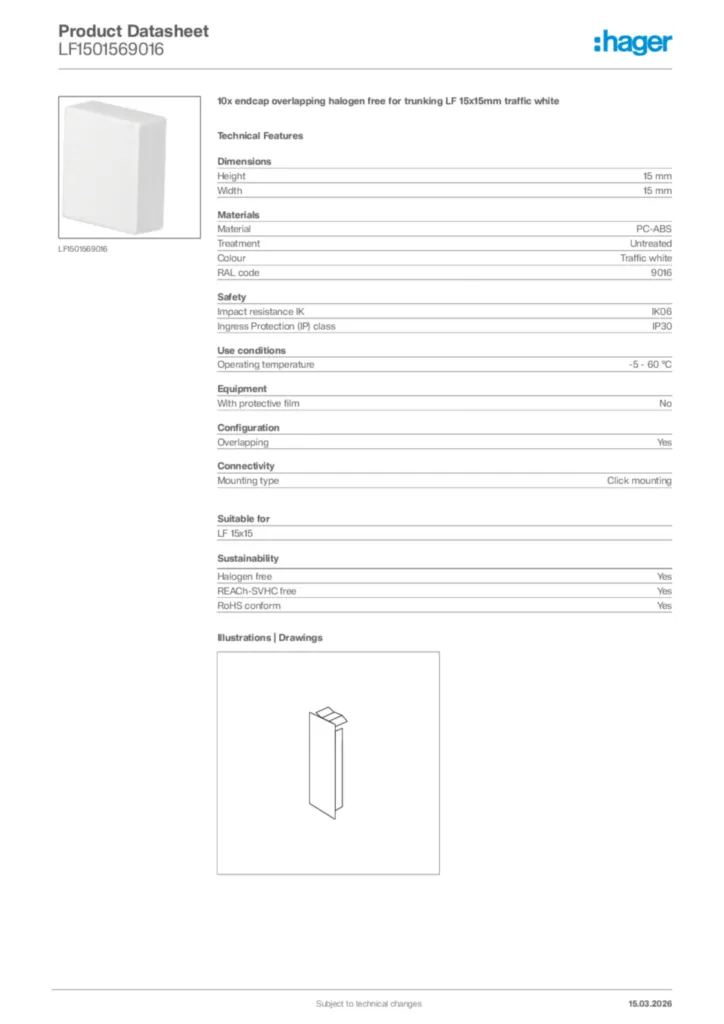

Product datasheet
Hager Product data sheet LF1501569016
10x endcap overlapping halogen free for trunking LF 15x15mm traffic white
PDF -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF455,72 kB
T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE
Declaration of conformity International 2023-02-07
PDF52,28 kB
