The Hager insulated busbar 3x(P+N) 80A fork 16mm² (54 modules, 1000 mm) streamlines power distribution to three rows of 1P+N devices. Rated 80 A at 230-400 V with 4.5 kV impulse withstand, it delivers safe, reliable linking of MCBs/RCDs. Fork-type phase busbar takes 16 mm² rigid conductors for fast, secure connections, saving space and installation time in residential and light commercial panels.
EAN
3250613741105
Packaging
12
KNX Radio blind timer quicklink 2-channel display anthracite S.1/B.3/B.7 KDN451E
Login to create a product list
You need to be logged into your myHager account to create product lists

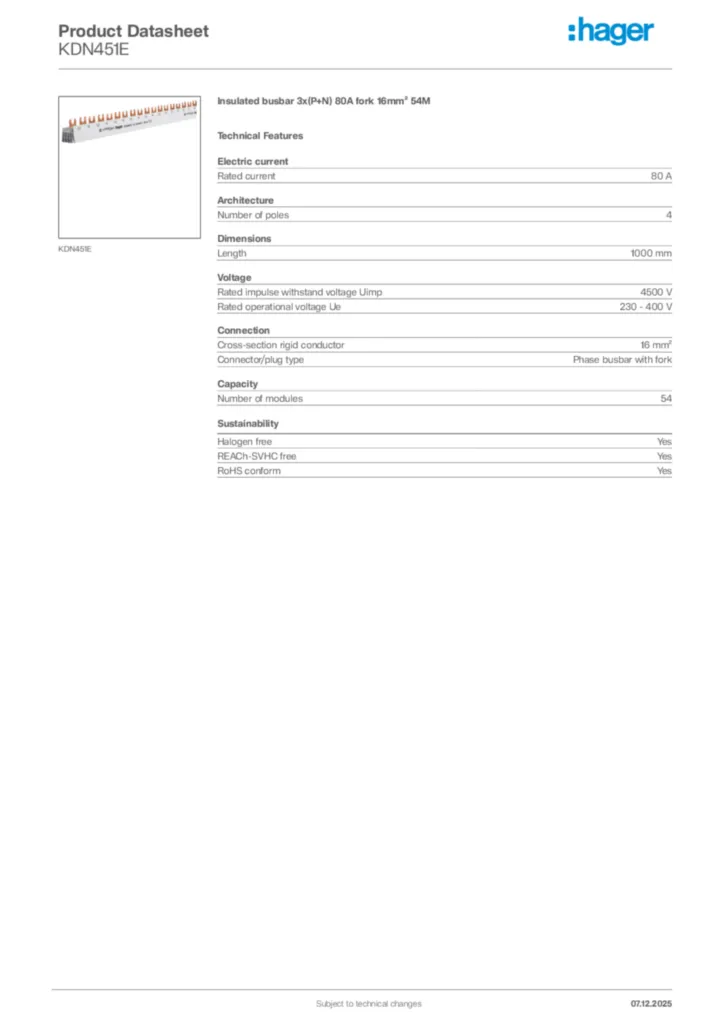

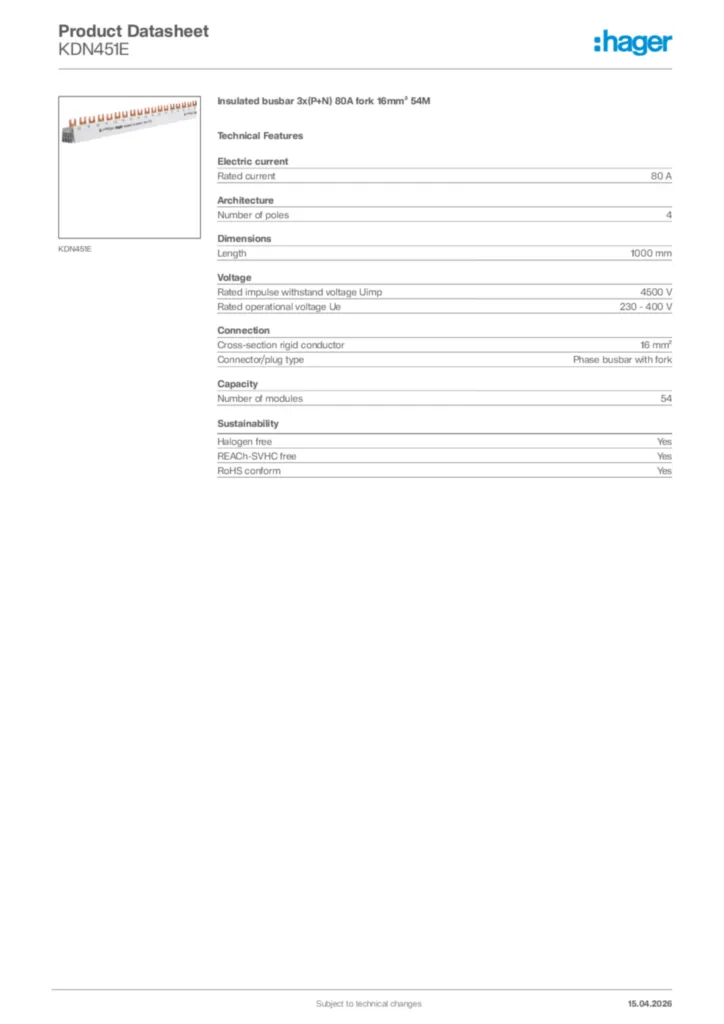

Technical properties
Electric current
-
Rated current IN80 A
Architecture
-
Number of poles4
-
Type of pole3x 1P+N
Dimensions
-
Length1000 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules54
