    • KCN325
    The Hager 3-row interrow distribution bar for RCCBs (125 mm) enables safe power distribution across consumer unit rows. Rated 63 A with 2 poles, it ensures reliable linking and protection, with 4 kV impulse withstand. At 271 mm, it fits standard panels and accepts 16 mm² rigid conductors for secure, quick wiring. Ideal for neat, efficient RCCB interconnection in residential and light commercial boards.
    EAN
    3250613730147
    VPE
    6 pieces
    • Busbar

    Insulated phase busbar 1P 100A prong 20mm² 57 modules 1m 415V KCN325

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Insulated phase busbar 1P 100A prong 20mm² 57 modules 1m 415V

    KCN325

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Elec­tric current
    • Rated current IN
      63 A
    Archi­tec­ture
    • Number of poles
      2
    Dimen­sions
    • Length
      271 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4000 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      16 mm²

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Busbar RCCB 3P+N 2R left (English )
    PDF
    411,39 kB
    REACH declaration KCN325
    PDF
    RoHS report KCN325
    PDF

    Downloads

    • Image KCN325 | Hager UK

      Product Image KCN325

    • GeneratedProductDatasheet

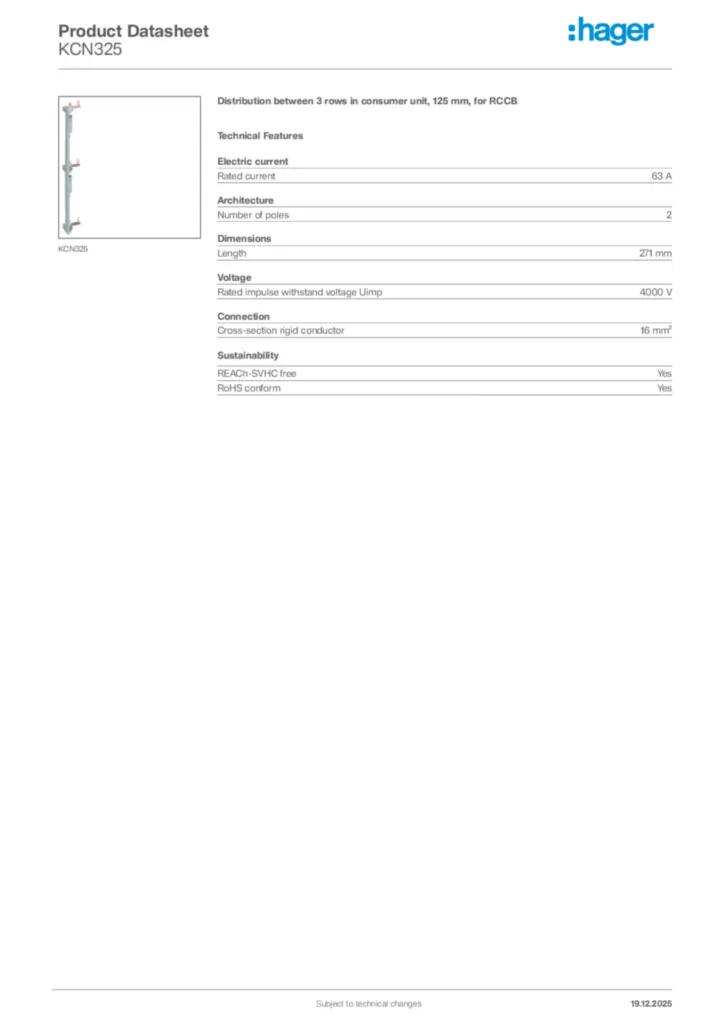

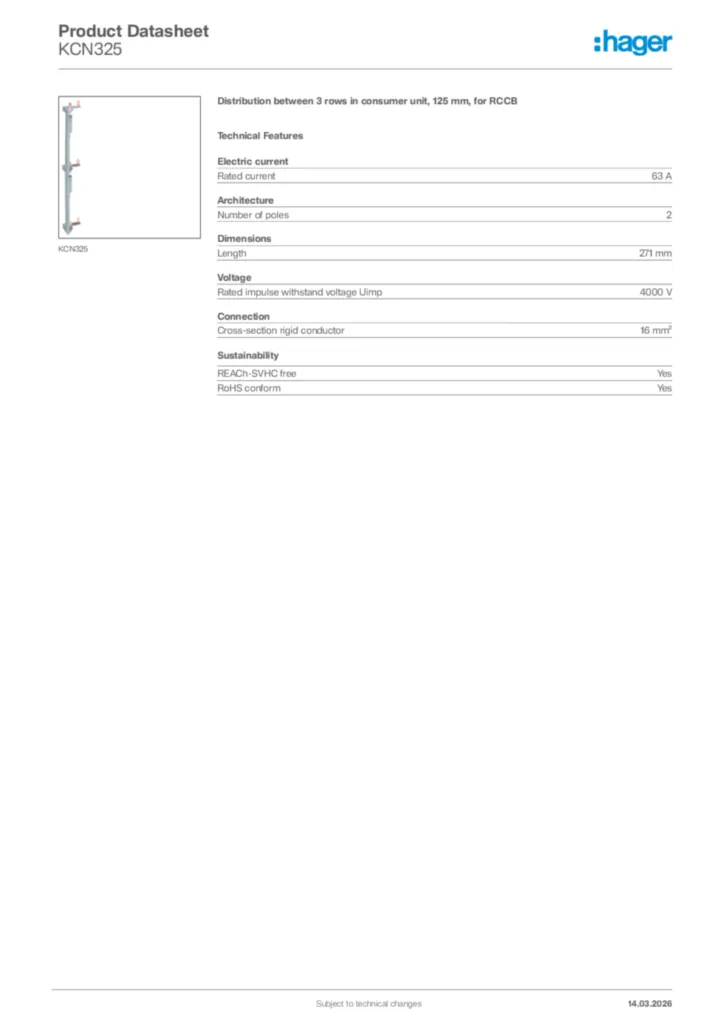

      Image Hager Product data sheet KCN325 | Hager UK

      Hager Product data sheet KCN325

      Distribution between 3 rows in consumer unit, 125 mm, for RCCB

      PDF

    • ProductECDeclaration

      Image Declaration of conformity en-US 2026-07-14 | Hager UK

      Declaration of conformity en-US 2026-07-14

      PDF
      346,34 kB
