The Hager insulated 1P 63A prong busbar (blue) streamlines phase distribution across up to 12 modules, ideal for residential and commercial boards. Rated 415 V with 4 kV impulse withstand, it ensures robust performance. Its 10 mm² pin design and 195 mm length provide quick, reliable connection to MCBs, while insulation boosts safety and the blue color aids circuit identification.
EAN
3250613720599
VPE
10 pieces
Insulated phase busbar 3P+N 63A pin 12 modules KB963N
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles1
Dimensions
-
Length195 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules11
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

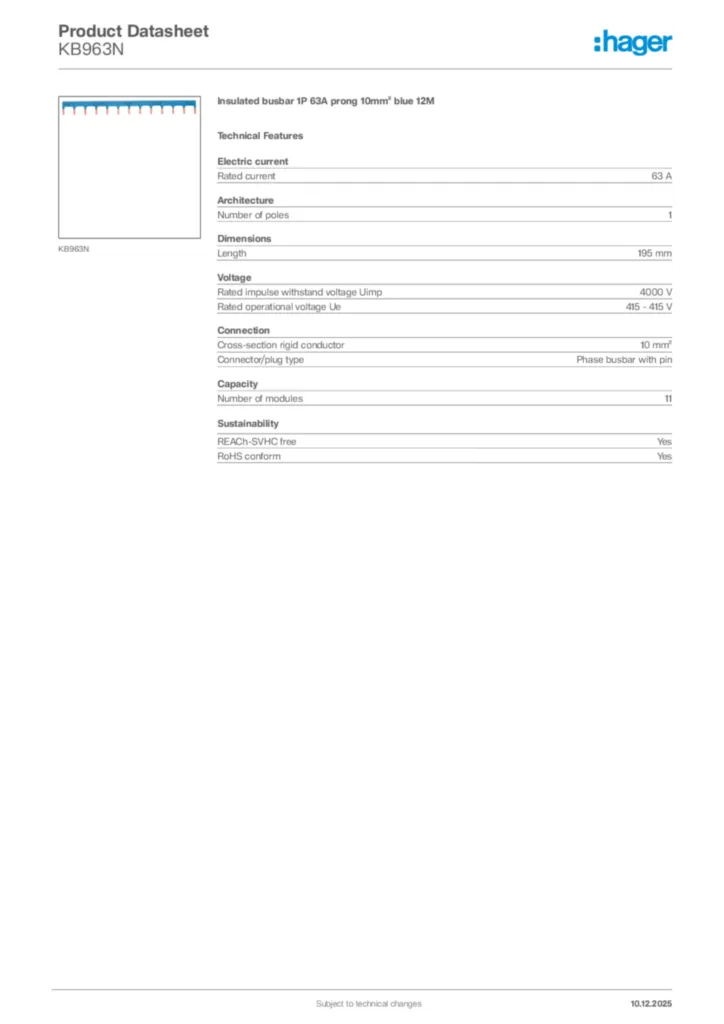

Hager Product data sheet KB963N
Insulated busbar 1P 63A prong 10mm² blue 12M
PDF -
ProductECDeclaration
Declaration of conformity en-US 2026-07-14
PDF261,74 kB
