Insulated busbar 1P 100A prong 20mm² 24M KB190C

EAN
3250613720315
Packaging
10

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Insulated busbar 1P 100A prong 20mm² 24M

KB190C

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Elec­tric current
  • Rated current
    100 A
Archi­tec­ture
  • Number of poles
    1
Dimen­sions
  • Length
    420 mm
Voltage
  • Rated impulse with­stand voltage Uimp
    4000 V
  • Rated oper­a­tional voltage Ue
    415 - 415 V
Connec­tion
  • Cross-sec­tion rigid conductor
    20 mm²
  • Connect­or/plug type
    Phase busbar with pin
Capa­city
  • Number of modules
    24

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Insulated busbar 3P 63A fork 10mm² 12M
PDF
470,84 kB
Hager REACH declaration KB190C
PDF
Hager RoHS report KB190C
PDF

Downloads

  • Image KB190C | Hager Africa

    Product Image KB190C

  • Product datasheet

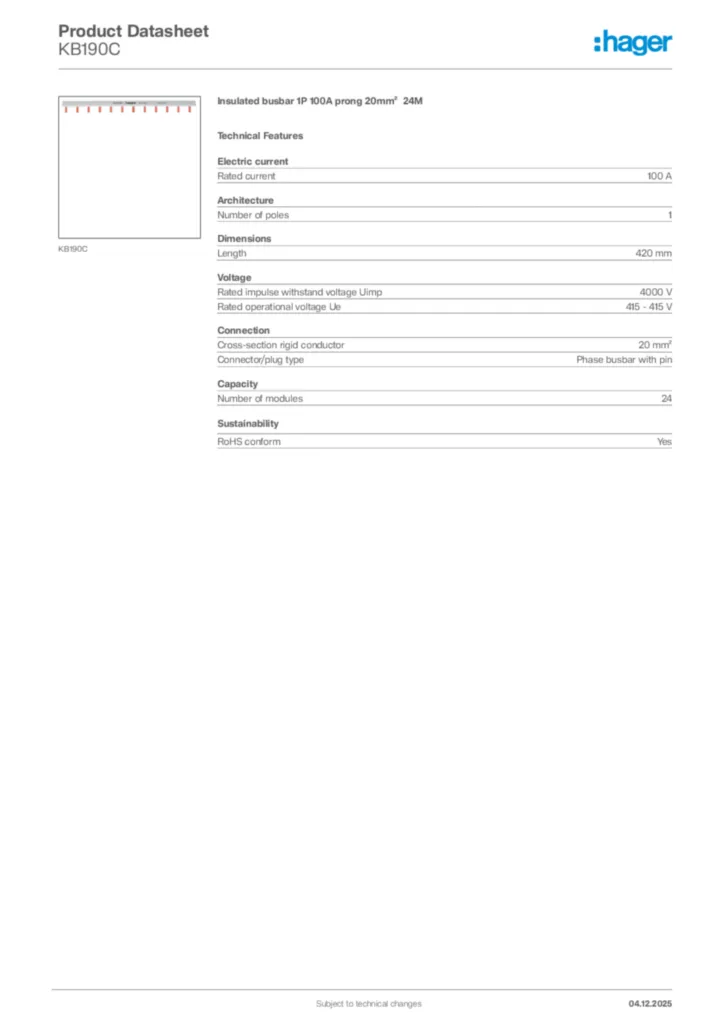

    Image Hager Product data sheet KB190C | Hager Africa
