    • Home
    • Catalog
    • Distri­bu­tion systems
    • Terminal Connec­­tions & Busbar
    • Busbar
    • KB190B
    EAN
    3250613720322
    Packaging
    10
    • Busbar

    Insulated busbar 1P 100A prong 20mm² 57M KB190B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 1P 100A prong 20mm² 57M

    KB190B

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Elec­tric current
    • Rated current
      100 A
    Archi­tec­ture
    • Number of poles
      1
    Dimen­sions
    • Length
      1000 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4000 V
    • Rated oper­a­tional voltage Ue
      415 - 415 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      20 mm²
    • Connect­or/plug type
      Phase busbar with pin
    Capa­city
    • Number of modules
      57

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Insulated busbar 3P 63A fork 10mm² 12M
    PDF
    470,84 kB
    Hager REACH declaration KB190B
    PDF
    Hager RoHS report KB190B
    PDF

    Downloads

    • Image KB190B | Hager Africa

      Product Image KB190B

    • Product datasheet

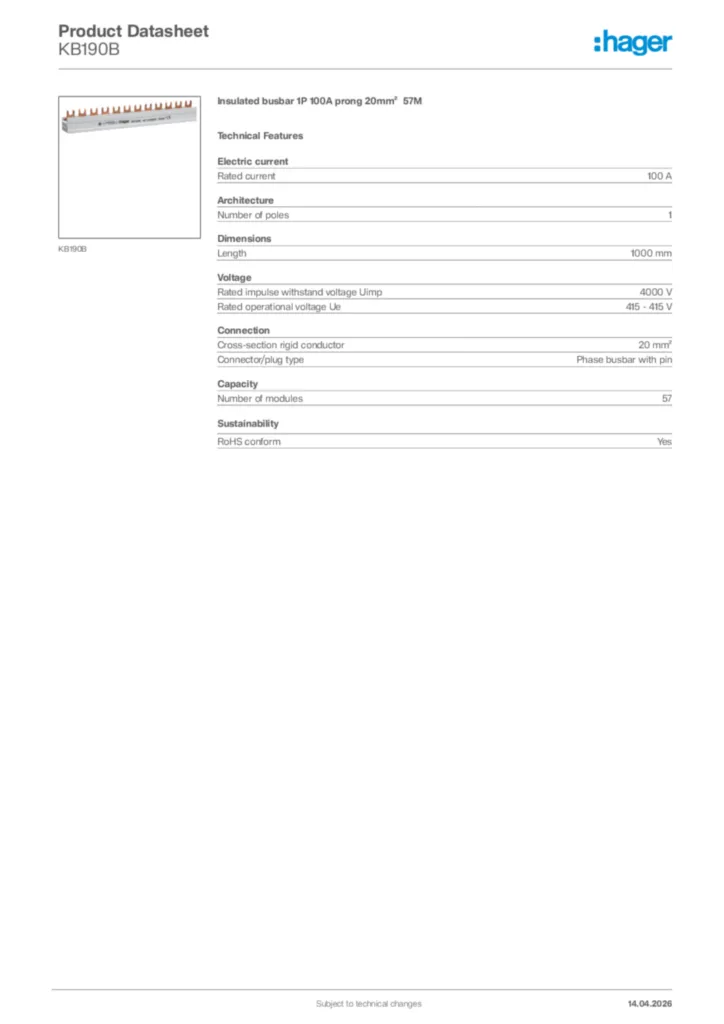

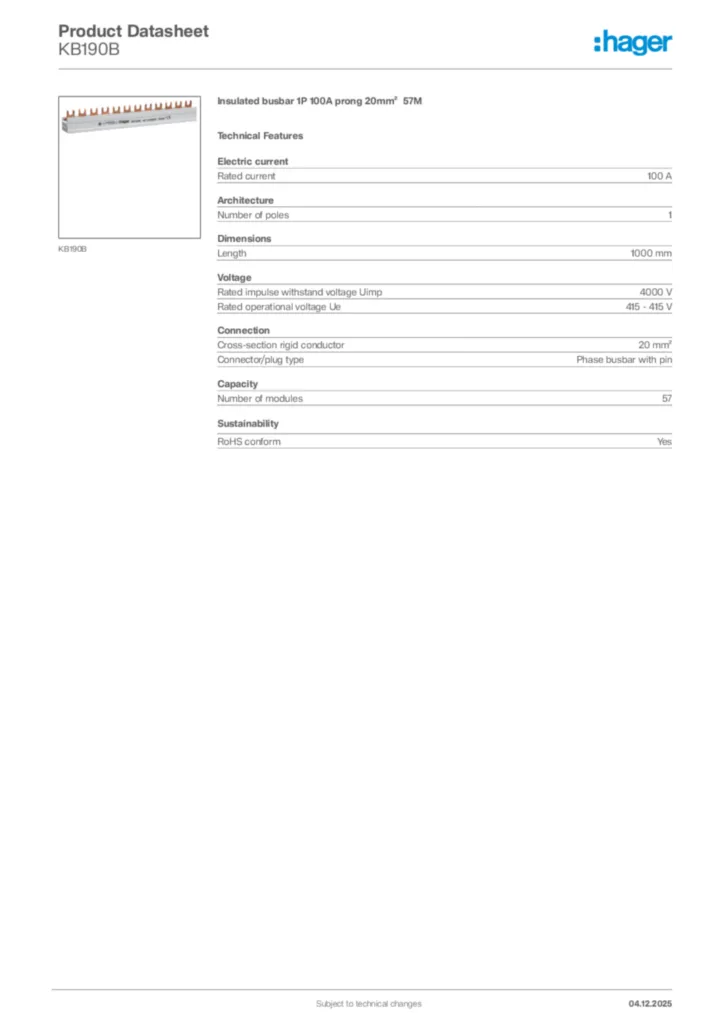

      Image Hager Product data sheet KB190B | Hager Africa

      Hager Product data sheet KB190B

      Insulated busbar 1P 100A prong 20mm² 57M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager Africa

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager Africa

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
