The Hager h1600 3P 1250A switch is a heavy-duty three-pole isolator for main distribution up to 690 V. With 1250 A rating, 8 kV impulse withstand and 800 V insulation, it delivers reliable, fast switching (10 ms). Toggle operated with optional motor drive, IP4X, interlockable, and accepts 3×240 mm² cables. Ideal for industrial/commercial panels at 50/60 Hz and −25 to +70 °C.

EAN

3250613363253

Packaging

1 Piece

Switch disconnectors in moulded case circuit breaker design

Auxiliary contact centralised control 1A Screw terminal 0.5 Module HCF980H

Accessories
Technical properties
Environmental value
Documentations
More products

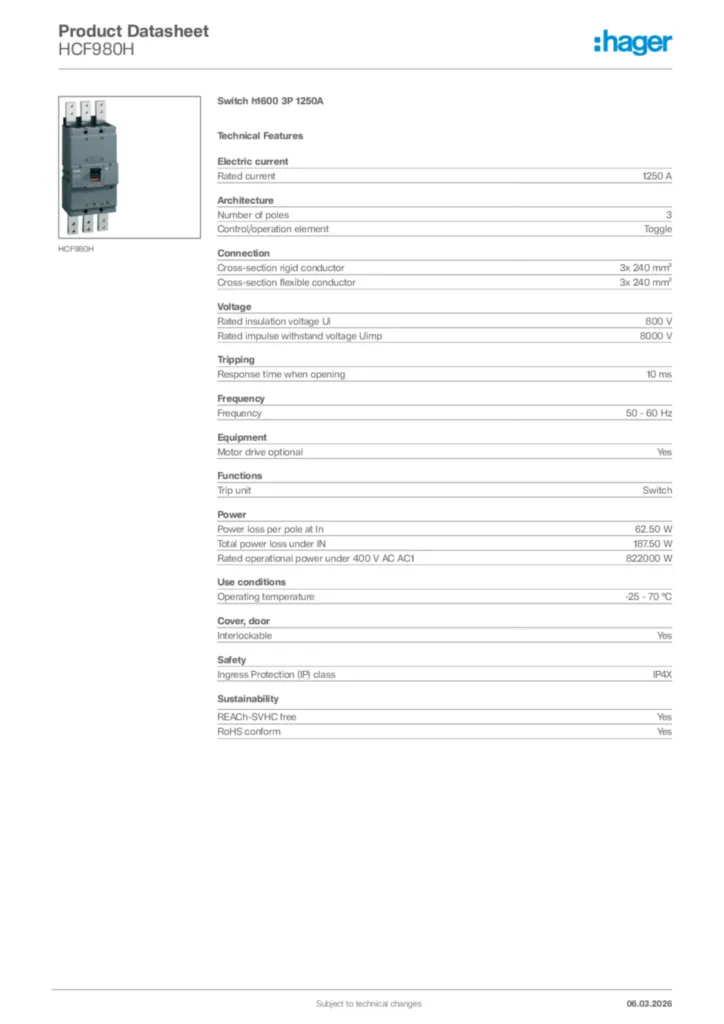

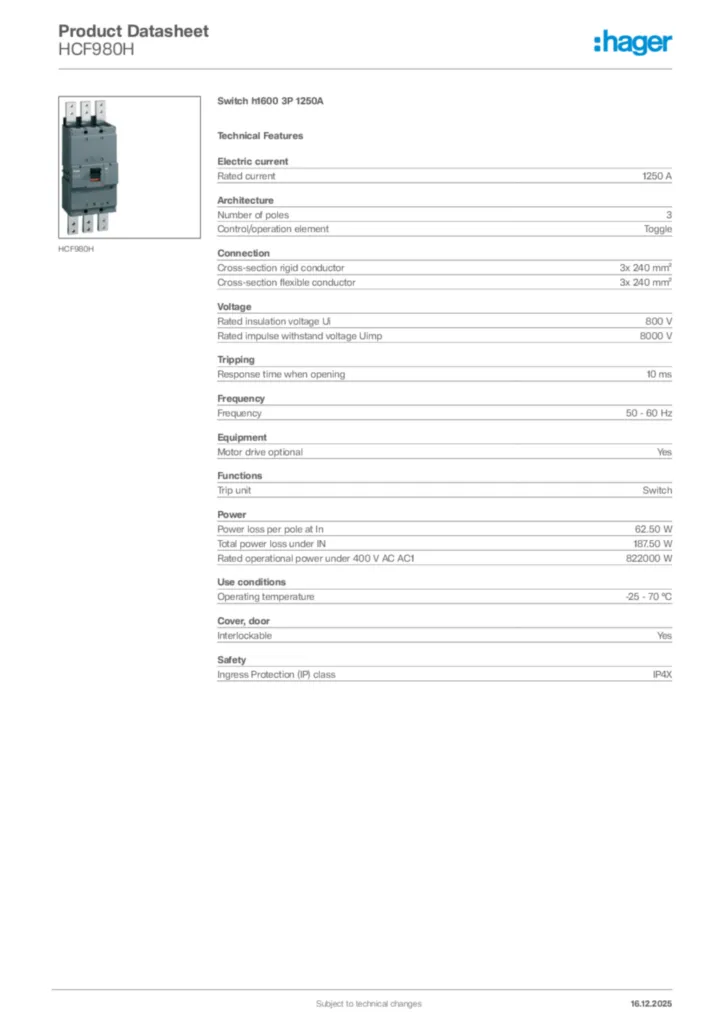

Download the data sheet

Complete your system

Under voltage coil 10 products available
Auxiliaries contact block 4 products available
Auxiliaries interlocking cable 1 products available
Handle for power circuit breaker 2 products available
Motor operator 2 products available
Padlock barrier for switch 1 products available

Technical properties

Rated current

1250 A

Number of poles

3
Control/operation element

Toggle

Cross-section rigid conductor

3x 240 mm²
Cross-section flexible conductor

3x 240 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V
Rated operational voltage Ue

220 - 690 V

Response time when opening

10 ms

Frequency

50 - 60 Hz

Motor drive optional

Yes

Trip unit

Switch

Power loss per pole at In

62.50 W
Total power loss under IN

187.50 W
Rated operational power under 400 V AC AC1

822000 W

Operating temperature

-25 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP4X

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
