The Hager delayed Undervoltage Release for h800-h1600 4‑pole breakers trips the breaker if control voltage is lost, safeguarding critical circuits. Its delay avoids nuisance tripping from brief dips. Powered at 24 VDC, it draws just 0.70 VA with 0.70 W loss and offers IP4X protection. Ideal for safety interlocking and dependable remote tripping in large distribution panels.

EAN

3250613152376

Packaging

1 Piece

Moulded case circuit breakers electromechanical accessories

Undervoltage Release Delayed h1600 4P 220-240V AC IP4X HXF051H

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Inrush power absorbed

0.70 VA
Total power loss under IN

0.70 W

Ingress Protection (IP) class

IP4X

Command voltage AC

0 - 0 V
Command voltage DC

24 - 24 V

Delayed

Yes

Downloads

Product Image HXF051H

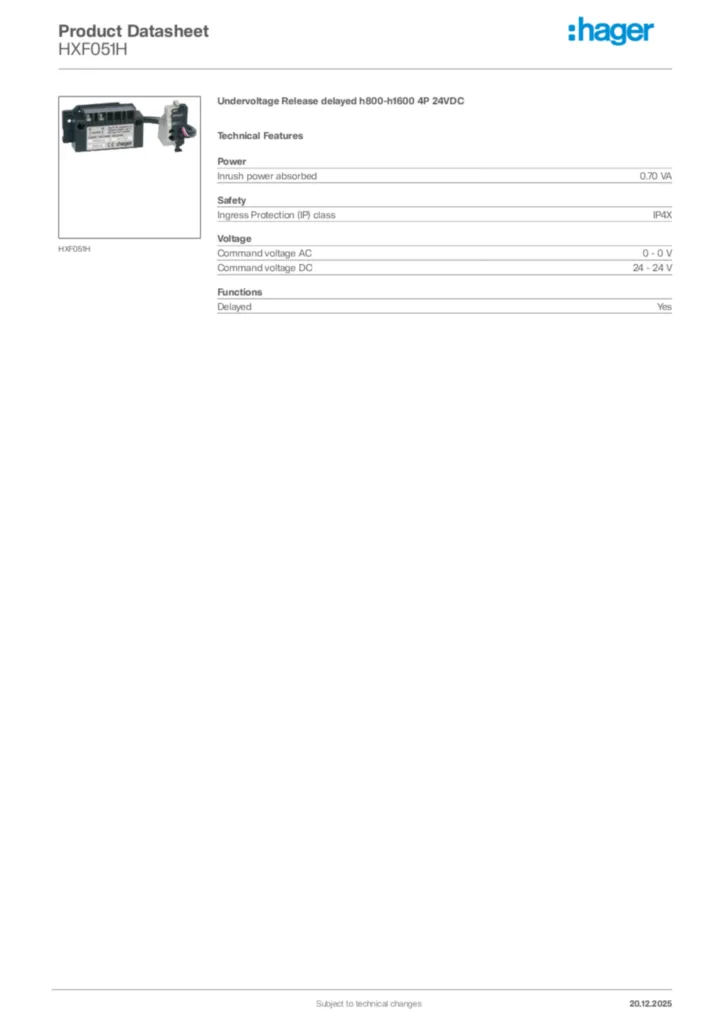

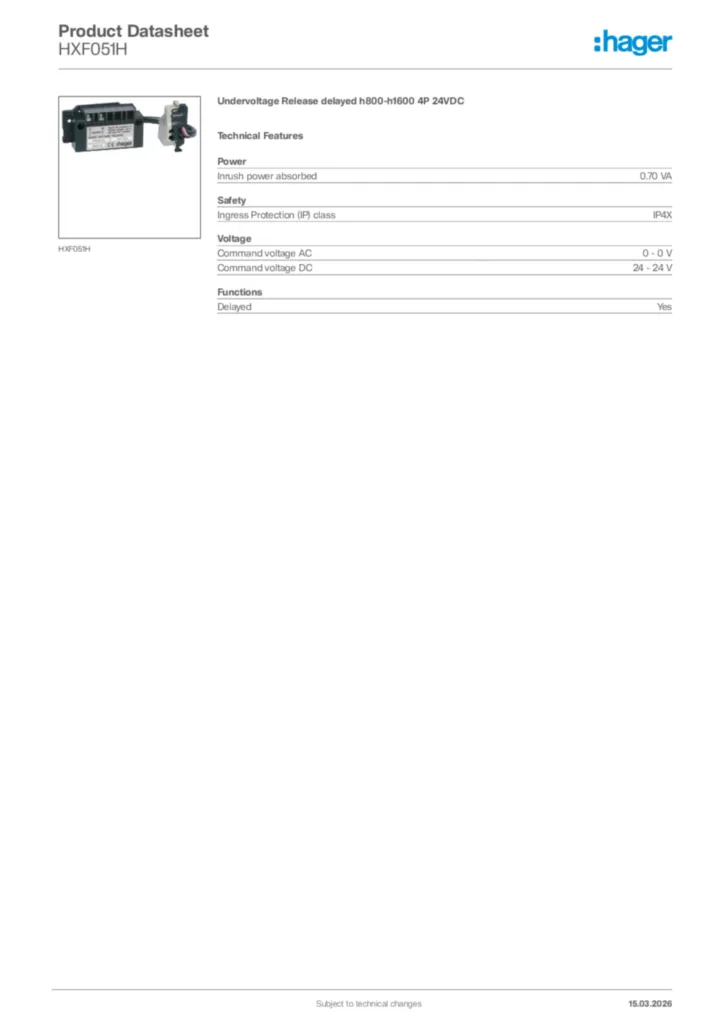

Product datasheet

Hager Product data sheet HXF051H

Undervoltage Release delayed h800-h1600 4P 24VDC
