The Hager Shunt Trip Release h1600 24V DC enables remote opening of h1600 breakers for emergency shutdowns and interlocking. Powered by a 24 V DC command, it features very low inrush power (0.72 VA) and IP4X protection for reliable operation. Ideal for load shedding, fire safety interfaces, and automated protection in industrial and commercial panels, enhancing safety and system control.

EAN

3250613113438

Packaging

1 Piece

Moulded case circuit breakers electromechanical accessories

Shunt trip release h1600 380-450V AC IP4X 2.93VA inrush HXF001H

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Inrush power absorbed

0.72 VA

Ingress Protection (IP) class

IP4X

Command voltage AC

0 - 0 V
Command voltage DC

24 - 24 V
Rated operational voltage Ue

0 - 0 V
Rated operational voltage in DC

24 - 24 V

Downloads

Product Image HXF001H

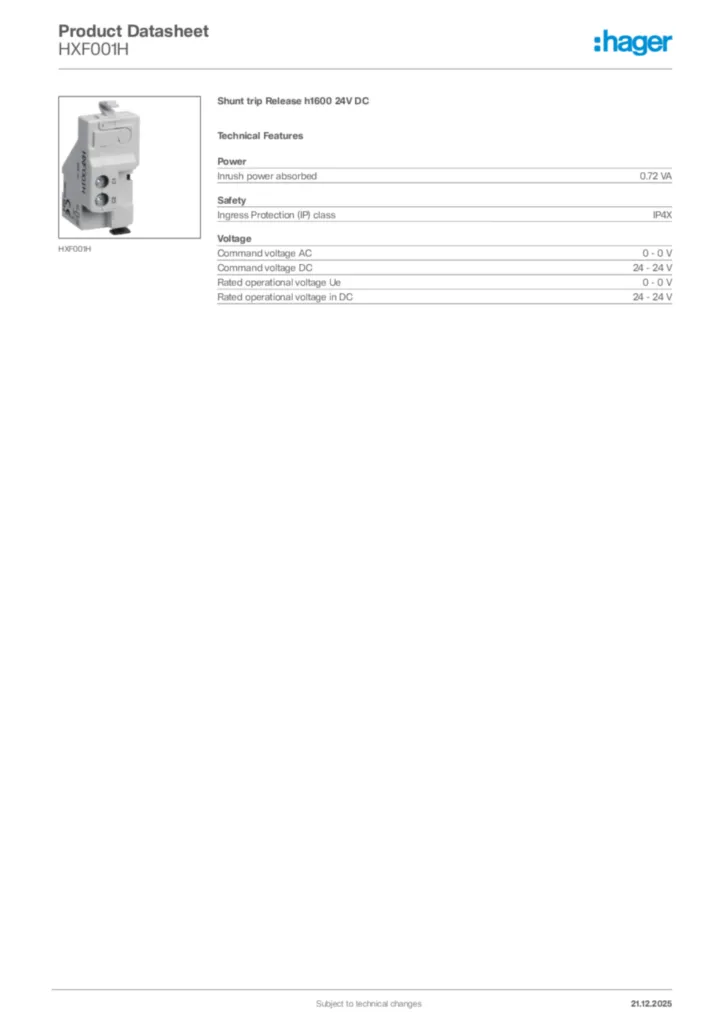

Product datasheet

Hager Product data sheet HXF001H

Shunt trip Release h1600 24V DC

PDF
Declaration of conformity

Declaration

Declaration of conformity International 2022-06-20

PDF

329,36 kB

Declaration of conformity en-US 2026-07-14

PDF

343,86 kB
