The Hager Shunt Trip Release h1600 380-450 V AC enables remote tripping of h1600 circuit breakers for emergency shutdowns and interlocks. Operating at 380-450 V AC with just 2.93 VA inrush, it offers reliable, fast disconnection. IP4X protected, it suits demanding panels and integrates easily into automation and safety systems where controlled, remote breaker opening is required.

EAN

3250613113476

Packaging

1 Piece

Moulded case circuit breakers electromechanical accessories

Undervoltage release 100-120 V DC for h800/h1000/h1600, IP4X HXF005H

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Inrush power absorbed

2.93 VA

Ingress Protection (IP) class

IP4X

Command voltage AC

380 - 450 V
Command voltage DC

0 - 0 V
Rated operational voltage Ue

380 - 450 V
Rated operational voltage in DC

0 - 0 V

Downloads

Product Image HXF005H

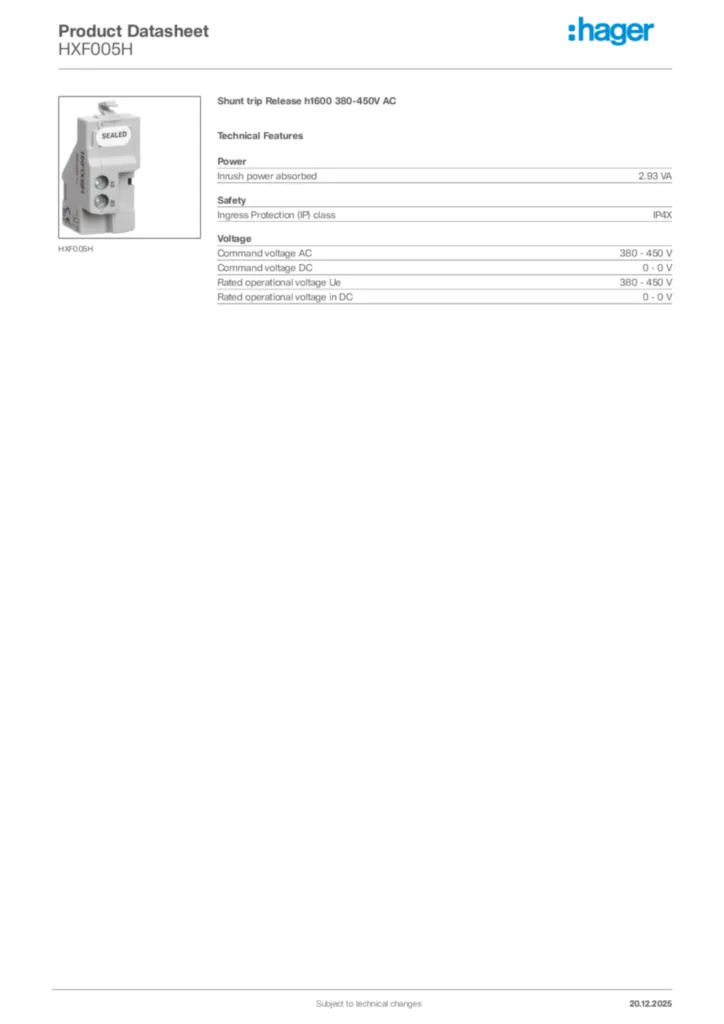

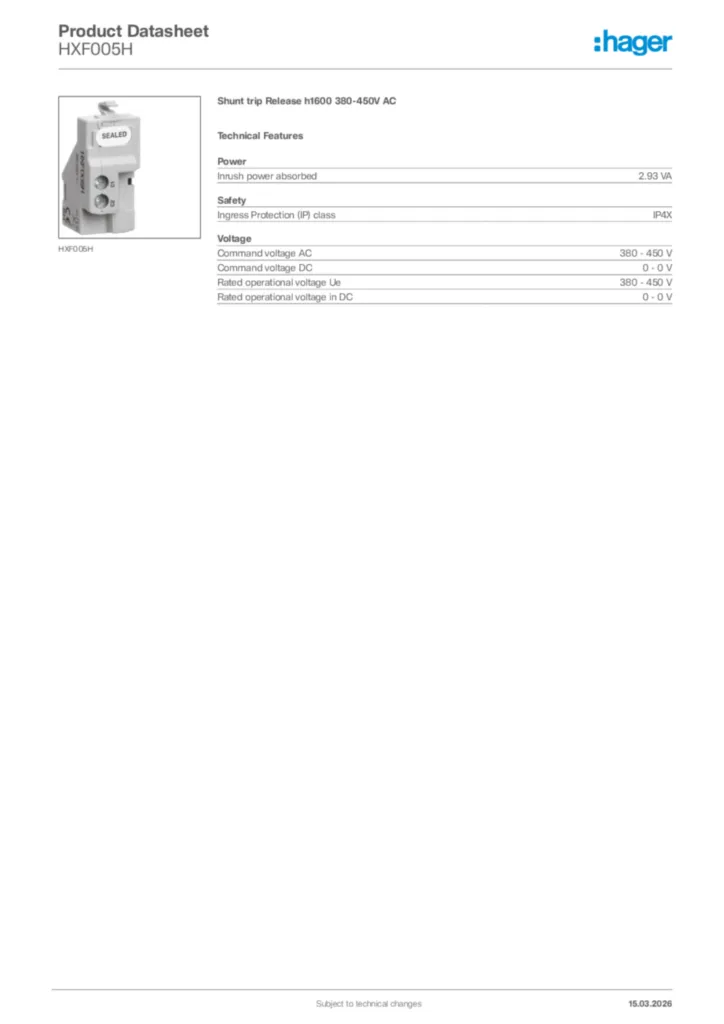

Product datasheet

Hager Product data sheet HXF005H

Shunt trip Release h1600 380-450V AC

PDF
Declaration of conformity

Declaration

Declaration of conformity International 2022-06-20

PDF

329,36 kB

Declaration of conformity en-US 2026-07-14

PDF

343,86 kB

More documentation
