The Hager h1000 4P 1000A switch disconnector provides reliable isolation and switching for heavy-duty LV installations. Rated 220-690 V (Ui 800 V, Uimp 8 kV) and 50-60 Hz, it offers rapid 10 ms opening and up to 658 kW AC-1 at 400 V. Toggle operated with optional motor drive, interlockable, IP4X, and accepts 2×240 mm² rigid or flexible cables. Ideal as a main switch for industrial and large commercial panels.

EAN

3250613363239

Packaging

1 Piece

Switch disconnectors in moulded case circuit breaker design

Switch disconnector 4P 800A 690V Toggle IP4X H1000 Motor drive ready HCE971H

Accessories
Technical properties
Environmental value
Documentations
More products

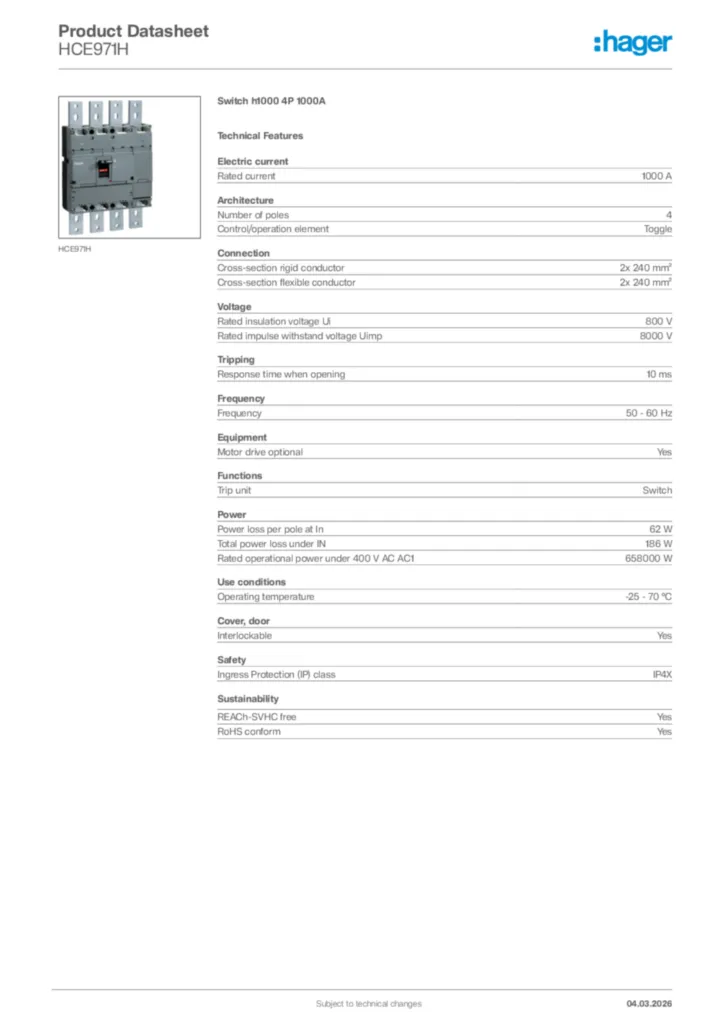

Download the data sheet

Complete your system

Handle for power circuit breaker 2 products available
Shunt release 6 products available
Under voltage coil 10 products available
Auxiliaries contact block 4 products available
Auxiliaries interlocking cable 2 products available
Motor operator 2 products available

Technical properties

Rated current

1000 A

Number of poles

4
Control/operation element

Toggle

Cross-section rigid conductor

2x 240 mm²
Cross-section flexible conductor

2x 240 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V
Rated operational voltage Ue

220 - 690 V

Response time when opening

10 ms

Frequency

50 - 60 Hz

Motor drive optional

Yes

Trip unit

Switch

Power loss per pole at In

62 W
Total power loss under IN

186 W
Rated operational power under 400 V AC AC1

658000 W

Operating temperature

-25 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP4X

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
