The Hager Shunt Trip Release 24 V DC for h250-h1000 MCCBs enables remote opening of the breaker for emergency stop, load shedding or interlocking. Operating at 24 V DC with just 0.72 VA inrush, it ensures efficient, reliable tripping. IP4X adds robust panel protection. Ideal for industrial and commercial boards needing centralized safety control and rapid disconnection.

EAN

3250613369415

Packaging

1 Piece

Moulded case circuit breakers electromechanical accessories

Shunt trip 200-240V AC IP4X 3.36VA for x160 P160 x250 P250 x630 P630 HXC001H

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Inrush power absorbed

0.72 VA

Ingress Protection (IP) class

IP4X

Command voltage AC

0 - 0 V
Command voltage DC

24 - 24 V
Rated operational voltage Ue

0 - 0 V
Rated operational voltage in DC

24 - 24 V

Downloads

Product Image HXC001H
Product datasheet

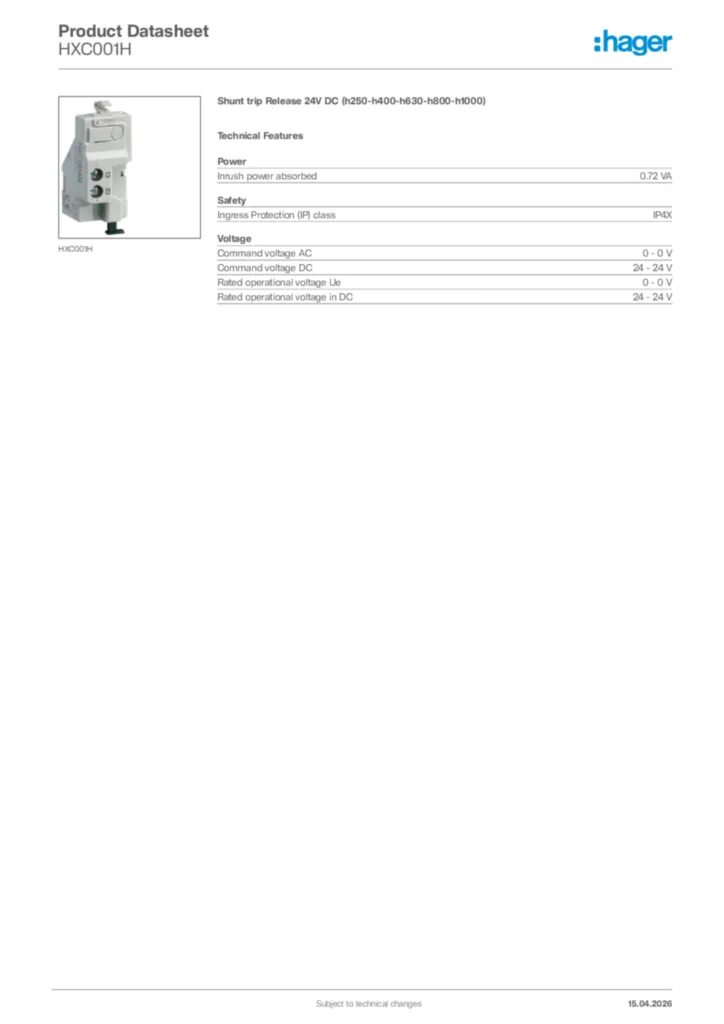

Hager Product data sheet HXC001H

Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)

PDF
Declaration of conformity

Declaration

Declaration of conformity International 2022-06-20

PDF

329,36 kB

Declaration of conformity en-US 2026-07-14

PDF

343,86 kB
