The Hager Shunt Trip Release 100-120 V AC for h250-h1000 MCCBs enables remote tripping of the breaker for emergency-off and safety interlocks. Rated 100-120 V AC (Ue) with only 1.68 VA inrush, it provides reliable actuation with low burden. IP4X ensures added protection. Ideal for industrial and commercial panels requiring fast, remote disconnection and seamless integration with control systems.

EAN

3250613369439

Packaging

1 Piece

Moulded case circuit breakers electromechanical accessories

Shunt trip 48V DC IP4X for x160/P160/x250/P250/x630/P630 HXC003H

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Inrush power absorbed

1.68 VA

Ingress Protection (IP) class

IP4X

Command voltage AC

100 - 120 V
Command voltage DC

0 - 0 V
Rated operational voltage Ue

100 - 120 V
Rated operational voltage in DC

0 - 0 V

Downloads

Product Image HXC003H
Product datasheet

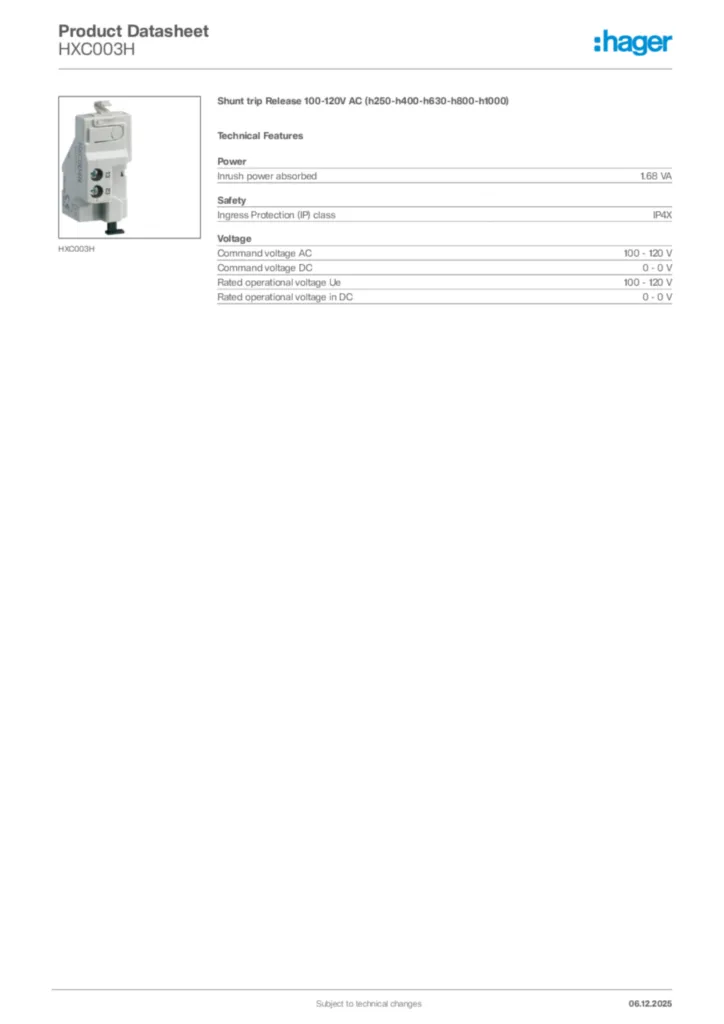

Hager Product data sheet HXC003H

Shunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)

PDF
Declaration of conformity

Declaration

Declaration of conformity International 2022-06-20

PDF

329,36 kB

Declaration of conformity en-US 2026-07-14

PDF

343,86 kB
