The Hager h1000 4P 800A switch is a heavy-duty main isolator for industrial and large commercial panels, enabling safe on-load switching and isolation up to 690 V. With 4 poles and 800 A rating, 10 ms opening, Ui 800 V and 8 kV impulse withstand, it ensures robust performance. IP4X and interlockable for safety, optional motor drive for remote control, accepts 2×240 mm² cables, 50/60 Hz, −25…70 °C.

EAN

3250613363215

Packaging

1 Piece

Switch disconnectors in moulded case circuit breaker design

Switch disconnector h1600 4P 1250A 690V Ui 800V Uimp 8kV Toggle HCE801H

Accessories
Technical properties
Environmental value
Documentations
More products

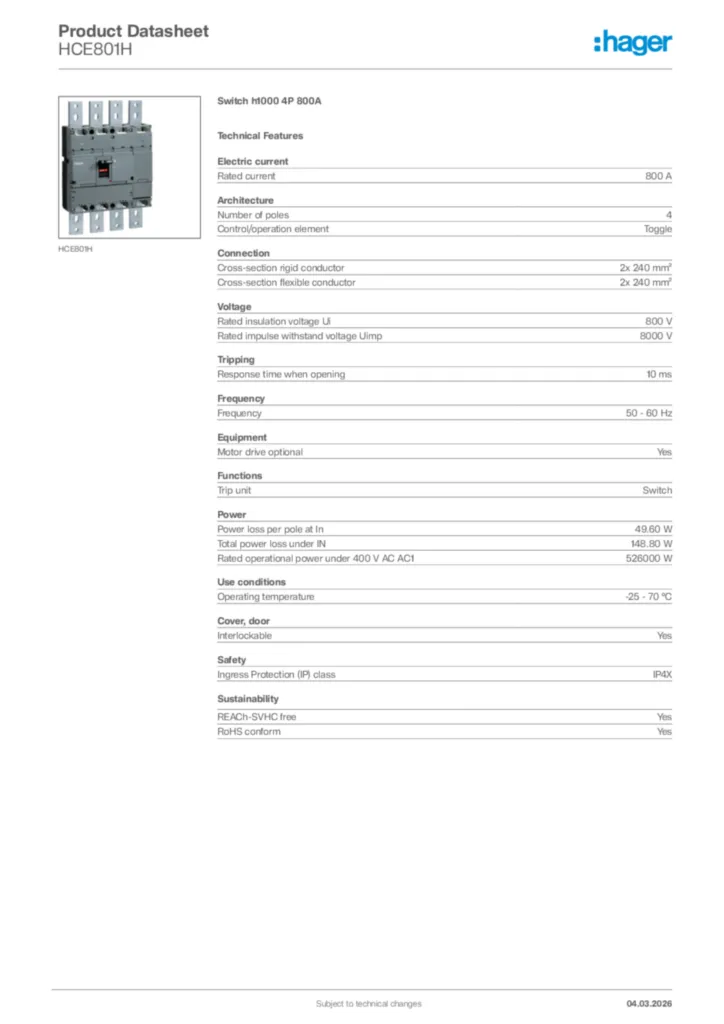

Download the data sheet

Complete your system

Motor operator 2 products available
Shunt release 6 products available
Under voltage coil 10 products available
Auxiliaries contact block 4 products available
Auxiliaries interlocking cable 2 products available
Locking interlocking functions 1 products available

Technical properties

Rated current

800 A

Number of poles

4
Control/operation element

Toggle

Cross-section rigid conductor

2x 240 mm²
Cross-section flexible conductor

2x 240 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V
Rated operational voltage Ue

220 - 690 V

Response time when opening

10 ms

Frequency

50 - 60 Hz

Motor drive optional

Yes

Trip unit

Switch

Power loss per pole at In

49.60 W
Total power loss under IN

148.80 W
Rated operational power under 400 V AC AC1

526000 W

Operating temperature

-25 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP4X

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
