FWB encl. univers,IP44,class II, 4x26mod.,650x550x161mm,QuickConnect FWB42M2
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Separation plate for meter/distribution boards 2 products available -
Mounting plate for distribution board 5 products available -
Built-in field for telecommunications 3 products available -
Rail terminal bar 3 products available -
Mounting accessories 1 products available -
Gland plate for enclosure 3 products available
Complete your system
-
UZ31M5
Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm
-
UZ32M5Mounting plate univers, for telcommunication, 2field, for enclosure height 500mm
-
UZ21M6Mounting plate, univers, 240x247mm, perforated, with mounting screws
-
UZ31M6Mounting plate, univers, 390x247mm, perforated, with mounting screws
-
UZ41M6Mounting plate, univers, 570x247mm, perforated, with mounting screws
-
FZ451NLock, univers, square 7mm, with 1 key, for enclosure IP44/54
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ597NLock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
-
FZ821NLock, univers, square 8mm with seal cover, for enclosure IP44, with 1 key
-
FZ823NLock, univers, plastic slot with seal cover for enclosure IP44
-
FZ824NLock, univers, cylinder Nr.1242E with seal cover and 2 keys
-
FZ226Sealing cap, univers, for Door of IP44/54 enclosures
Technical properties
Connection
-
Number of conduit inlets8
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN125 A
Equipment
-
Number of rails4
-
Number of rows4
-
Number of section in width2
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules104
Functions
-
With conduit inletsYes
Dimensions
-
Height650 mm
-
Width550 mm
-
Depth165 mm
-
Built-in height650 mm
-
Built-in width550 mm
-
Built-in depth161 mm
-
Number of width units26
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Type of handleHinged pattern handle
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK09
-
Ingress Protection (IP) classIP44
-
Locking typeBar lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

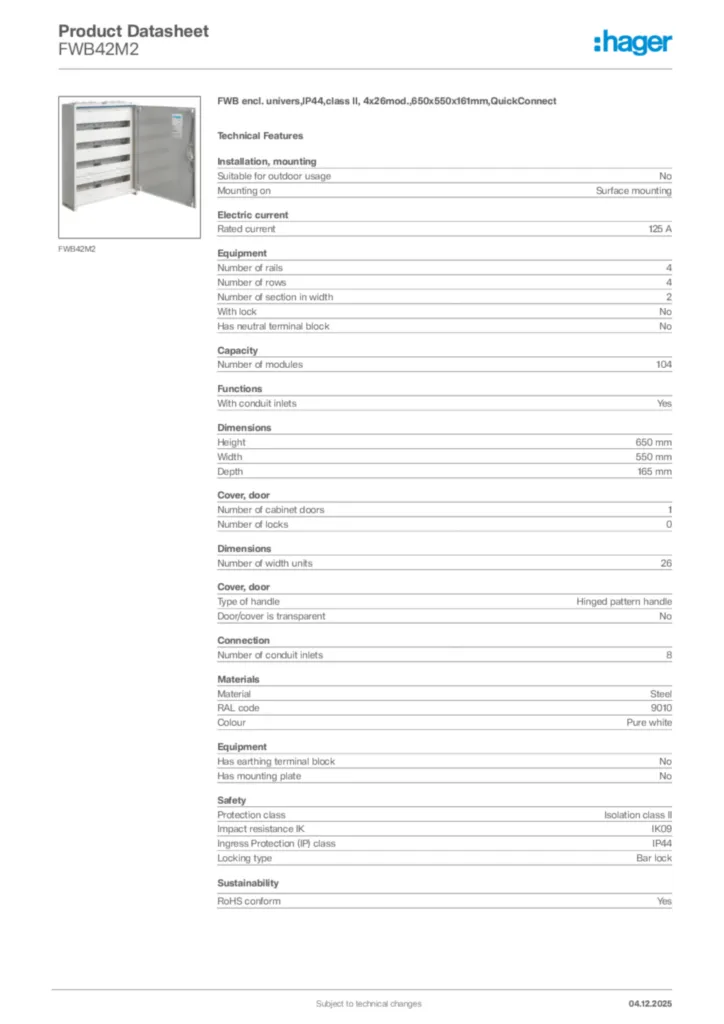

Product datasheet
Hager Product data sheet FWB42M2
FWB encl. univers,IP44,class II, 4x26mod.,650x550x161mm,QuickConnect
PDF -
Installation manual
Mounting instruction for FWB / FP / ZB enclosure
Wall- / door- and flange mounting
PDF1,88 MB -
Handbook
6LE007924C_ENSurface boards and accessories (EN)
PDF34,45 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-05-12
PDF332,34 kB
Declaration
Declaration of conformity International 2022-03-09
PDF1,44 MB
Declaration of conformity en-GB 2026-07-22
PDF1,07 MB
Declaration of conformity en-GB 2026-07-22
PDF951,28 kB
