Installation column floor, single sided, height 0.65m, Clip45, anodized DBP45650ELN

EAN
4012740857055
Packaging
2

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Installation column floor, single sided, height 0.65m, Clip45, anodized

DBP45650ELN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Dimen­sions
  • Depth
    65 mm
  • Width
    65 mm
  • Install­a­tion height
    0.65 - 0.65 m
  • Height adjust­ment
    0
  • Inner cross-sec­tion
    1850 - 1850 mm²
  • Pole shape
    Rect­an­gular
  • Lid width
    45 mm
Cover, door
  • Number of mount­able lids
    1
Equip­ment
  • Adjustable
    No
  • Is port­able
    No
Cable
  • Cable entry posi­tion
    Bottom
Install­a­tion, mounting
  • Ceiling mounting possible
    No
  • Suit­able for ground mounting
    Yes
Mater­ials
  • Material
    Aluminium
  • Treat­ment
    Anod­ised
  • Colour
    Aluminium
Config­ur­a­tion
  • Number of sides for install­a­tion
    Single side

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

PEP - Non-equipped service posts - series DAP45 & DAP80 & DBP45 (english)
PDF
393,82 kB
Hager REACH declaration DBP45650ELN
PDF
Hager RoHS report DBP45650ELN
PDF

Downloads

  • Image DBP45650ELN | Hager Africa

    Product Image DBP45650ELN

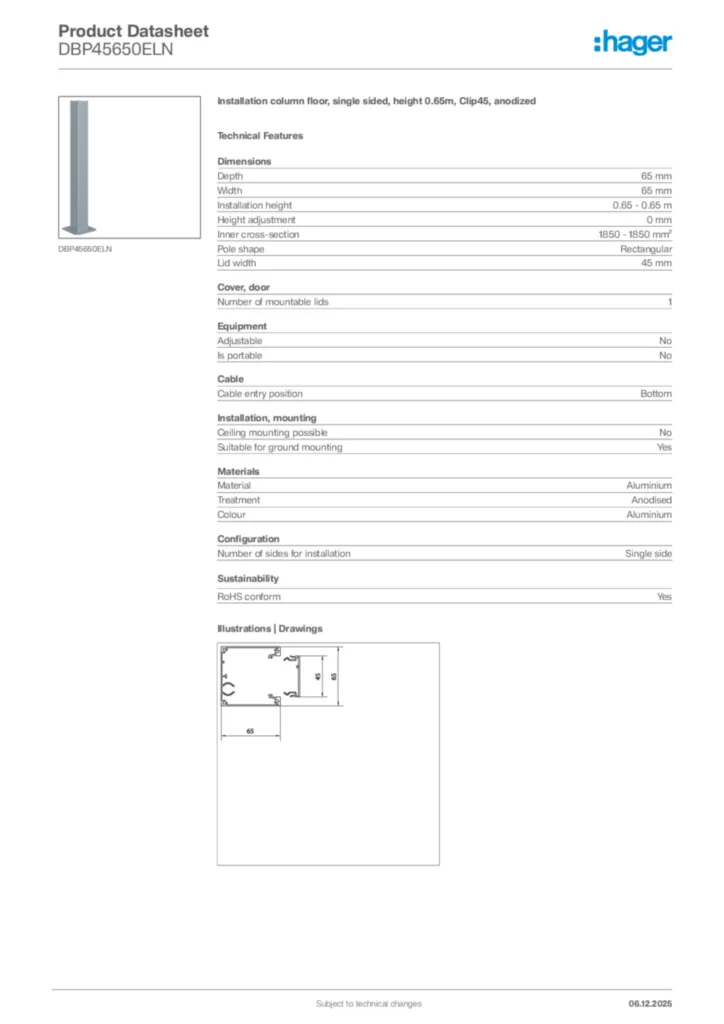

  • Product datasheet

    Image Hager Product data sheet DBP45650ELN | Hager Africa

    Hager Product data sheet DBP45650ELN

    Installation column floor, single sided, height 0.65m, Clip45, anodized

    PDF

  • Declaration of conformity

    Image EC declaration of conformity DA_DB_DE | Hager Africa

    EC declaration of conformity DA_DB_DE

    Declaration of conformity International 2017-11-20

    PDF
    133,23 kB
