Installation column floor, single sided, height 0.65m, Clip45, traffic white DBP456509016

EAN
4012740028349
Packaging
2

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Installation column floor, single sided, height 0.65m, Clip45, traffic white

DBP456509016

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Dimen­sions
  • Depth
    65 mm
  • Width
    65 mm
  • Install­a­tion height
    0.65 - 0.65 m
  • Height adjust­ment
    0
  • Inner cross-sec­tion
    1850 - 1850 mm²
  • Pole shape
    Rect­an­gular
  • Lid width
    45 mm
Cover, door
  • Number of mount­able lids
    1
Equip­ment
  • Adjustable
    No
  • Is port­able
    No
Cable
  • Cable entry posi­tion
    Bottom
Install­a­tion, mounting
  • Ceiling mounting possible
    No
  • Suit­able for ground mounting
    Yes
Mater­ials
  • Material
    Aluminium
  • Treat­ment
    Varnished
  • Colour
    Traffic white
  • RAL code
    9016
Config­ur­a­tion
  • Number of sides for install­a­tion
    Single side

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

PEP - Non-equipped service posts - series DAP45 & DAP80 & DBP45 (english)
PDF
393,82 kB
Hager REACH declaration DBP456509016
PDF
Hager RoHS report DBP456509016
PDF

Downloads

  • Image DBP456509016 | Hager Africa

    Product Image DBP456509016

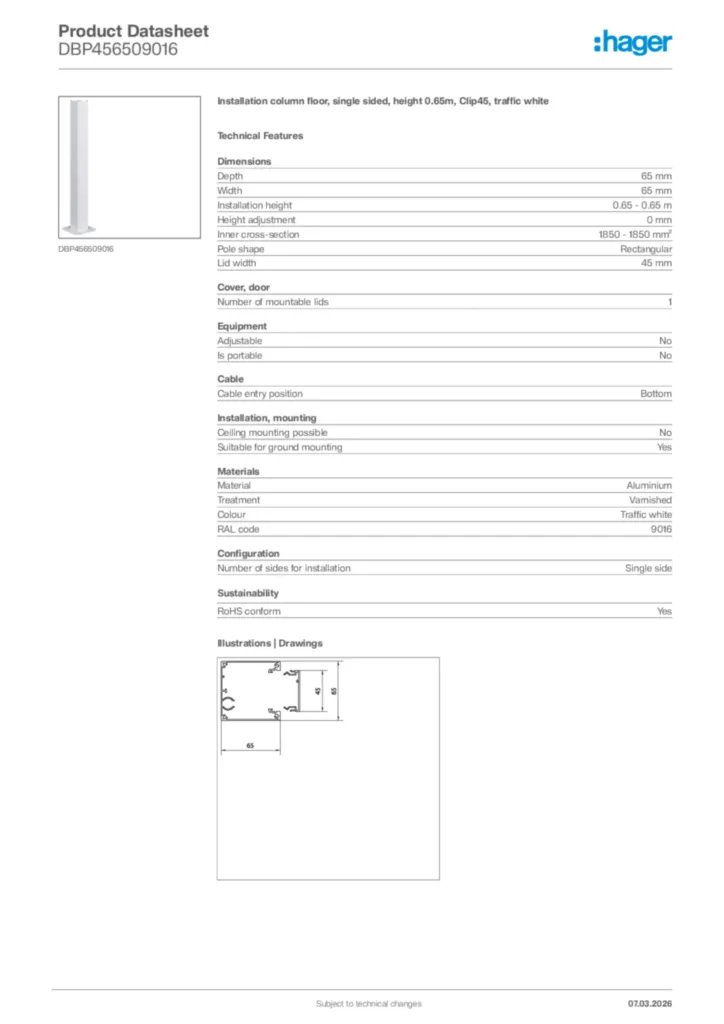

  • Product datasheet

    Image Hager Product data sheet DBP456509016 | Hager Africa

    Hager Product data sheet DBP456509016

    Installation column floor, single sided, height 0.65m, Clip45, traffic white

    PDF

  • Declaration of conformity

    Image EC declaration of conformity DA_DB_DE | Hager Africa

    EC declaration of conformity DA_DB_DE

    Declaration of conformity International 2017-11-20

    PDF
    133,23 kB
