    • Home
    • Catalog
    • Cable routing and room connec­tion systems
    • Ceiling and floor install­a­tion columns
    • Floor connec­tion columns - standard - DAP
    • DBP2456509016
    EAN
    4012740028332
    Packaging
    2
    • Floor connec­tion columns - standard - DAP

    Installation column floor, double sided, height 0.65m, Clip45, traffic white DBP2456509016

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Installation column floor, double sided, height 0.65m, Clip45, traffic white

    DBP2456509016

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimen­sions
    • Depth
      130 mm
    • Width
      65 mm
    • Install­a­tion height
      0.65 - 0.65 m
    • Height adjust­ment
      0
    • Inner cross-sec­tion
      4400 - 4400 mm²
    • Pole shape
      Rect­an­gular
    • Lid width
      45 mm
    Cover, door
    • Number of mount­able lids
      2
    Equip­ment
    • Adjustable
      No
    • Is port­able
      No
    Cable
    • Cable entry posi­tion
      Bottom
    Install­a­tion, mounting
    • Ceiling mounting possible
      No
    • Suit­able for ground mounting
      Yes
    Mater­ials
    • Material
      Aluminium
    • Treat­ment
      Varnished
    • Colour
      Traffic white
    • RAL code
      9016
    Config­ur­a­tion
    • Number of sides for install­a­tion
      Double side

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Non-equipped service posts - series DAP45 & DAP80 & DBP45 (english)
    PDF
    393,82 kB
    Hager REACH declaration DBP2456509016
    PDF
    Hager RoHS report DBP2456509016
    PDF

    Downloads

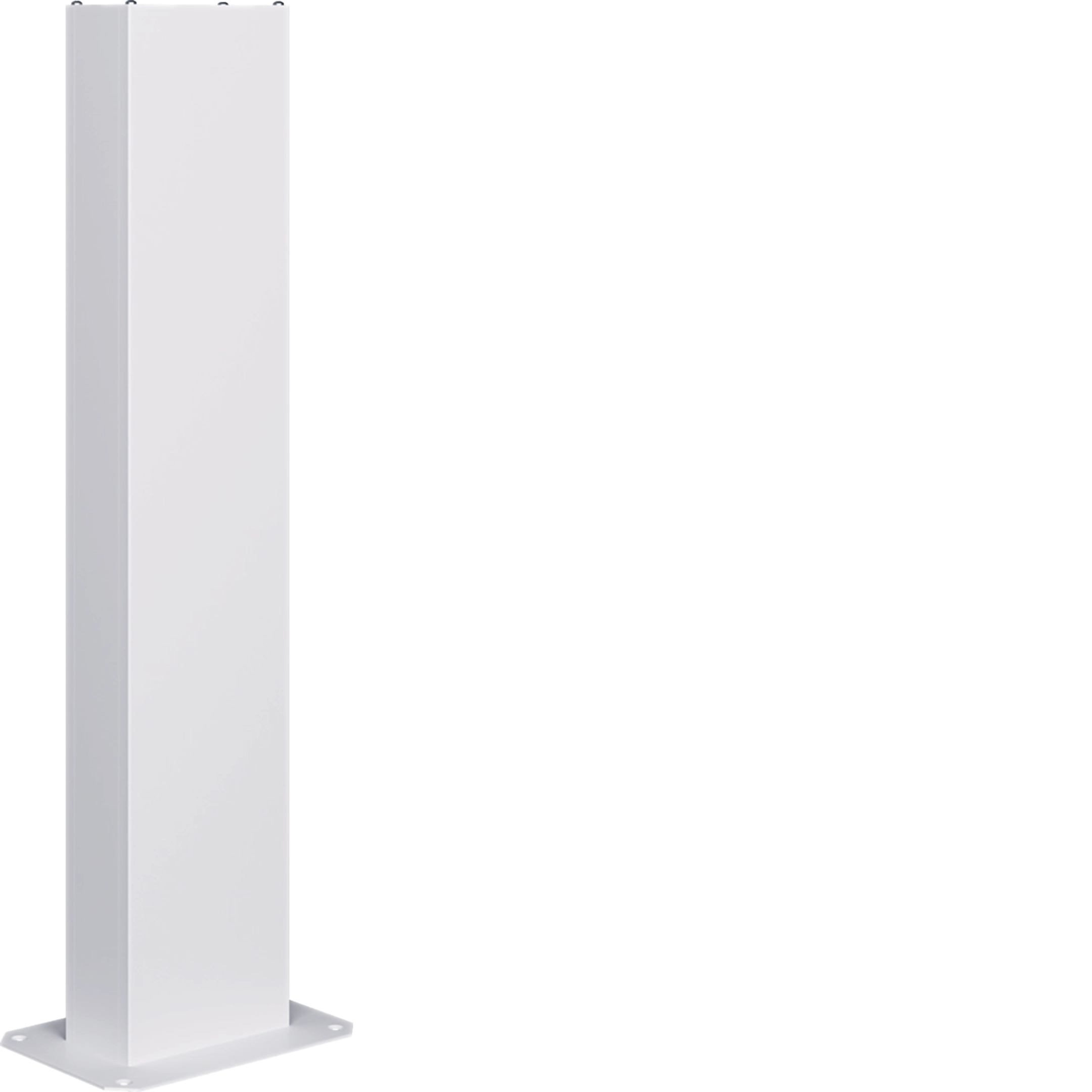

    • Image DBP2456509016 | Hager Africa

      Product Image DBP2456509016

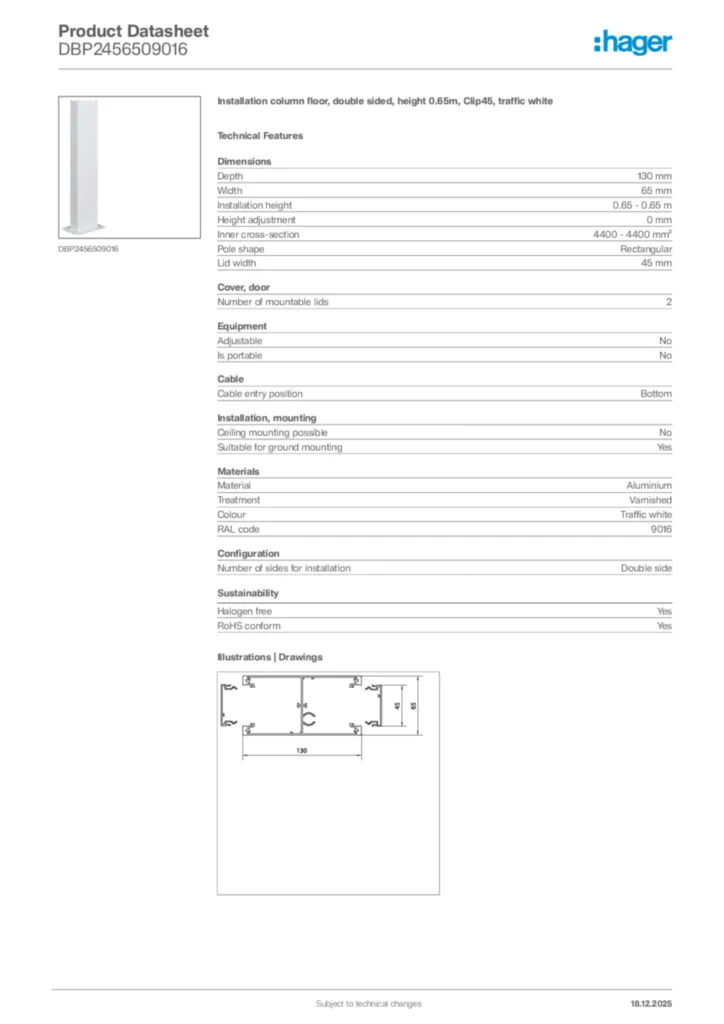

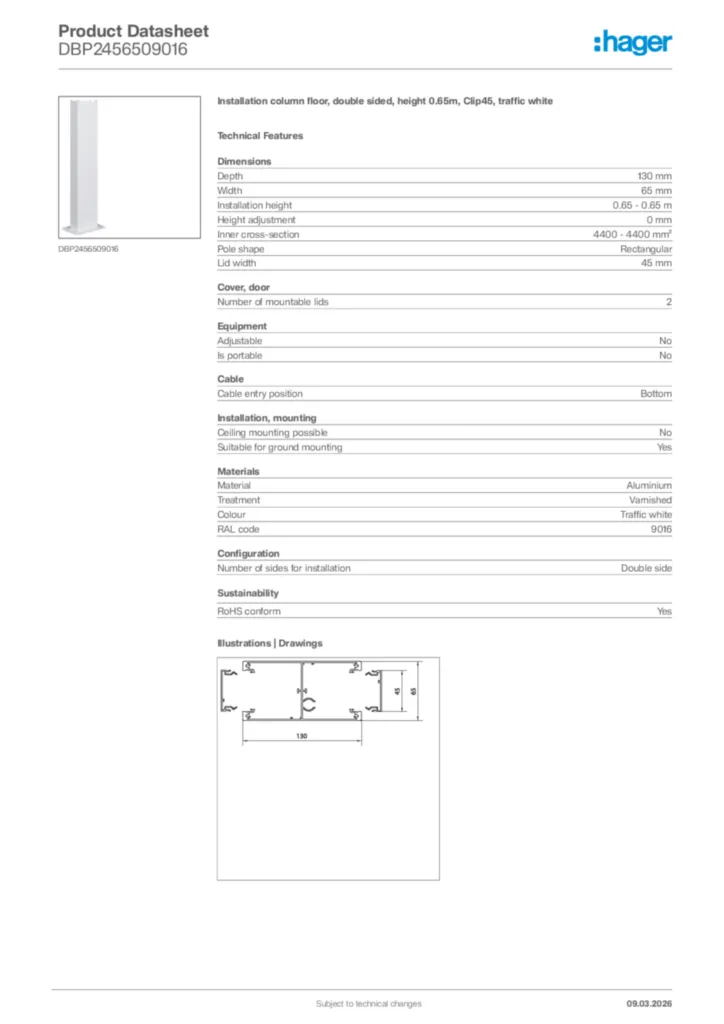

    • Product datasheet

      Image Hager Product data sheet DBP2456509016 | Hager Africa

      Hager Product data sheet DBP2456509016

      Installation column floor, double sided, height 0.65m, Clip45, traffic white

      PDF

    • Declaration of conformity

      Image EC declaration of conformity DA_DB_DE | Hager Africa

      EC declaration of conformity DA_DB_DE

      Declaration of conformity International 2017-11-20

      PDF
      133,23 kB
