The Hager Earth Leakage Add-on Block 4P 125A Type A HI adds adjustable residual current protection (300/500/1000 mA) to 4-pole breakers for three-phase+neutral circuits. High immunity reduces nuisance tripping, ideal for commercial/industrial boards. 6 modules, screw terminals, 50 Hz. Ratings: Ui 500 V, Uimp 6 kV. Durable: 7000 mechanical/1000 electrical operations. Aligned terminals for easy integration.

EAN

3250611500087

Packaging

1 Piece

Add-on blocks for MCB and multipolar

Additional terminal Volta 3Ph+N 63A Pure white RAL9010 17mm BTH480E

Technical properties
Environmental value
Documentations
More products

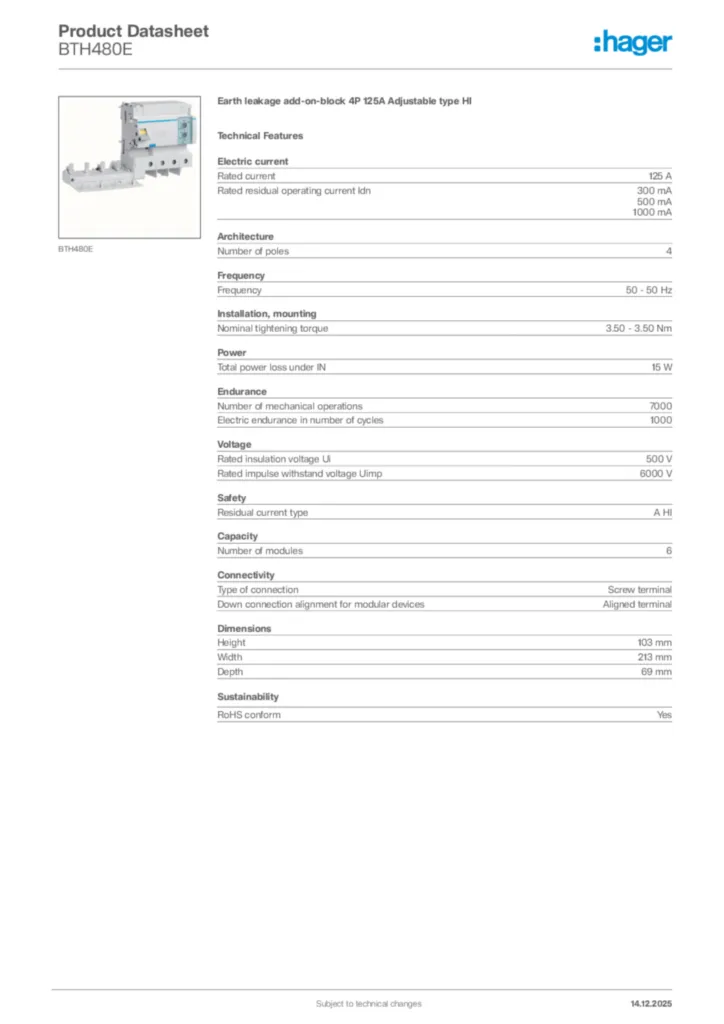

Download the data sheet

Technical properties

Rated current

125 A
Rated residual operating current Idn

300 mA, 500 mA, 1000 mA

Number of poles

4

Frequency

50 - 50 Hz

Nominal tightening torque

3.50 - 3.50 Nm

Total power loss under IN

15 W

Number of mechanical operations

7000
Electric endurance in number of cycles

1000

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Residual current type

A HI

Number of modules

6

Type of connection

Screw terminal
Down connection alignment for modular devices

Aligned terminal

Height

103 mm
Width

213 mm
Depth

69 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
