The Hager add-on residual current block 1P+N 40A 300mA AC provides earth-leakage protection when paired with compatible MCBs. Rated 40A with 300mA AC sensitivity for fire protection, it suits 230V/50Hz circuits. Two-pole with left neutral, Ui 500V and 4kV impulse withstand. Just 1 module (17.7 mm) to save space, with shifted terminals for easy alignment. Ideal for residential and light commercial panels.

EAN

3250611345732

Packaging

1 Piece

Add-on blocks for MCB and multipolar

Miniature Circuit Breaker 1P+N 32A C-curve 6kA screw terminals 1 Module BFC240F

Technical properties
Environmental value
Documentations
More products

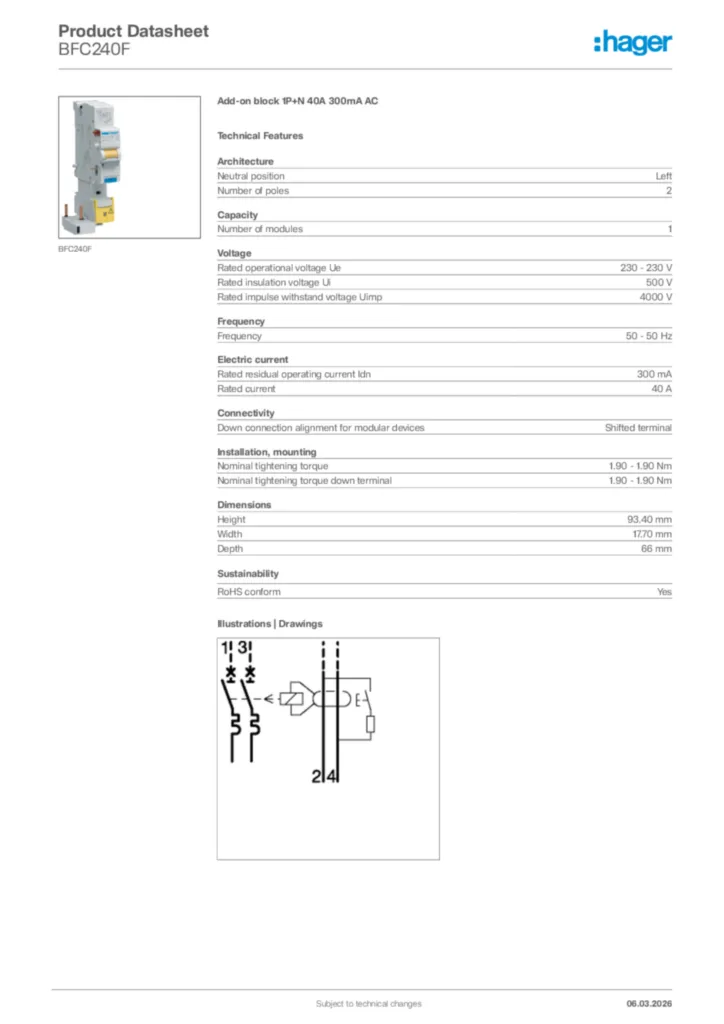

Download the data sheet

Technical properties

Neutral position

Left
Number of poles

2

Number of modules

1

Rated operational voltage Ue

230 - 230 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

300 mA
Rated current

40 A

Down connection alignment for modular devices

Shifted terminal

Nominal tightening torque

1.90 - 1.90 Nm
Nominal tightening torque down terminal

1.90 - 1.90 Nm

Height

93.40 mm
Width

17.70 mm
Depth

66 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
