Add-on block 1P+N 25A 300mA AC BFC225F
EAN
3250611345725
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 15 products available
Referenced by
-
NFT725MCB 1P+N 6/10kA C-25A 1M
-
NFT720MCB 1P+N 6/10kA C-20A 1M
-
NFT716MCB 1P+N 6/10kA C-16A 1M
-
NFT710MCB 1P+N 6/10kA C-10A 1M
-
NFT706MCB 1P+N 6/10kA C-6A 1M
-
NFT704MCB 1P+N 6/10kA C-4A 1M
-
NFT703MCB 1P+N 6/10kA C-3A 1M
-
NFT702MCB 1P+N 6/10kA C-2A 1M
-
NFT701MCB 1P+N 6/10kA C-1A 1M
-
MJT725MCB 1P+N 4.5/6kA C-25A 1M
-
MJT720MCB 1P+N 4.5/6kA C-20A 1M
-
MJT716MCB 1P+N 4.5/6kA C-16A 1M
-
MJT710MCB 1P+N 4.5/6kA C-10A 1M
-
MJT706MCB 1P+N 4.5/6kA C-6A 1M
-
MJT702MCB 1P+N 4.5/6kA C-2A 1M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles2
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current25 A
Frequency
-
Frequency50 - 50 Hz
Connectivity
-
Down connection alignment for modular devicesShifted terminal
Dimensions
-
Height93.40 mm
-
Width17.70 mm
-
Depth66 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

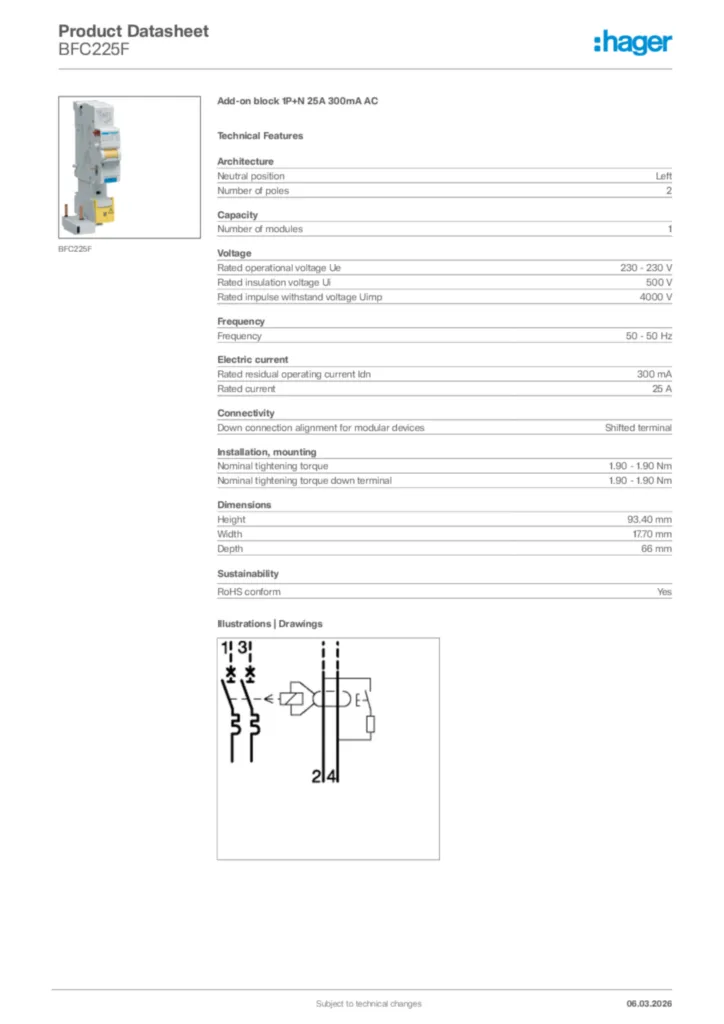

Product datasheet
undefined
PDF -
Installation manual
Installation manual fr-FR, pt-PT 2011-11-10
PDF2,72 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2018-12-21
PDF94,17 kB
