Earth leakage add-on-block 3P 125A 30mA type A HI BDH380E
EAN
3250611340041
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 17 products available
Referenced by
-
HMD399MCB 3P 15kA D-125A 4.5M
-
HMB380MCB 3P 15kA B-80A 4.5M
-
HMB390MCB 3P 15kA B-100A 4.5M
-
HMB399MCB 3P 15kA B-125A 4.5M
-
HMC380MCB 3P 15kA C-80A 4.5M
-
HMC390MCB 3P 15kA C-100A 4.5M
-
HMC399MCB 3P 15kA C-125A 4.5M
-
HMD380MCB 3P 15kA D-80A 4.5M
-
HMD390MCB 3P 15kA D-100A 4.5M
-
HMX363MCB 3P 50kA C-63A 4.5M
-
HMX310MCB 3P 50kA C-10A 4.5M
-
HMX316MCB 3P 50kA C-16A 4.5M
-
HMX320MCB 3P 50kA C-20A 4.5M
-
HMX325MCB 3P 50kA C-25A 4.5M
-
HMX332MCB 3P 50kA C-32A 4.5M
-
HMX340MCB 3P 50kA C-40A 4.5M
-
HMX350MCB 3P 50kA C-50A 4.5M
Technical properties
Electric current
-
Rated current125 A
-
Rated residual operating current Idn30 mA
Architecture
-
Number of poles3
Frequency
-
Frequency50 - 50 Hz
Installation, mounting
-
Nominal tightening torque3.50 - 3.50 Nm
Power
-
Total power loss under IN11.25 W
Endurance
-
Number of mechanical operations7000
-
Electric endurance in number of cycles1000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Safety
-
Residual current typeA HI
Capacity
-
Number of modules6
Connectivity
-
Type of connectionScrew terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height103 mm
-
Width187 mm
-
Depth69 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

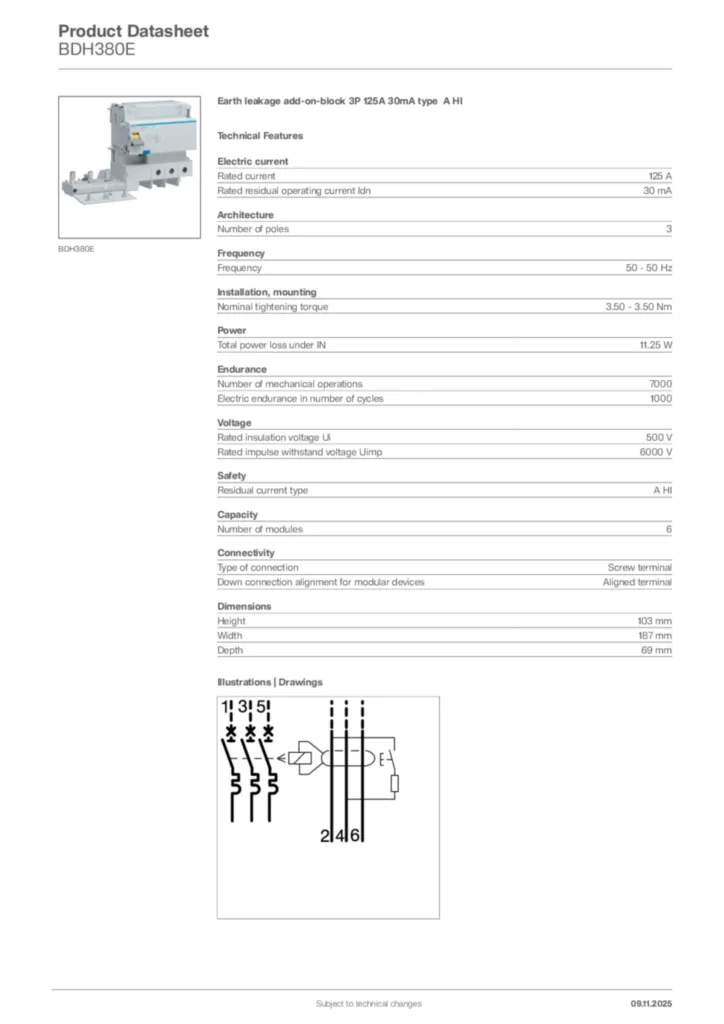

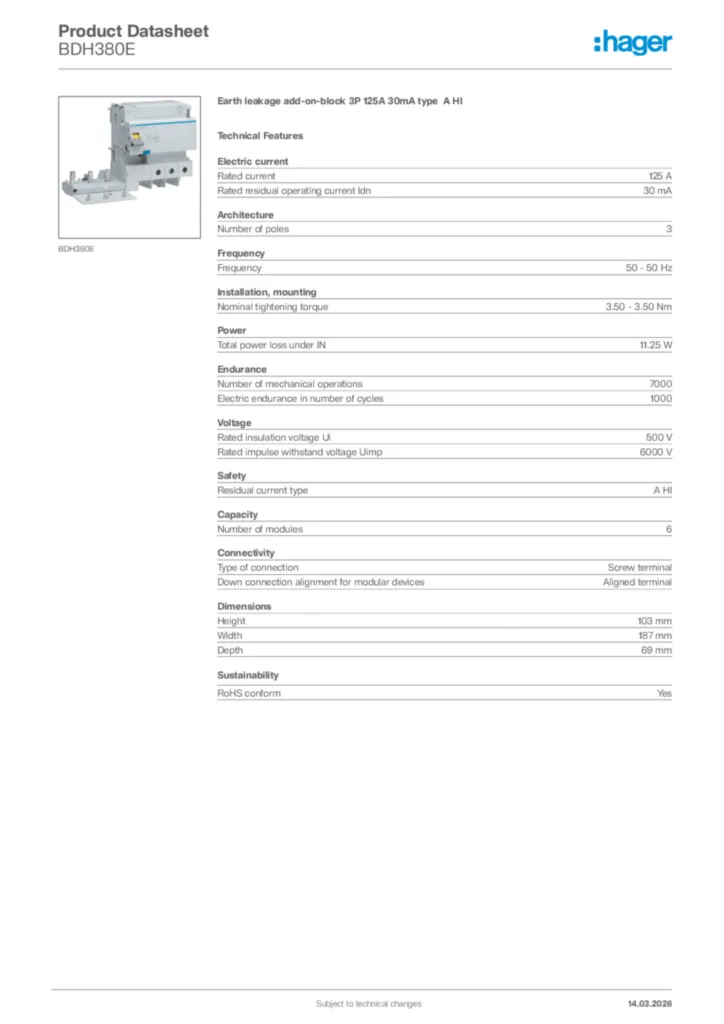

Product datasheet
