    • BDH280E
    EAN
    3250611340034
    Packaging
    1 Piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on-block 2P 125A 30mA type A HI BDH280E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on-block 2P 125A 30mA type A HI

    BDH280E

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 17 products available

    Referenced by

    • HMD299

      MCB 2P 15kA D-125A 3M
      0.00 €  / *
    • HMB280

      MCB 2P 15kA B-80A 3M
      0.00 €  / *
    • HMB290

      MCB 2P 15kA B-100A 3M
      0.00 €  / *
    • HMB299

      MCB 2P 15kA B-125A 3M
      0.00 €  / *
    • HMC280

      MCB 2P 15kA C-80A 3M
      0.00 €  / *
    • HMC290

      MCB 2P 15kA C-100A 3M
      0.00 €  / *
    • HMC299

      MCB 2P 15kA C-125A 3M
      0.00 €  / *
    • HMD280

      MCB 2P 15kA D-80A 3M
      0.00 €  / *
    • HMD290

      MCB 2P 15kA D-100A 3M
      0.00 €  / *
    • HMX263

      MCB 2P 50kA C-63A 3M
      0.00 €  / *
    • HMX210

      MCB 2P 50kA C-10A 3M
      0.00 €  / *
    • HMX216

      MCB 2P 50kA C-16A 3M
      0.00 €  / *
    • HMX220

      MCB 2P 50kA C-20A 3M
      0.00 €  / *
    • HMX225

      MCB 2P 50kA C-25A 3M
      0.00 €  / *
    • HMX232

      MCB 2P 50kA C-32A 3M
      0.00 €  / *
    • HMX240

      MCB 2P 50kA C-40A 3M
      0.00 €  / *
    • HMX250

      MCB 2P 50kA C-50A 3M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      125 A
    • Rated residual oper­ating current Idn
      30 mA
    Archi­tec­ture
    • Number of poles
      2
    Frequency
    • Frequency
      50 - 50 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3.50 - 3.50 Nm
    Power
    • Total power loss under IN
      7.50 W
    Endur­ance
    • Number of mech­an­ical oper­a­tions
      7000
    • Elec­tric endur­ance in number of cycles
      1000
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      6000 V
    Safety
    • Residual current type
      A HI
    Capa­city
    • Number of modules
      6
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      103 mm
    • Width
      160 mm
    • Depth
      69 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Add-on-block 2P 125A 30mA F (English)
    PDF
    184,86 kB
    Hager REACH declaration BDH280E
    PDF
    RoHS report BDH280E
    PDF

    Downloads

    • Image BDH280E | Hager Africa

      Product Image BDH280E

    • Product datasheet

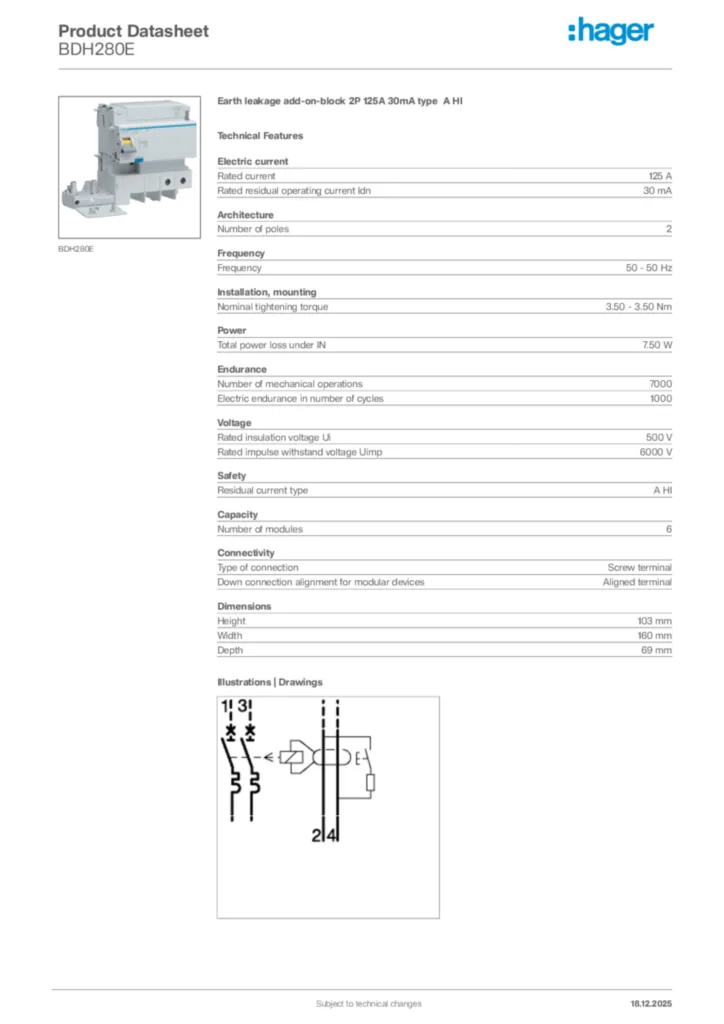

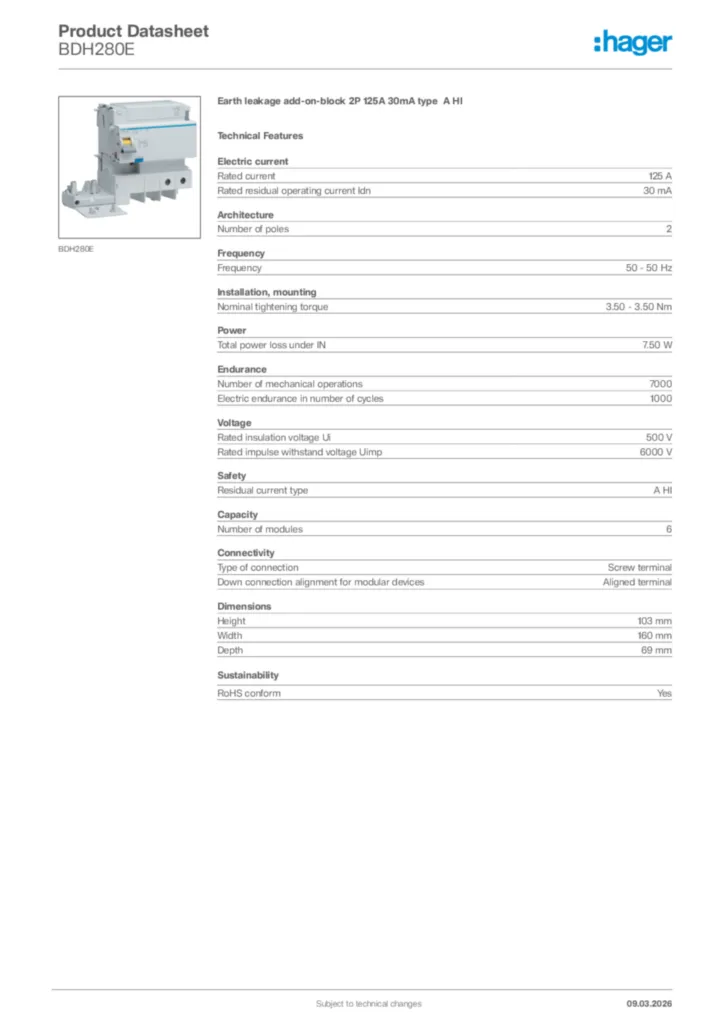

      Image Hager Product data sheet BDH280E | Hager Africa

      Hager Product data sheet BDH280E

      Earth leakage add-on-block 2P 125A 30mA type A HI

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
