Add-on block 1P+N 40A 30mA AC BDC240F
EAN
3250611345718
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 10 products available
Referenced by
-
NFT740MCB 1P+N 6/10kA C-40A 1M
-
NFT732MCB 1P+N 6/10kA C-32A 1M
-
MJT740MCB 1P+N 4.5/6kA C-40A 1M
-
MJT732MCB 1P+N 4.5/6kA C-32A 1M
-
MJT725MCB 1P+N 4.5/6kA C-25A 1M
-
MJT720MCB 1P+N 4.5/6kA C-20A 1M
-
MJT716MCB 1P+N 4.5/6kA C-16A 1M
-
MJT710MCB 1P+N 4.5/6kA C-10A 1M
-
MJT706MCB 1P+N 4.5/6kA C-6A 1M
-
MJT702MCB 1P+N 4.5/6kA C-2A 1M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles2
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current40 A
Frequency
-
Frequency50 - 50 Hz
Connectivity
-
Down connection alignment for modular devicesShifted terminal
Dimensions
-
Height93.40 mm
-
Width17.70 mm
-
Depth66 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

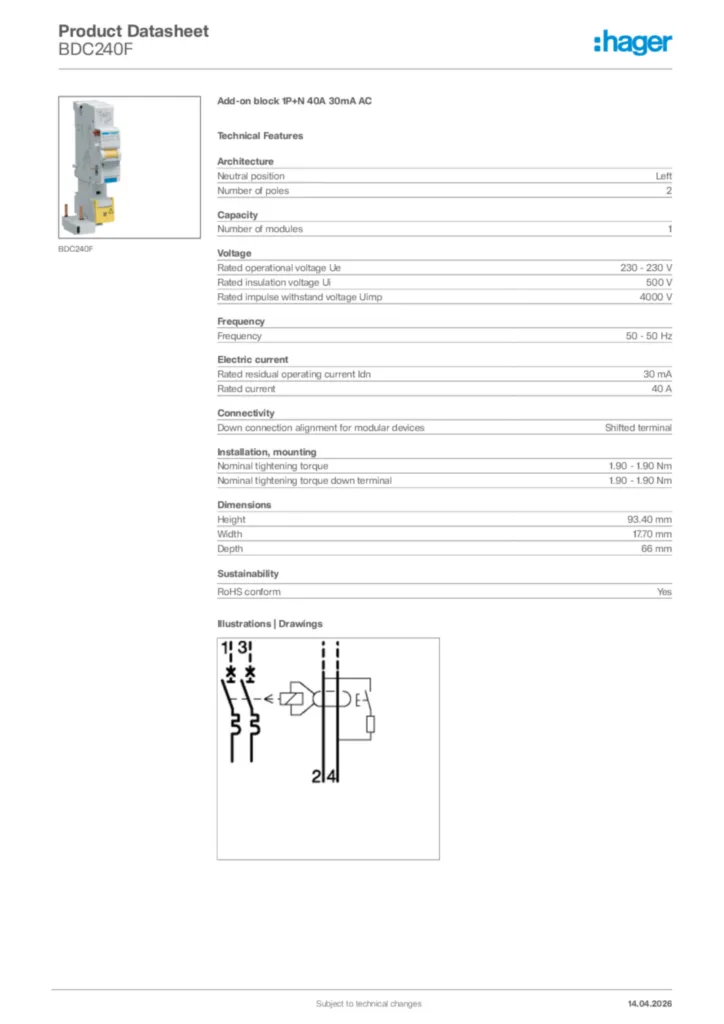

Product datasheet
