    • Home
    • Catalog
    • Modular devices
    • Modular protec­tion and accessories
    • Add-on blocks for MCB and multi­polar
    • BDC225F
    EAN
    3250611345701
    Packaging
    1 Piece
    • Add-on blocks for MCB and multi­polar

    Add-on block 1P+N 25A 30mA AC BDC225F

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Add-on block 1P+N 25A 30mA AC

    BDC225F

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 15 products available

    Referenced by

    • NFT710

      MCB 1P+N 6/10kA C-10A 1M
      0.00 €  / *

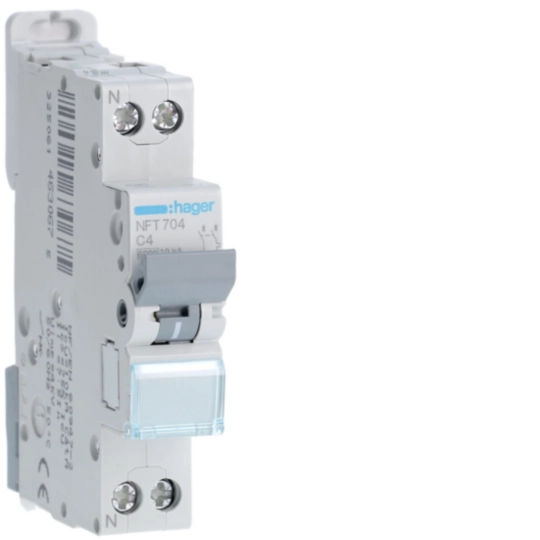

    • NFT704

      MCB 1P+N 6/10kA C-4A 1M
      0.00 €  / *
    • NFT703

      MCB 1P+N 6/10kA C-3A 1M
      0.00 €  / *
    • NFT701

      MCB 1P+N 6/10kA C-1A 1M
      0.00 €  / *
    • MJT706

      MCB 1P+N 4.5/6kA C-6A 1M
      0.00 €  / *
    • MJT716

      MCB 1P+N 4.5/6kA C-16A 1M
      0.00 €  / *
    • MJT710

      MCB 1P+N 4.5/6kA C-10A 1M
      0.00 €  / *
    • NFT716

      MCB 1P+N 6/10kA C-16A 1M
      0.00 €  / *
    • NFT706

      MCB 1P+N 6/10kA C-6A 1M
      0.00 €  / *
    • MJT720

      MCB 1P+N 4.5/6kA C-20A 1M
      0.00 €  / *
    • NFT720

      MCB 1P+N 6/10kA C-20A 1M
      0.00 €  / *
    • NFT725

      MCB 1P+N 6/10kA C-25A 1M
      0.00 €  / *

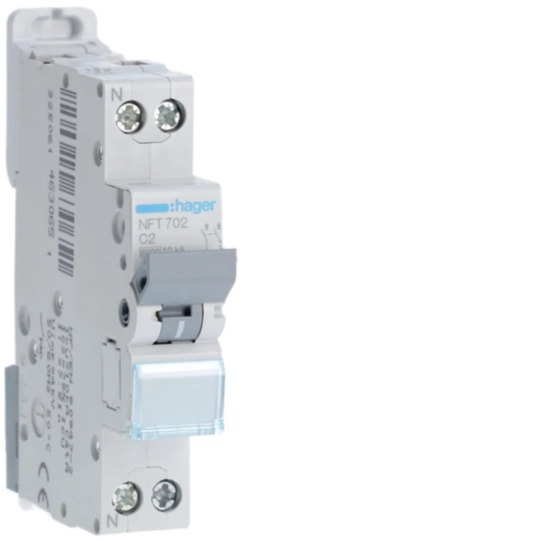

    • NFT702

      MCB 1P+N 6/10kA C-2A 1M
      0.00 €  / *
    • MJT702

      MCB 1P+N 4.5/6kA C-2A 1M
      0.00 €  / *

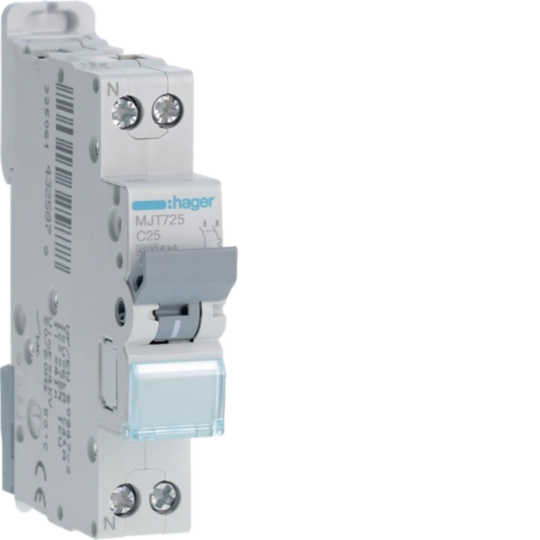

    • MJT725

      MCB 1P+N 4.5/6kA C-25A 1M
      0.00 €  / *

    Technical properties

    Archi­tec­ture
    • Neutral posi­tion
      Left
    • Number of poles
      2
    Capa­city
    • Number of modules
      1
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Elec­tric current
    • Rated residual oper­ating current Idn
      30 mA
    • Rated current
      25 A
    Connectivity
    • Down connec­tion align­ment for modular devices
      Shifted terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      1.90 - 1.90 Nm
    • Nominal tight­ening torque down terminal
      1.90 - 1.90 Nm
    Dimen­sions
    • Height
      93.40 mm
    • Width
      17.70 mm
    • Depth
      66 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration BDC225F
    PDF
    Hager RoHS report BDC225F
    PDF

    Downloads

    • Image BDC225F | Hager Africa

      Product Image BDC225F

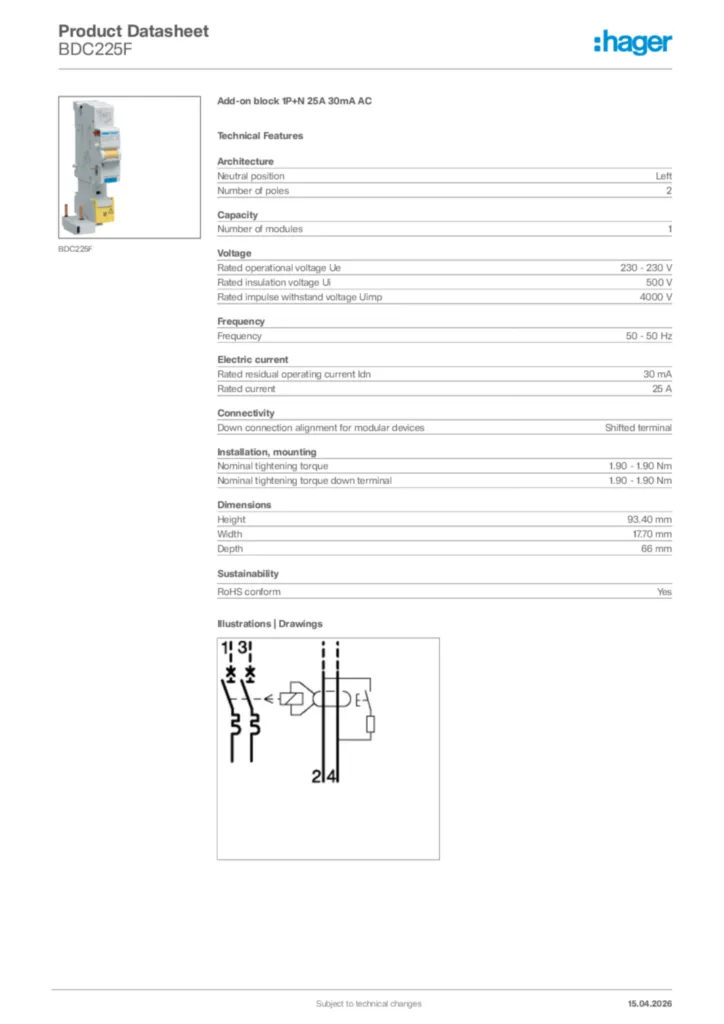

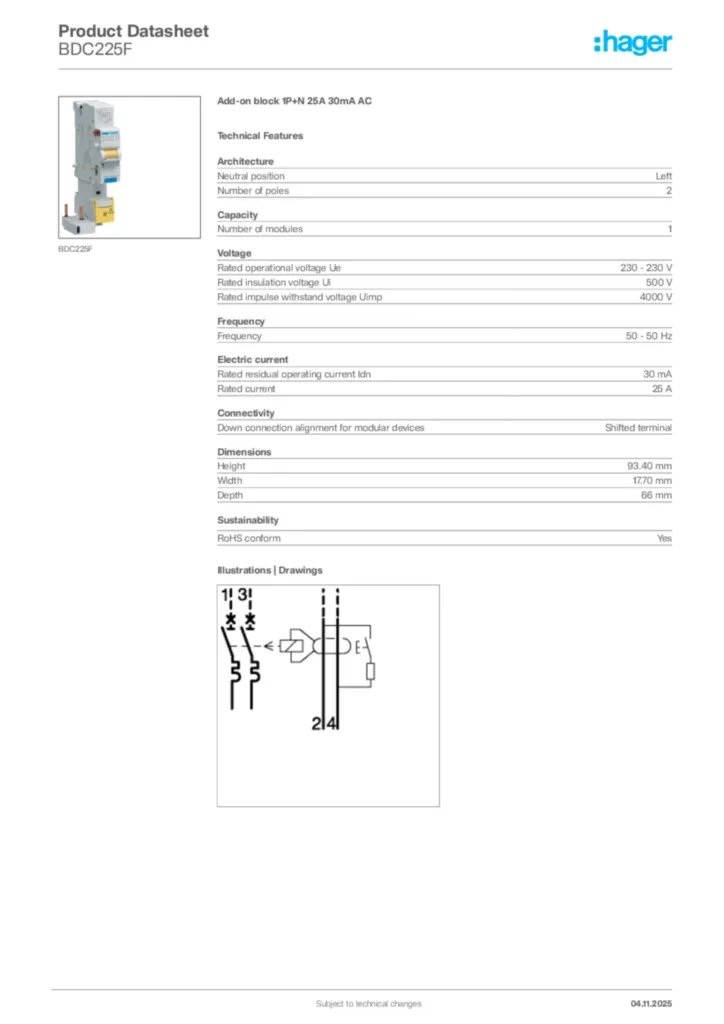

    • Product datasheet

      Image Hager Product data sheet BDC225F | Hager Africa

      Hager Product data sheet BDC225F

      Add-on block 1P+N 25A 30mA AC

      PDF

    • Installation manual

      Image Installation manual fr-FR, pt-PT 2011-11-10 | Hager Africa

      Installation manual fr-FR, pt-PT 2011-11-10

      PDF
      2,72 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2018-12-21

      PDF
      94,17 kB
