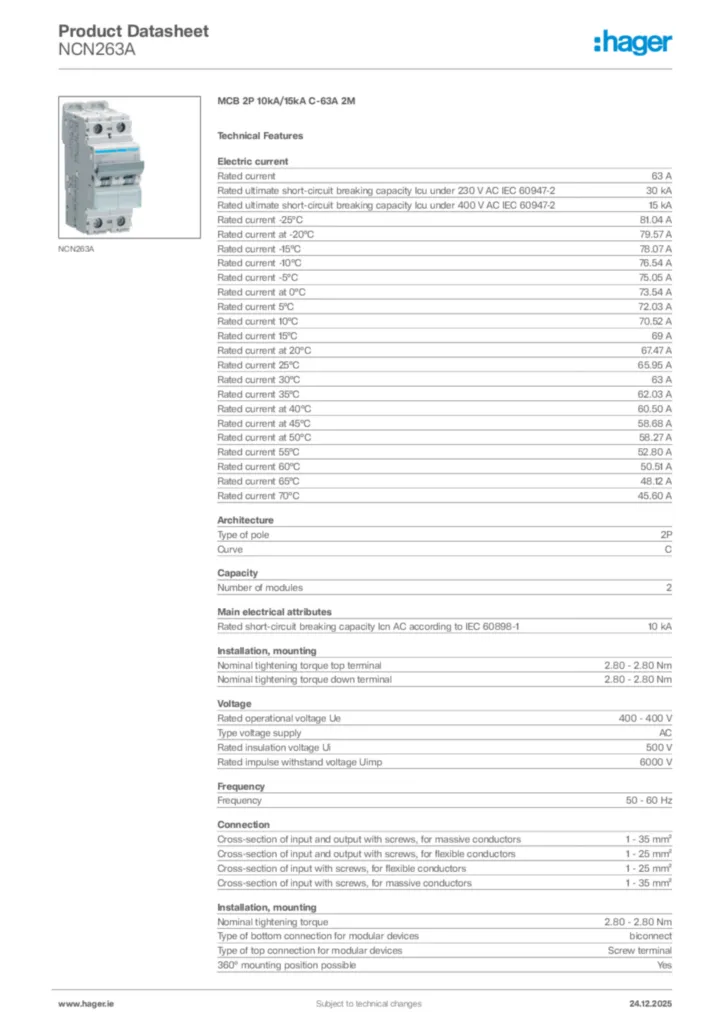

MCB 2P 10kA/15kA C-63A 2M NCN263A

product.page.accessories.title

Modular phase busbar 2 product.page.accessories.products-available
Locking interlocking functions 1 product.page.accessories.products-available
Phase separation functions 1 product.page.accessories.products-available
Terminal cover 1 product.page.accessories.products-available
Mechanic accessories for low-voltage components 1 product.page.accessories.products-available
Shunt release 1 product.page.accessories.products-available

Rated current IN

63 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

20 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current at -15°C

78.23 A
Rated current at -10°C

76.54 A
Rated current at -5°C

74.85 A
Rated current at 0°C

73.16 A
Rated current at 5°C

71.46 A
Rated current at 10°C

69.77 A
Rated current at 15°C

68.08 A
Rated current at 20°C

66.39 A
Rated current at 25°C

64.69 A
Rated current at 30°C

63 A
Rated current at 35°C

61.82 A
Rated current at 40°C

60.64 A
Rated current at 45°C

59.45 A
Rated current at 50°C

58.27 A
Rated current at 55°C

57.09 A
Rated current at 60°C

55.91 A
Rated current at 65°C

54.72 A
Rated current at 70°C

53.54 A
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1

10 kA
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

30 kA

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

RoHS conform Yes
