    Auxiliary contact 1C+1O 6A 240V AC MZ201

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Auxiliary contact 1C+1O 6A 240V AC

    MZ201

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 221 products available

    Referenced by

    • HMB390

      MCB 3P 15kA B-100A 4.5M
      0.00 €  / *
    • HMC190

      MCB 1P 15kA C-100A 1.5M
      0.00 €  / *
    • HMC180

      MCB 1P 15kA C-80A 1.5M
      0.00 €  / *
    • HMB199

      MCB 1P 15kA B-125A 1.5M
      0.00 €  / *
    • HMB190

      MCB 1P 15kA B-100A 1.5M
      0.00 €  / *
    • HMB180

      MCB 1P 15kA B-80A 1.5M
      0.00 €  / *
    • HMC199

      MCB 1P 15kA C-125A 1.5M
      0.00 €  / *
    • HMB280

      MCB 2P 15kA B-80A 3M
      0.00 €  / *
    • HMB290

      MCB 2P 15kA B-100A 3M
      0.00 €  / *
    • HMB299

      MCB 2P 15kA B-125A 3M
      0.00 €  / *
    • HMB380

      MCB 3P 15kA B-80A 4.5M
      0.00 €  / *
    • ADA506D

      RCBO 1P+N 10kA B-6A 30mA A Class
      0.00 €  / *
    • HMB399

      MCB 3P 15kA B-125A 4.5M
      0.00 €  / *
    • HMC280

      MCB 2P 15kA C-80A 3M
      0.00 €  / *
    • HMC290

      MCB 2P 15kA C-100A 3M
      0.00 €  / *
    • HMC299

      MCB 2P 15kA C-125A 3M
      0.00 €  / *
    • HMC380

      MCB 3P 15kA C-80A 4.5M
      0.00 €  / *
    • HMC390

      MCB 3P 15kA C-100A 4.5M
      0.00 €  / *
    • HMC399

      MCB 3P 15kA C-125A 4.5M
      0.00 €  / *
    • NCN206A

      MCB 2P 10kA/15kA C-6A 2M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      6 A
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Mounting type
      Click mounting
    Capa­city
    • Number of modules
      0.50
    Connec­tion
    • Type of contacts
      1NC+1NO
    • Cross-sec­tion flex­ible conductor
      6 mm²
    • Cross-sec­tion rigid conductor
      10 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      4,000 V
    • Type voltage supply
      AC
    Endur­ance
    • Number of mech­an­ical oper­a­tions
      12,000
    • Elec­tric endur­ance in number of cycles
      6,000
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 60 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Power
    • Total power loss under IN
      0.10 W
    Dimen­sions
    • Height
      80 mm
    • Width
      9.50 mm
    • Depth
      40 mm
    Equip­ment
    • Number of INV contacts
      0
    • Number of NC contacts
      1

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration MZ201
    PDF
    Hager RoHS report MZ201
    PDF

    Downloads

    • Product image

      Image MZ201 | Hager

      Product Image MZ201

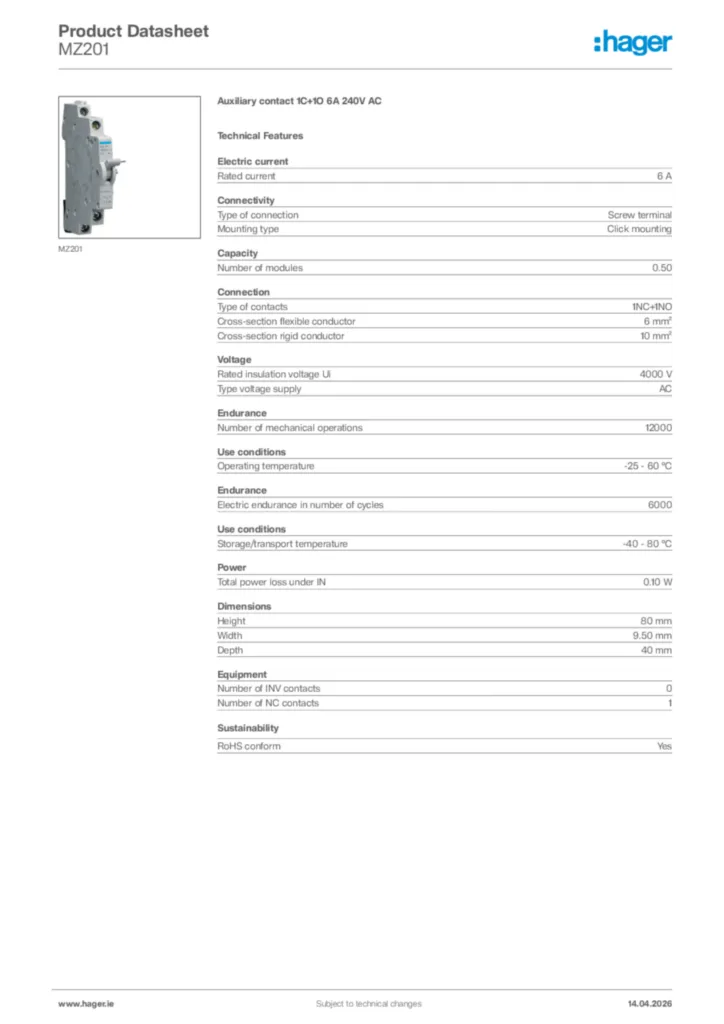

    • Product datasheet

      Image Hager Product data sheet MZ201 | Hager

      Hager Product data sheet MZ201

      Auxiliary contact 1C+1O 6A 240V AC

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-26

      PDF
      182,48 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-26

      PDF
      223,50 kB
