    • MZ203
    EAN
    3250614562037
    Packaging
    1 Piece
    • LS, FI, FI-LS, AFDD accessories

    Shunt trip 230-415V AC 110-130V DC MZ203

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Shunt trip 230-415V AC 110-130V DC

    MZ203

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Power
    • Inrush power absorbed
      15 VA
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 60 °C
    Voltage
    • Command voltage AC
      230 - 415 V
    • Command voltage DC
      110 - 130 V
    • Type voltage supply
      AC/DC
    • Rated insu­la­tion voltage Ui
      4,000 V
    • Rated oper­a­tional voltage Ue
      230 - 415 V
    • Rated oper­a­tional voltage in DC
      110 - 130 V
    Dimen­sions
    • Height
      83 mm
    • Width
      18 mm
    • Depth
      68 mm
    Capa­city
    • Number of modules
      1

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration MZ203
    PDF
    RoHS report MZ203
    PDF

    Downloads

    • Product image

      Image MZ203 | Hager

      Product Image MZ203

    • Product datasheet

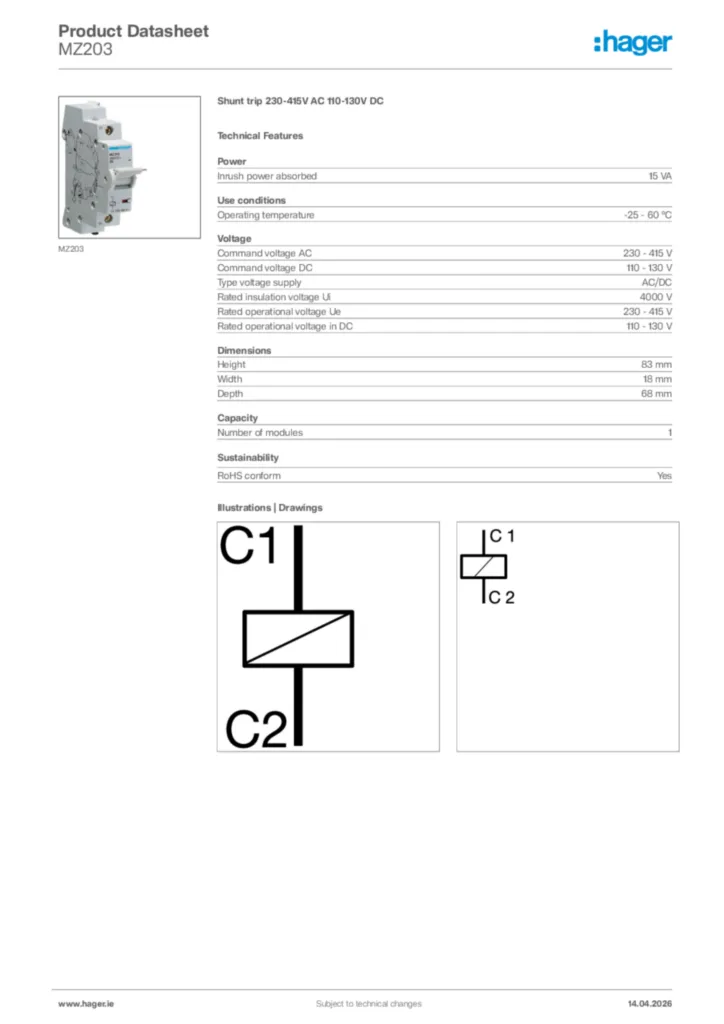

      Image Hager Product data sheet MZ203 | Hager

      Hager Product data sheet MZ203

      Shunt trip 230-415V AC 110-130V DC

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-26

      PDF
      182,48 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-04-26

      PDF
      223,50 kB
    More documentation

    Discover more of this product range

      5
    • 1
      MZN130 - Terminal cover 1P
      MZN130
      Terminal cover 1P
    • 2
      LZ060 - Heat dissipation insert
      LZ060
      Heat dissipation insert
    • 3
      KZ021 - 10 endcaps for bubar 1P
      KZ021
      10 endcaps for bubar 1P
    • 4
      MZN121 - 1 set of 3 inter-pole barriers for MCB
      MZN121
      1 set of 3 inter-pole barriers for MCB
    • 5
      MZN120 - Terminal shield / screw shield for MCB
      MZN120
      Terminal shield / screw shield for MCB
