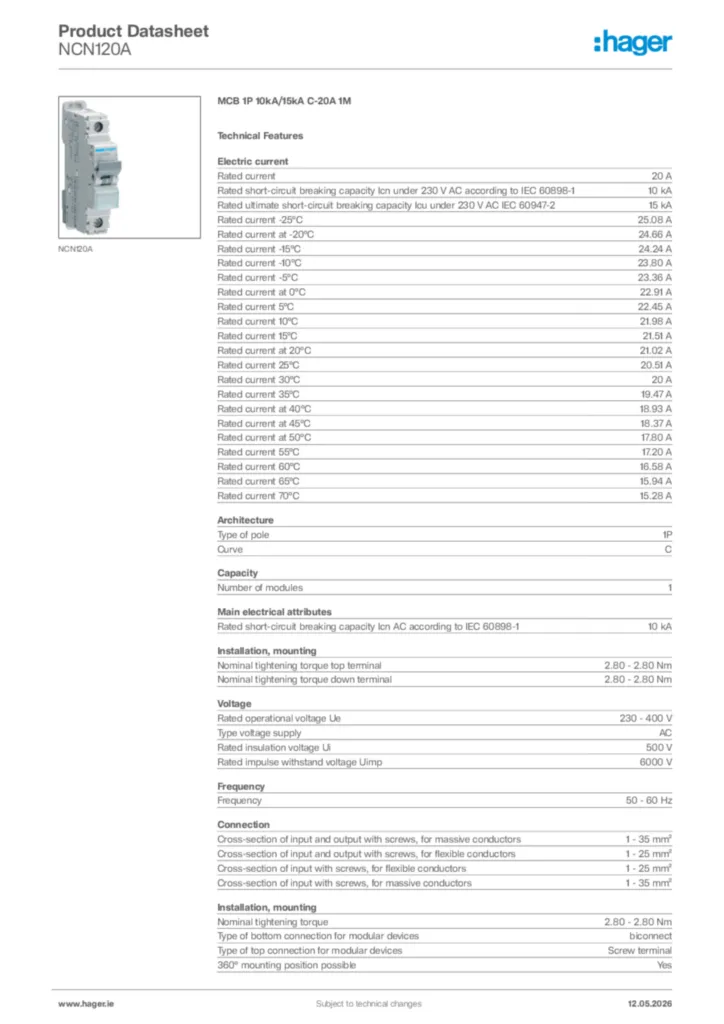

MCB 1P 10kA/15kA C-20A 1M NCN120A

product.page.accessories.title

Locking interlocking functions 1 product.page.accessories.products-available
Terminal cover 1 product.page.accessories.products-available
Mechanic accessories for low-voltage components 1 product.page.accessories.products-available
Shunt release 1 product.page.accessories.products-available
Auxiliaries contact block 2 product.page.accessories.products-available
Modular phase busbar 1 product.page.accessories.products-available

Rated current IN

20 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated current at -15°C

24.28 A
Rated current at -10°C

23.8 A
Rated current at -5°C

23.33 A
Rated current at 0°C

22.85 A
Rated current at 5°C

22.38 A
Rated current at 10°C

21.9 A
Rated current at 15°C

21.43 A
Rated current at 20°C

20.95 A
Rated current at 25°C

20.48 A
Rated current at 30°C

20 A
Rated current at 35°C

19.45 A
Rated current at 40°C

18.9 A
Rated current at 45°C

18.35 A
Rated current at 50°C

17.8 A
Rated current at 55°C

17.25 A
Rated current at 60°C

16.7 A
Rated current at 65°C

16.15 A
Rated current at 70°C

15.6 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

15 kA

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

RoHS conform Yes
