Switch h1600 3P 1250A HCF980H
EAN
3250613363253
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Handle for power circuit breaker 2 products available -
Padlock barrier for switch 1 products available -
Under voltage coil 13 products available -
Auxiliaries contact block 3 products available -
Auxiliaries interlocking cable 1 products available -
Motor operator 2 products available
Complete your system
-
HXE019H
UVR 200-240 V DC (h800-h1000-h1600)
-
HXE018HUVR 100-120 V DC (h800-h1000-h1600)
-
HXE053HUndervoltage Release delayed h800-h1600 3P 110-120VAC
-
HXF054HUndervoltage Release delayed h1600 4P 220-240VAC
-
HXF051HUndervoltage Release delayed h800-h1600 4P 24VDC
-
HXE055HUndervoltage Release delayed h800-h1600 3P 380-415VAC
-
HXF055HUndervoltage Release delayed h800-h1600 4P 380-415VAC
-
HXF053HUndervoltage Release delayed h800-h1600 4P 110-120VAC
-
HXE015HUVR 380-415V AC (h800-h1000-h1600)
-
HXE013HUVR 110-120V AC (h800-h1000-h1600)
-
HXE014HUVR 220-240V AC (h800-h1000-h1600)
-
HXE011HUVR 24V DC (h800-h1000-h1600)
-
HXE051HUndervoltage Release delayed h800-h1600 3P 24VDC
Technical properties
Electric current
-
Rated current1,250 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor3x 240 mm²
-
Cross-section flexible conductor3x 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In62.50 W
-
Total power loss under IN187.50 W
-
Rated operational power under 400 V AC AC1822,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product image
-
Product datasheet

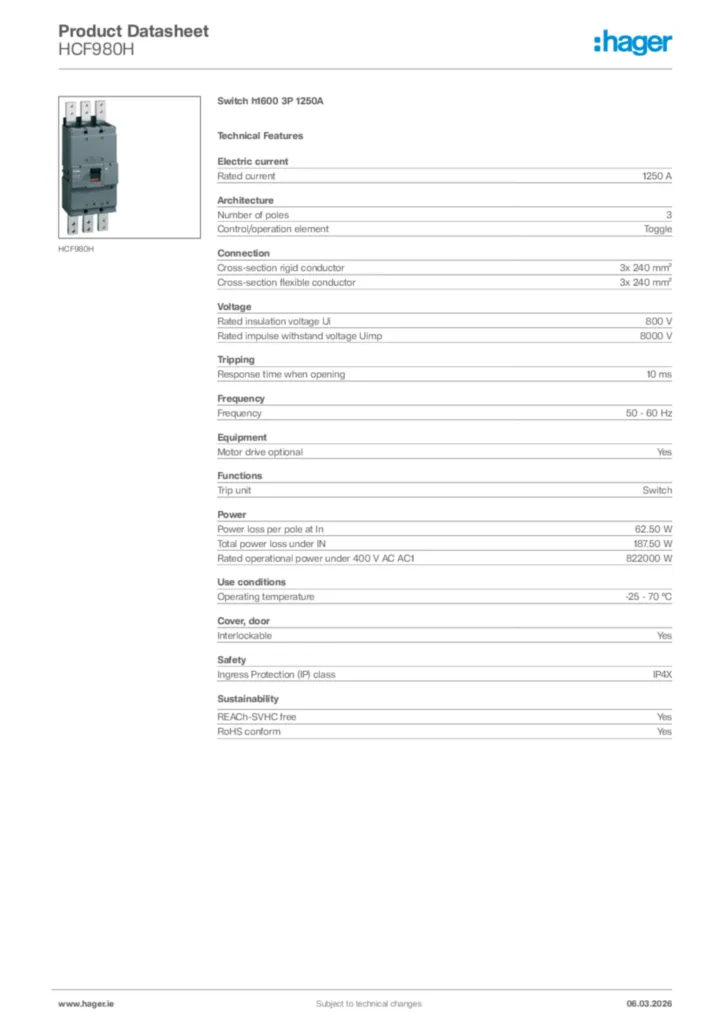

Hager Product data sheet HCF980H
