    • Switching and protective devices
    • Circuit breaker and switches
    • Non auto Moulded case circuit breaker (no trip)
    • HCA126H
    catalog.pageproduct.product.info.ean
    3250613136642
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span
    • Non auto Moulded case circuit breaker (no trip)

    Load Break Switch Disconnector h3 x160 4P 125A CTC HCA126H

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Load Break Switch Disconnector h3 x160 4P 125A CTC

    HCA126H

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (32)
    • Under voltage coil 8 product.page.accessories.products-available
    • Auxil­i­aries contact block 4 product.page.accessories.products-available
    • Shunt release 5 product.page.accessories.products-available
    • AOB MCCB type A-HI 2 product.page.accessories.products-available
    • Terminal cover 4 product.page.accessories.products-available
    • Handle for power circuit breaker 2 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Under voltage coil
    • Auxil­i­aries contact block
    • Shunt release
    • AOB MCCB type A-HI
    • Terminal cover
    • Handle for power circuit breaker
    • Connec­tion Func­tions
    • Auxil­i­aries cable adaptor
    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • DIN rail adapter
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HBA126H

      Electronic earth leakage add-on block 4P 125A Idn adjustable, time delay
      €0.00  / *
    • HBA128H

      Electronic earth leakage add-on block 4P 125A Sensitivity fix
      €0.00  / *
    • HYA028H

      Terminal cover for collar terminal x160 4P
      €0.00  / *
    • HYA026H

      Terminal cover x160 4P short
      €0.00  / *
    • HYA024H

      Terminal cover x160 4P spreader
      €0.00  / *
    • HYA022H

      Terminal cover x160 4P long
      €0.00  / *
    • HXA031H

      Extended rotary handle x160
      €0.00  / *
    • HXA030H

      Direct rotary handle x160
      €0.00  / *
    • HYA015H

      Spreader x160 4P collar
      €0.00  / *
    • HYA013H

      Extended connection x160 4P collar
      €0.00  / *
    • HYA006H

      Collar terminal x160 Al 4P
      €0.00  / *
    • HYA035H

      Connecting kit 3P/4P
      €0.00  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      €0.00  / *
    • HYA019H

      Interphase barrier x160 3/4P
      €0.00  / *
    • HYA033H

      DIN Rail adaptator x160 3P/4P
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Elec­tric current
    • Rated current IN
      125 A
    • Rated short-­time with­stand current Icw IEC 60947
      2 kA
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    Connec­tion
    • Cross-sec­tion rigid conductor
      4 - 95 mm²
    • Cross-sec­tion flex­ible conductor
      4 - 70 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      690 V
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated oper­a­tional voltage Ue
      220 - 690 V
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Trip unit
      Switch

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration HCA126H
    PDF
    RoHS report HCA126H
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div HCA126H

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

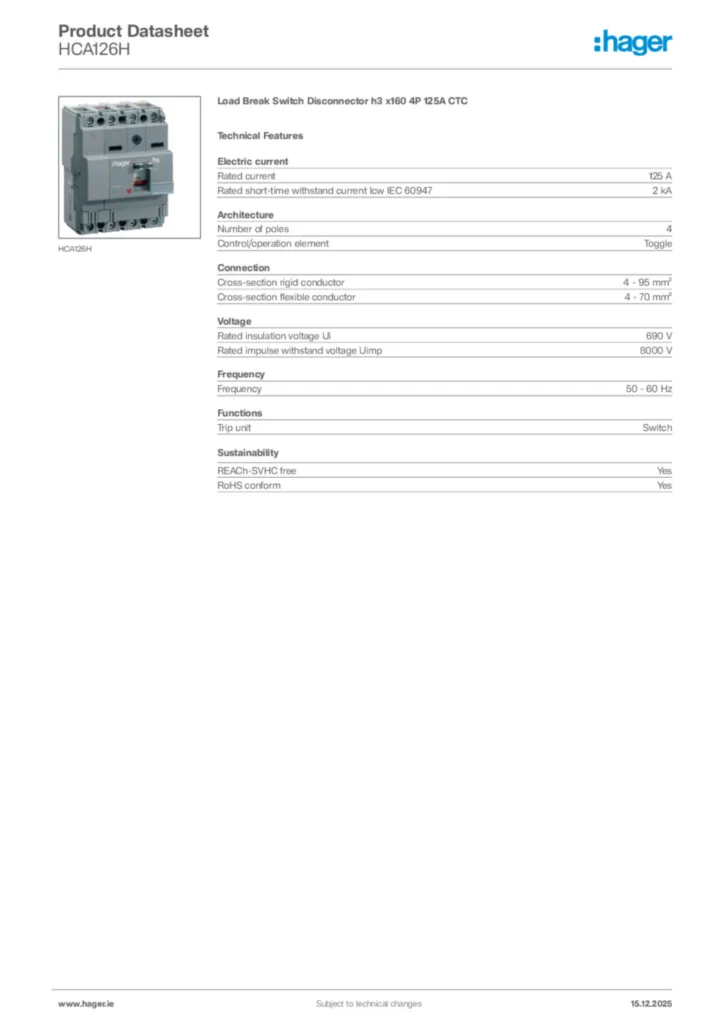

      Hager Product data sheet HCA126H

      Load Break Switch Disconnector h3 x160 4P 125A CTC

      PDF

    • ProductInstallationManual

      catalog.pagelevel.alt_image.img

      Installation manual International 2021-06-07

      PDF
      8,51 MB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration

      Declaration of conformity International 2022-03-14

      PDF
      180,02 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity en-US 2026-07-14

      PDF
      256,12 kB
